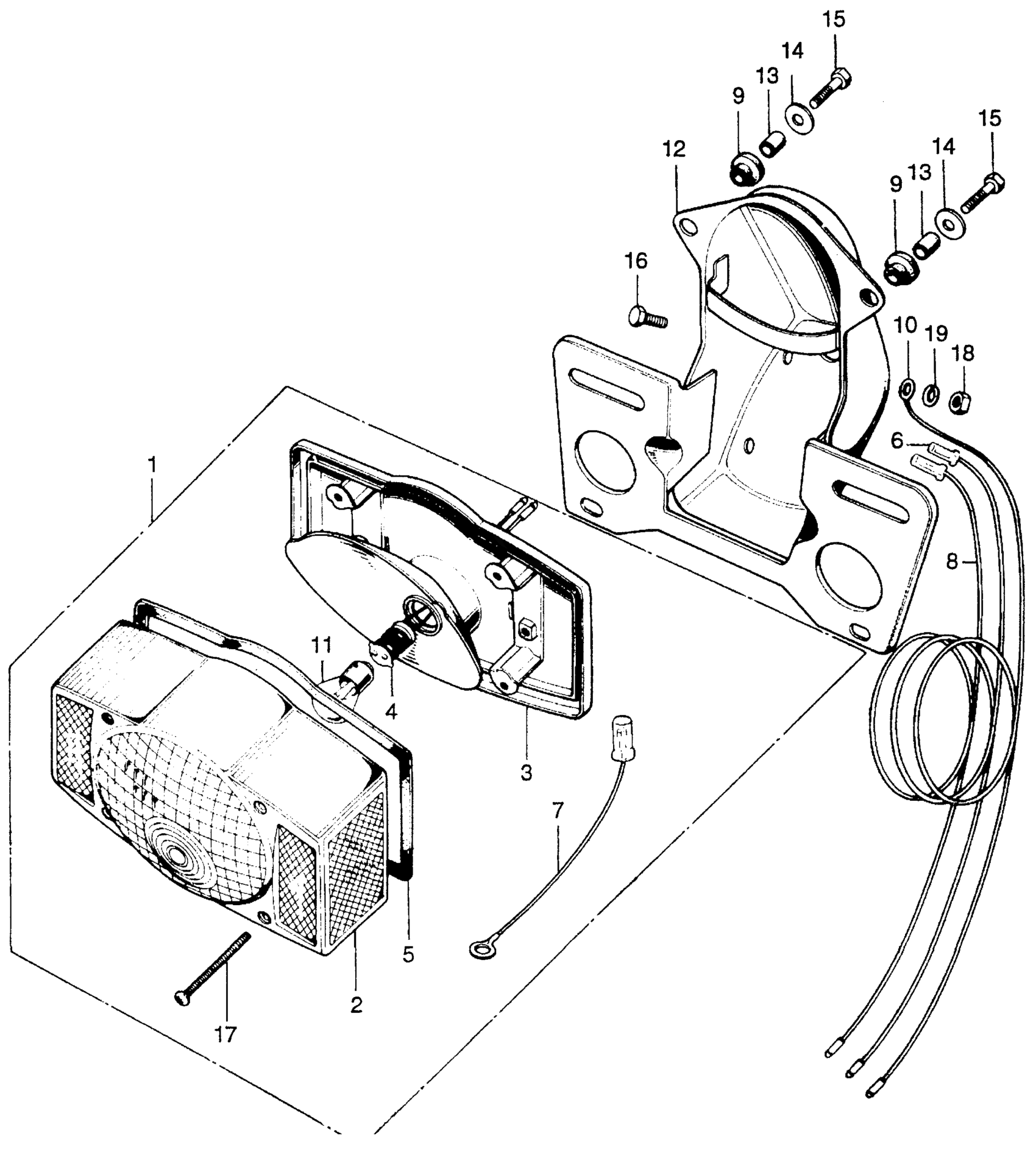

Honda CB100K2A MOTORCYCLE, JPN, VIN# CB100-1200001 TO CB100-1209410 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT (NOT AVAILABLE)

33701-098-971

Unavailable

2

LENS, TAILLIGHT

33702-341-671

Unavailable

3

BASE, TAILLIGHT (NOT AVAILABLE)

33703-341-671

Unavailable

4

WIRE, TAILLIGHT

33708-098-000

Unavailable

4

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

5

GASKET, TAILLIGHT LENS

33709-341-671

Unavailable

6

SUB-WIRE, TAILLIGHT (NOT AVAILABLE)

33711-107-670

Unavailable

7

WIRE, STOP & TAILLIGHT GROUND (NOT AVAILABLE) This part replaces 33712-098-931.

33712-098-970

Unavailable

8

SUB-WIRE, STOP LIGHT (GREEN/YELLOW) (NOT AVAILABLE)

33712-107-670

Unavailable

9

GASKET B, TAILLIGHT BASE

33719-077-671

$1.59

10

WIRE, RR. FENDER GROUND (NOT AVAILABLE)

33720-107-600

Unavailable

11

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34906-041-671.

34906-202-670

$11.50

11

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY)

34906-202-670

$11.50

11

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34906-205-222.

34906-202-670

$11.50

11

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34911-001-810.

34906-202-670

$11.50

12

BRACKET, NUMBER PLATE *NH1* (BLACK)

84700-111-971B

Unavailable

13

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

14

WASHER (20MM)

90581-310-000

$1.90

15

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

15

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

15

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

16

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

17

SCREW, PAN (4X55)

93500-04055-0B

$1.49

18

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM)

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

19

WASHER, SPRING (6MM)

94111-06000

$1.49
