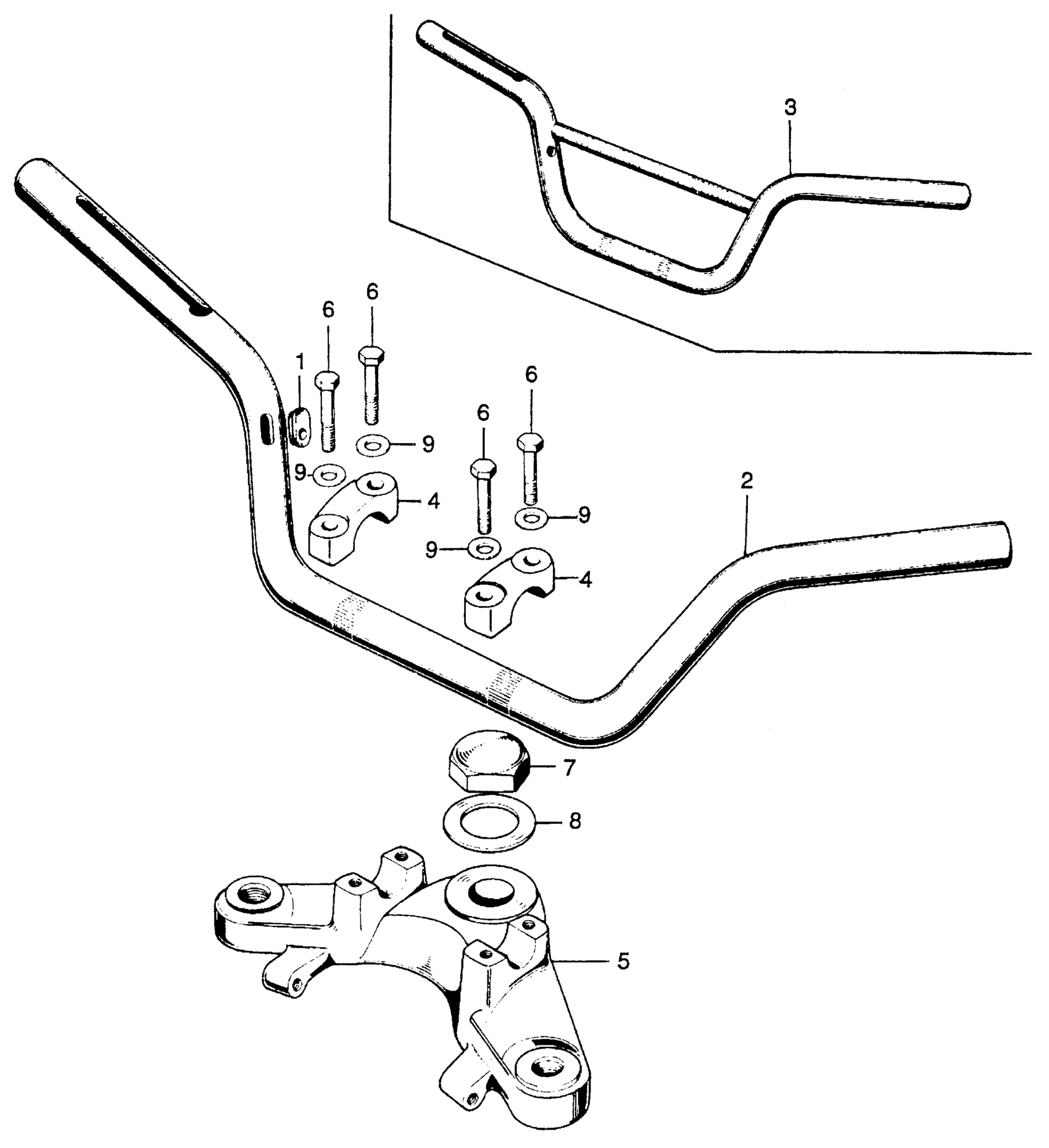

Honda CB100K2A MOTORCYCLE, JPN, VIN# CB100-1200001 TO CB100-1209410 HANDLEBAR + FORK TOP BRIDGE Diagram

#

Description

Price

1

GROMMET, THROTTLE CABLE

17911-023-000

$3.82

2

HANDLEBAR (NOT AVAILABLE)

53100-107-000

Unavailable

4

HOLDER, HANDLEBAR (UPPER)

53131-028-000

$6.32

4

HOLDER A1, HANDLEBAR (UPPER) This part replaces 95014-21100.

95014-21101

$5.88

4

HOLDER A1, HANDLEBAR (UPPER)

95014-21101

$5.88

5

BRIDGE, FORK TOP

53231-105-000

Unavailable

6

BOLT, HEX. (6X28)

90117-065-000

$2.39

7

NUT, STEERING STEM This part replaces 90304-011-000.

90304-159-000

$6.54

7

NUT, STEERING STEM

90304-159-000

$6.54

7

NUT, STEERING STEM This part replaces 95020-11100.

90304-159-000

$6.54

9

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

9

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

9

WASHER, PLAIN (6MM)

94101-06800

Unavailable
