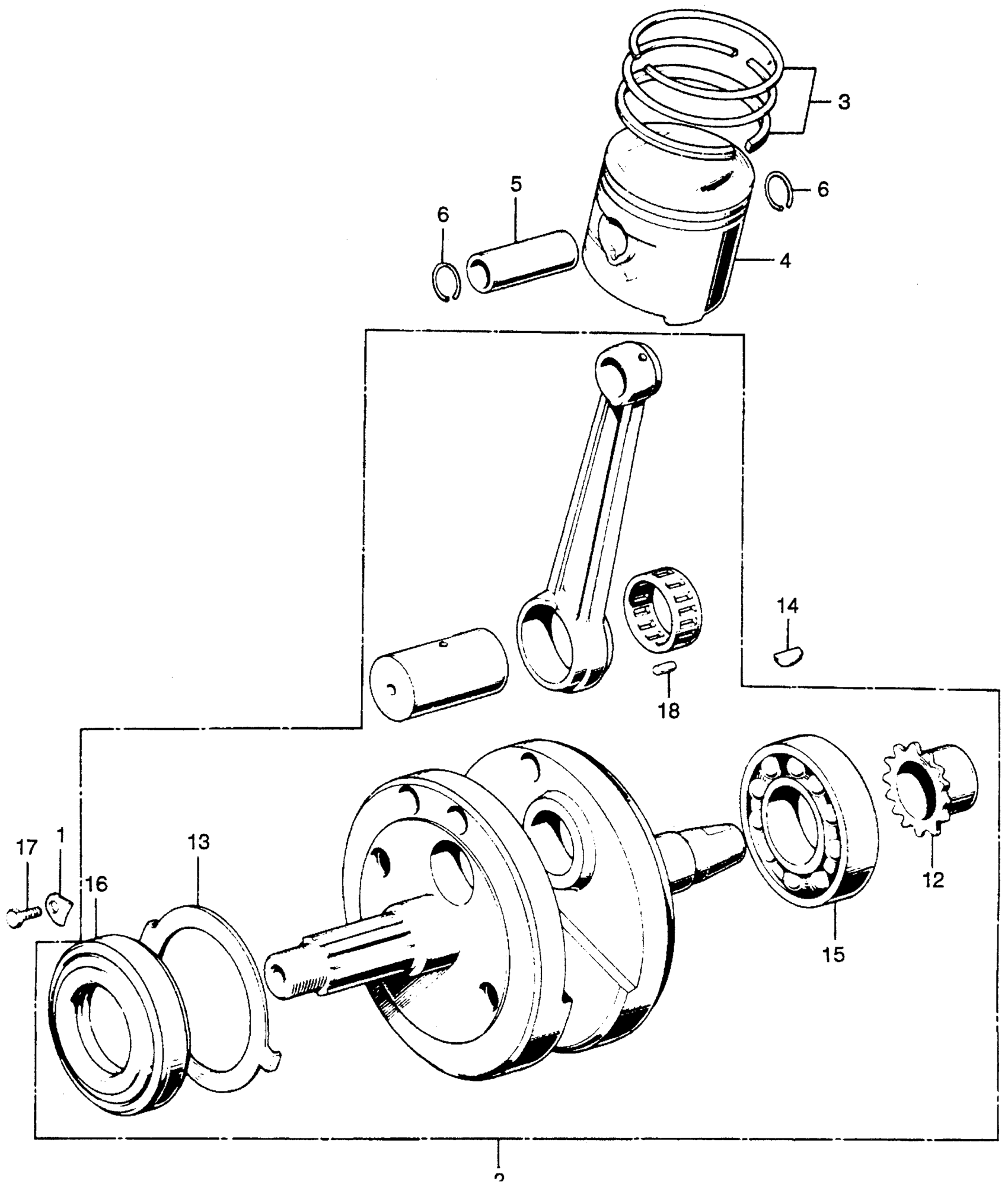

Honda CB100K2A MOTORCYCLE, JPN, VIN# CB100-1200001 TO CB100-1209410 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

PLATE, BEARING SETTING (NOT AVAILABLE)

11112-107-760

Unavailable

2

CRANKSHAFT (NOT AVAILABLE)

13000-107-760

Unavailable

3

RING SET, PISTON (STD) This part replaces 13011-107-711.

13011-107-760

Unavailable

3

RING SET, PISTON (STD)

13011-107-760

Unavailable

3

RING SET, PISTON (OS 0.25) | (Optional). This part replaces 13021-107-711.

13021-107-760

Unavailable

3

RING SET, PISTON (OS 0.25) | (Optional).

13021-107-760

Unavailable

3

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13031-107-711.

13031-107-760

$33.64

3

RING SET, PISTON (OS 0.50) | (Optional).

13031-107-760

$33.64

3

RING SET, PISTON (0.75) | (Optional). This part replaces 13041-107-711.

13041-107-760

$37.83

3

RING SET, PISTON (0.75) | (Optional).

13041-107-760

$37.83

3

RING SET, PISTON (1.00) (RIKEN) | (Optional).

13051-107-711

$26.91

3

RING SET, PISTON (1.00) | (Optional).

13051-107-760

Unavailable

4

PISTON (STD)

13101-107-760

Unavailable

4

PISTON (OS 0.25) (NOT AVAILABLE) | (Optional).

13102-107-760

Unavailable

4

PISTON (OS 0.50) (NOT AVAILABLE) | (Optional).

13103-107-760

Unavailable

4

PISTON (0.75) (NOT AVAILABLE) | (Optional).

13104-107-760

Unavailable

4

PISTON (1.00) (NOT AVAILABLE) | (Optional).

13105-107-760

Unavailable

5

PIN, PISTON

13111-028-000

$9.96

6

CLIP, PISTON PIN

13115-200-000

$0.65

6

CLIP, PISTON PIN (14MM)

94601-14000

$0.65

12

SPROCKET, TIMING (16T) This part replaces 14311-107-000.

14311-958-000

$36.86

12

SPROCKET, TIMING (16T)

14311-958-000

$36.86

13

WASHER, THRUST (30MM) (NOT AVAILABLE)

90451-324-300

Unavailable

14

KEY, WOODRUFF

90741-253-000

Unavailable

15

BEARING, RADIAL BALL (6305) (NACHI) This part replaces 91001-071-000.

91001-071-003

$41.93

15

BEARING, RADIAL BALL (6305) (NACHI)

91001-071-003

$41.93

16

BEARING, ROLLER

91011-107-760

Unavailable

17

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.29

17

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.29

17

BOLT, HEX. (6X12)

92101-06012-0A

$1.29

18

ROLLER (3X10) (NOT AVAILABLE)

96220-30100

Unavailable
