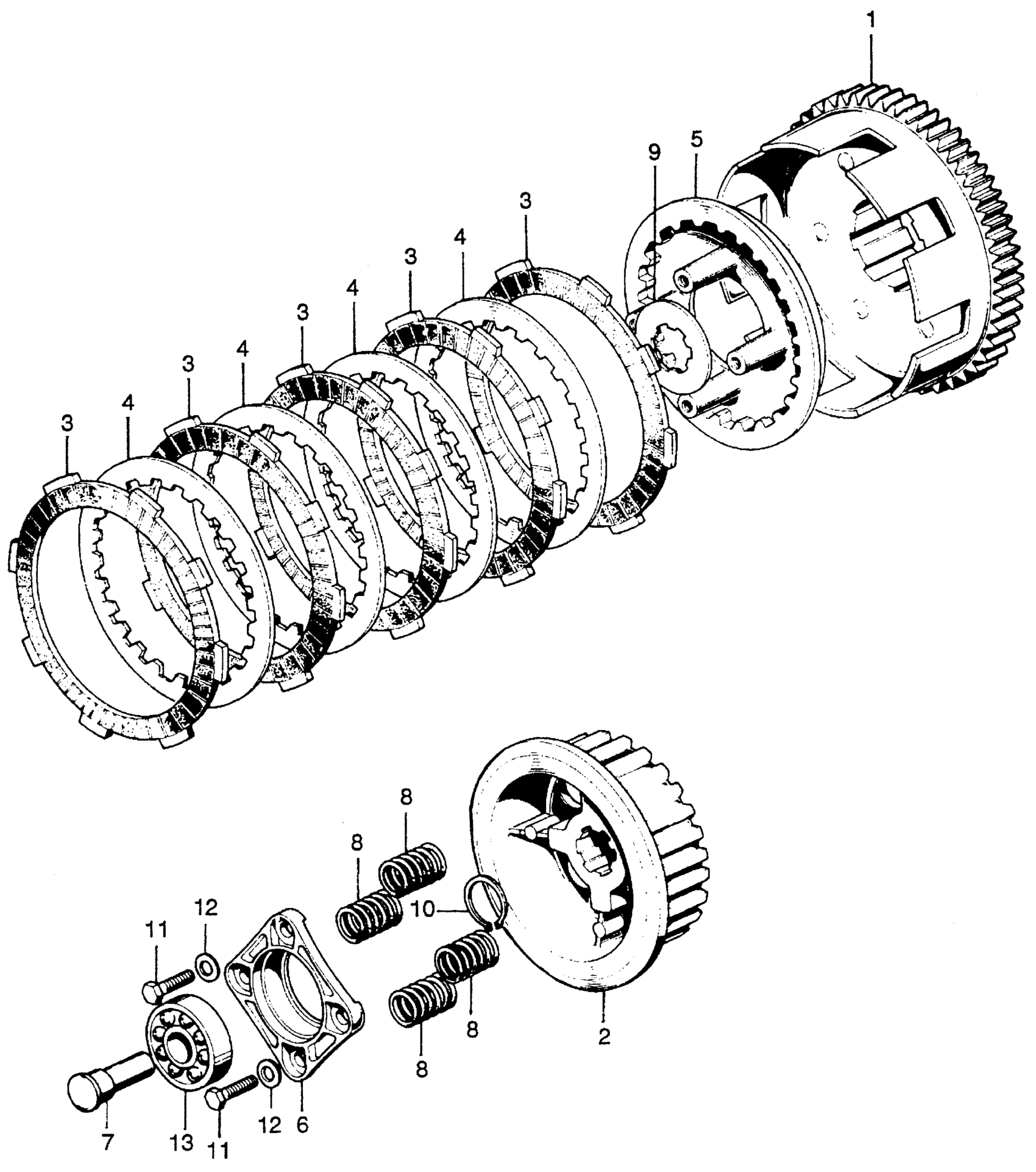

Honda CB100K2A MOTORCYCLE, JPN, VIN# CB100-1200001 TO CB100-1209410 CLUTCH Diagram

#

Description
Price

1

CLUTCH OUTER This part replaces 22100-324-000.

22100-324-505

Unavailable

2

CENTER, CLUTCH

22121-KCS-650

$34.94

2

CENTER, CLUTCH This part replaces 22121-107-010.

22121-KCS-650

$34.94

3

DISK, CLUTCH FRICTION This part replaces 22201-GF6-000.

22201-166-000

$15.68

3

DISK, CLUTCH FRICTION This part replaces 22201-KB4-670.

22201-166-000

$15.68

3

DISK, CLUTCH FRICTION This part replaces 22201-107-000.

22201-166-000

$15.68

3

DISK, CLUTCH FRICTION

22201-166-000

$15.68

4

PLATE, CLUTCH

22311-KN4-680

$5.88

4

PLATE, CLUTCH This part replaces 22311-107-000.

22311-KN4-680

$5.88

5

PLATE, CLUTCH PRESSURE This part replaces 22350-107-000.

22350-107-010

$27.75

5

PLATE, CLUTCH PRESSURE

22350-107-010

$27.75

6

PLATE, CLUTCH LIFTER

22361-107-000

$15.76

7

PIN, CLUTCH LIFTER GUIDE

22366-107-700

Unavailable

8

SPRING, CLUTCH This part replaces 22401-268-000.

95014-75140

$2.85

8

SPRING, CLUTCH

95014-75140

$2.85

9

WASHER B, SPLINE (20MM)

90461-107-000

$4.38

10

SET-RING (20MM)

90605-200-000

$2.67

11

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.48

11

BOLT, HEX. (6X25)

92101-06025-0A

$1.48

12

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

12

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

12

WASHER, PLAIN (6MM)

94101-06800

Unavailable

13

BEARING, RADIAL BALL (6001) This part replaces 96100-60010.

96100-60010-00

$7.14

13

BEARING, RADIAL BALL (6001)

96100-60010-00

$7.14
