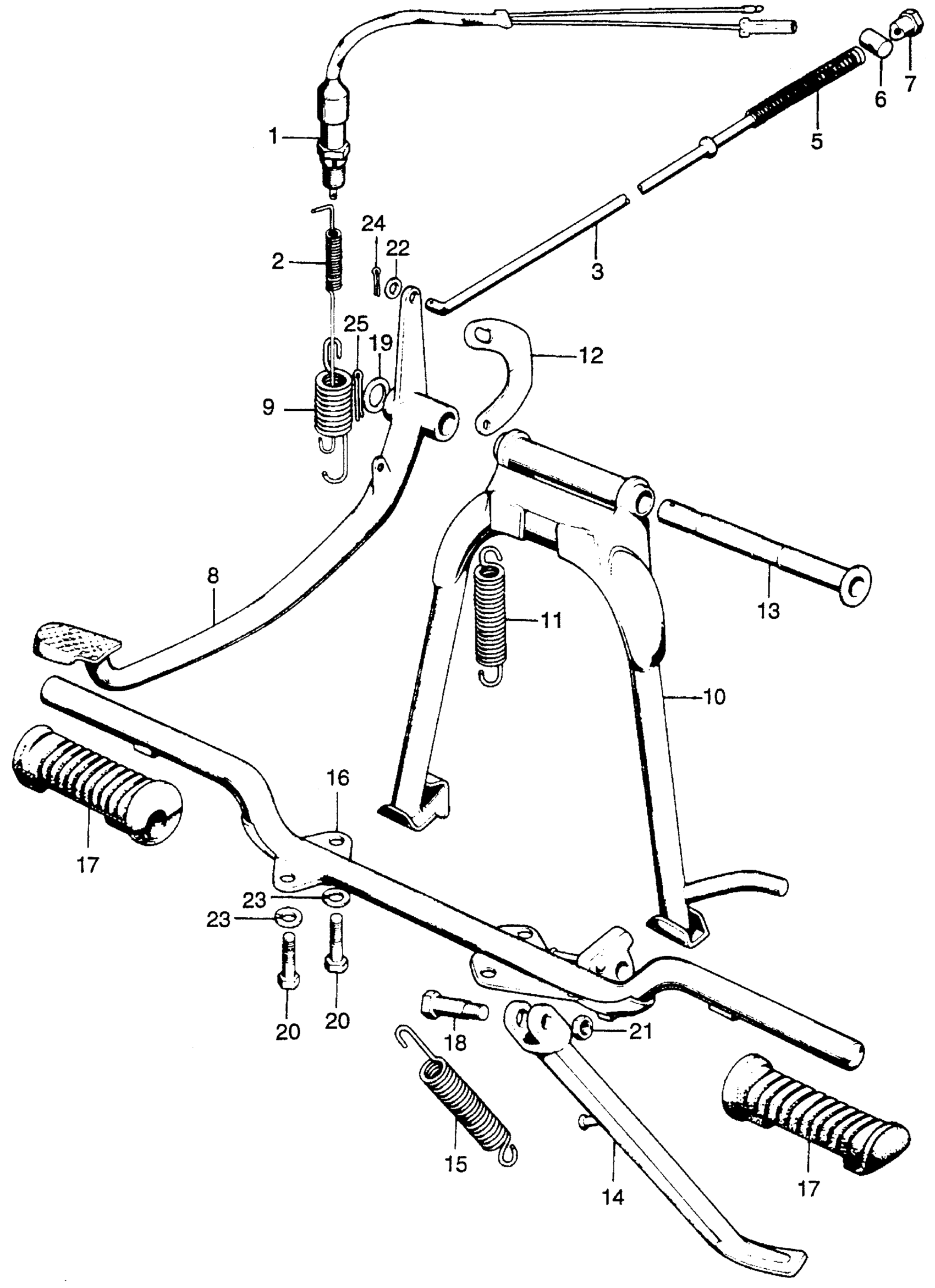

Honda CB100K2A MOTORCYCLE, JPN, VIN# CB100-1200001 TO CB100-1209410 CB100 MAIN STAND + STEP BAR K2 Diagram

#

Description
Price

1

SWITCH ASSY., RR. STOP

35350-KJ9-405

$16.97

1

SWITCH ASSY., RR. STOP This part replaces 35350-292-003.

35350-KJ9-405

$16.97

1

SWITCH ASSY., RR. STOP This part replaces 35350-336-000.

35350-KJ9-405

$16.97

2

SPRING, STOP SWITCH

35357-107-010

Unavailable

3

ROD, RR. BRAKE This part replaces 43450-041-000.

43451-397-000

$7.34

3

ROD, RR. BRAKE This part replaces 43451-041-000.

43451-397-000

$7.34

3

ROD, RR. BRAKE

43451-397-000

$7.34

5

SPRING A, BRAKE ROD This part replaces 43472-001-000.

95014-73100

$1.49

5

SPRING A, BRAKE ROD This part replaces 43472-212-000.

95014-73100

$1.49

5

SPRING A, BRAKE ROD

95014-73100

$1.49

5

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

6

JOINT A, BRAKE ARM This part replaces 45461-001-000.

95015-31001

$1.53

6

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

6

JOINT A, BRAKE ARM

95015-31001

$1.53

7

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-028-000.

95015-41000

$1.49

7

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

8

PEDAL, BRAKE

46500-107-010

Unavailable

9

SPRING, BRAKE PEDAL

46514-107-010

$5.99

10

STAND, MAIN This part replaces 50500-107-700B.

50500-108-762

Unavailable

10

STAND, MAIN This part replaces 50500-107-701.

50500-108-762

Unavailable

10

STAND, MAIN This part replaces 50500-107-702.

50500-108-762

Unavailable

10

STAND, MAIN

50500-108-762

Unavailable

11

SPRING, MAIN STAND This part replaces 50522-028-010.

95014-71202

$2.84

11

SPRING, MAIN STAND

95014-71202

$2.84

12

HOOK, MAIN STAND SPRING

50523-107-000

Unavailable

13

PIPE, MAIN STAND PIVOT This part replaces 50526-028-010.

50526-383-670

Unavailable

13

PIPE, MAIN STAND PIVOT This part replaces 50526-331-000.

50526-383-670

Unavailable

13

PIPE, MAIN STAND PIVOT

50526-383-670

Unavailable

14

BAR, SIDE STAND *NH1* (BLACK) (NOT AVAILABLE)

50530-107-700B

Unavailable

15

SPRING A, SIDE STAND This part replaces 50542-046-750.

95014-72102

$2.84

15

SPRING A, SIDE STAND This part replaces 95014-72100.

95014-72102

$2.84

15

SPRING A, SIDE STAND This part replaces 95014-72101.

95014-72102

$2.84

15

SPRING A, SIDE STAND

95014-72102

$2.84

16

BAR, STEP *NH1* (BLACK) (NOT AVAILABLE)

50610-107-690B

Unavailable

17

RUBBER, STEP

50661-110-000

$10.76

18

BOLT, SIDE STAND PIVOT

90108-223-000

$5.13

19

WASHER (17X22)

90521-028-000

$1.89

20

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

$1.62

20

BOLT, HEX. (8X20)

92101-08020-0A

$1.62

21

NUT, HEX. (10MM)

94002-10000-0S

$4.06

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

22

WASHER, PLAIN (6MM)

94101-06800

$1.49

23

WASHER, SPRING (8MM)

94111-08000

$1.49

24

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

24

PIN, COTTER (1.6X25)

94201-16250

$1.49

25

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

25

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

25

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

25

PIN, COTTER (3.0X45)

94201-30450

$1.49
