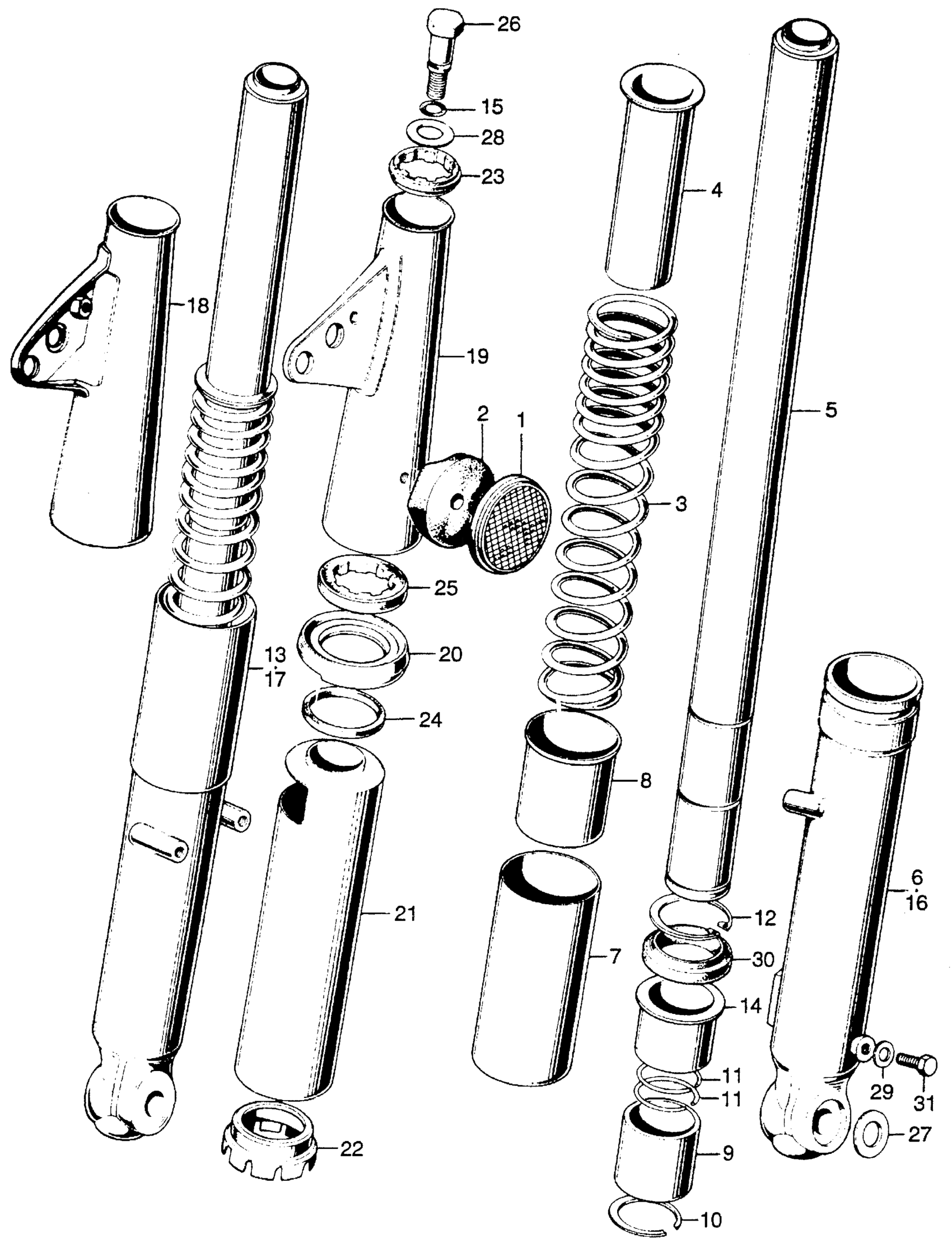

Honda CB100K2A MOTORCYCLE, JPN, VIN# CB100-1200001 TO CB100-1209410 CB100 FRONT FORK K2 Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$35.84

2

BASE, FR. REFLECTOR

33744-098-970

Unavailable

3

SPRING, FR. FORK (NOT AVAILABLE)

51401-107-000

Unavailable

4

GUIDE, FR. FORK SPRING (NOT AVAILABLE)

51409-107-000

Unavailable

5

PIPE, FR. FORK

51410-229-000

Unavailable

6

PIPE, R. FR. FORK (LOWER) This part replaces 51420-028-710.

51420-028-711

Unavailable

6

PIPE, R. FR. FORK (LOWER)

51420-028-711

Unavailable

7

COVER, CASE (LOWER) (NOT AVAILABLE)

51423-229-000

Unavailable

8

GUIDE, FR. FORK SPRING (LOWER) (NOT AVAILABLE)

51430-028-710

Unavailable

9

PISTON, FORK (27MM) This part replaces 51442-229-000.

94603-27002

Unavailable

9

PISTON, FORK (27MM)

94603-27002

Unavailable

10

RING B, SNAP (27MM) (NOT AVAILABLE) This part replaces 51445-028-000.

94580-27000

Unavailable

11

RING A, SNAP (27MM) This part replaces 51446-028-000.

94570-27000

Unavailable

11

RING A, SNAP (27MM)

94570-27000

Unavailable

12

CIRCLIP (INNER) (37MM)

51447-028-000

Unavailable

13

FORK ASSY., R. FR. (NOT AVAILABLE)

51450-107-000

Unavailable

14

GUIDE, FORK PIPE (27MM) This part replaces 51451-028-010.

94602-27201

Unavailable

14

GUIDE, FORK PIPE (27MM)

94602-27201

Unavailable

15

O-RING (8.4X2.4) This part replaces 51493-273-000.

94608-10000

$1.49

15

O-RING (8.4X2.4)

94608-10000

$1.49

16

PIPE, L. FR. FORK (LOWER) (NOT AVAILABLE) This part replaces 51520-028-710.

51520-028-711

Unavailable

16

PIPE, L. FR. FORK (LOWER) (NOT AVAILABLE)

51520-028-711

Unavailable

17

FORK ASSY., L. FR.

51550-107-000

Unavailable

18

COVER, R. FR. FORK (UPPER) *NH1* (BLACK) (NOT AVAILABLE)

51602-107-781B

Unavailable

19

COVER, L. FR. FORK (UPPER) *NH1* (BLACK)

51606-107-781B

Unavailable

20

RIB, FR. FORK

51608-229-000

Unavailable

21

COVER, R. FR. FORK (LOWER) *NH1* (BLACK) (NOT AVAILABLE)

51615-229-000B

Unavailable

22

GUIDE, FR. FORK COVER (LOWER) (NOT AVAILABLE)

51619-229-000

Unavailable

23

MOUNT, FORK COVER (UPPER)

51621-107-000

Unavailable

24

GASKET, FR. FORK RIB

51622-031-000

Unavailable

25

MOUNT, FR. FORK COVER (LOWER) (NOT AVAILABLE)

51622-107-000

Unavailable

26

BOLT B, FORK This part replaces 90123-105-000.

94605-10200

Unavailable

26

BOLT B, FORK This part replaces 90123-459-670.

94605-10200

Unavailable

26

BOLT B, FORK

94605-10200

Unavailable

27

WASHER (12.5MM)

90528-229-000

$2.02

28

WASHER, FORK BOLT (13MM) This part replaces 90537-051-000.

94606-13001

$1.49

28

WASHER, FORK BOLT (13MM) This part replaces 94606-13000.

94606-13001

$1.49

28

WASHER, FORK BOLT (13MM)

94606-13001

$1.49

29

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

30

OIL SEAL, FR. FORK

90756-028-000

$12.47

31

BOLT, HEX. (6X6) This part replaces 92000-06006.

92101-06006-0A

$1.49

31

BOLT, HEX. (6X6) This part replaces 92000-06006-0A.

92101-06006-0A

$1.49

31

BOLT, HEX. (6X6)

92101-06006-0A

$1.49
