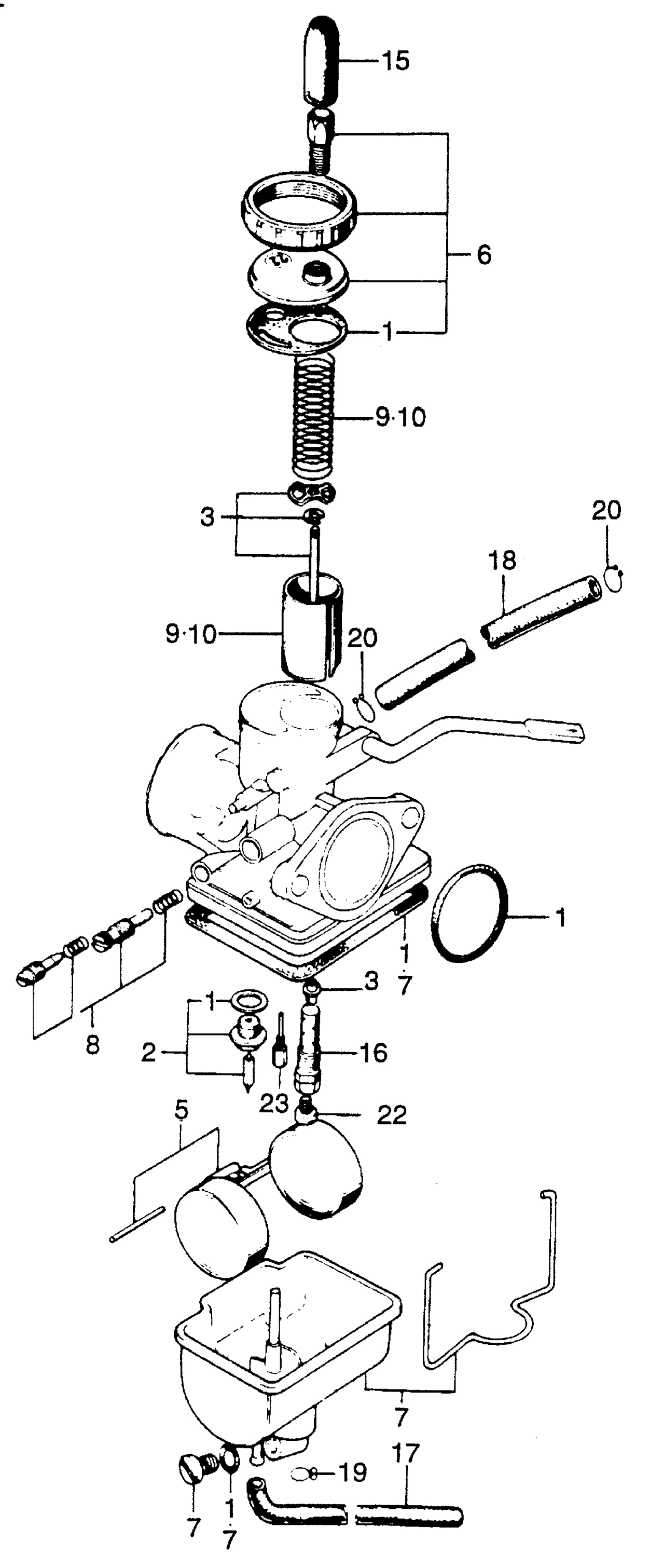

Honda CB100K2A MOTORCYCLE, JPN, VIN# CB100-1200001 TO CB100-1209410 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-107-305

$12.74

1

GASKET SET This part replaces 16010-107-710.

16010-107-305

$12.74

2

VALVE SET, FLOAT This part replaces 16011-302-004.

16011-375-004

$28.96

2

VALVE SET, FLOAT

16011-375-004

$28.96

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-107-710

Unavailable

5

FLOAT SET

16013-286-014

$32.28

6

TOP SET (NOT AVAILABLE)

16014-107-711

Unavailable

7

CHAMBER SET A, FLOAT (NOT AVAILABLE)

16015-107-710

Unavailable

8

SCREW SET A

16016-KJ2-671

Unavailable

8

SCREW SET A This part replaces 16016-035-004.

16016-KJ2-671

Unavailable

9

VALVE SET, THROTTLE

16022-107-710

Unavailable

11

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-107-760.

16100-107-761

Unavailable

11

CARBURETOR ASSY. (NOT AVAILABLE)

16100-107-761

Unavailable

15

CAP, CABLE SEALING This part replaces 16118-086-004.

16118-166-004

$8.08

15

CAP, CABLE SEALING

16118-166-004

$8.08

16

HOLDER, NEEDLE JET (NOT AVAILABLE)

16139-107-710

Unavailable

17

BULK HOSE, FUEL (3.5X3000) (3.5X330)

95001-35003-60M

$20.85

18

BULK HOSE, FUEL (4.5X3000) (4.5X140)

95001-45003-60M

$36.67

18

BULK HOSE, FUEL (4.5X3000) (4.5X150)

95001-45003-60M

$36.67

18

BULK HOSE, FUEL (4.5X3000) (4.5X200)

95001-45003-60M

$36.67

19

CLIP, TUBE (B7)

95002-02070

$1.80

20

CLIP, TUBE (B8)

95002-02080

$1.80

22

JET, MAIN (#105)

99114-246-1050

Unavailable

23

JET, SLOW (#38)

99124-077-0380

Unavailable
