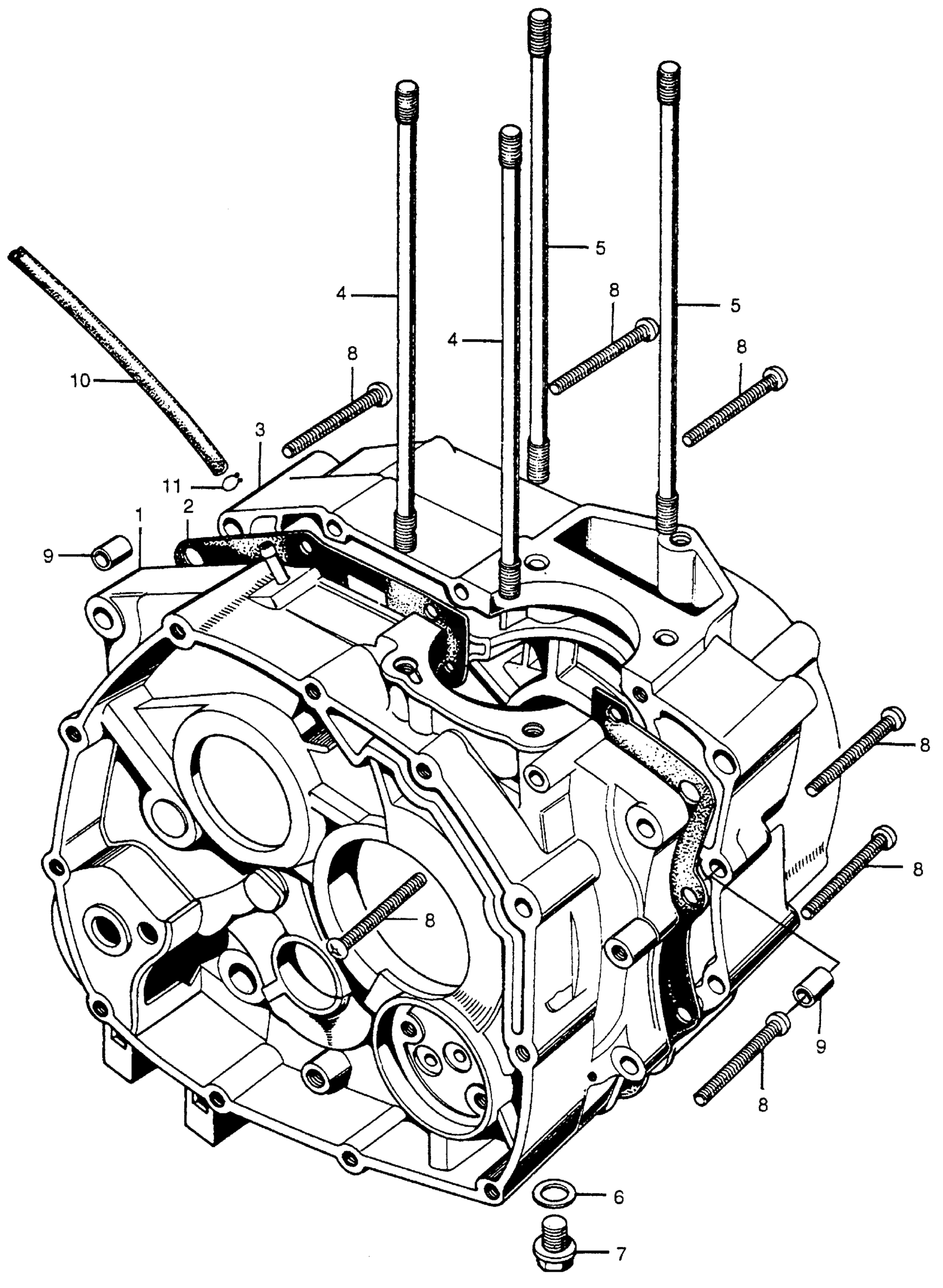

Honda CB100K1A MOTORCYCLE, JPN, VIN# CB100-200001 RIGHT & LEFT CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R. (NOT AVAILABLE) | Use from Engine SN 205001

11100-107-710

Unavailable

1

CRANKCASE, R. (NOT AVAILABLE) | Use up to Engine SN 206400

11100-107-000

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-107-000.

11191-107-306

Unavailable

2

GASKET, CRANKCASE

11191-107-306

Unavailable

3

CRANKCASE, L. (NOT AVAILABLE) | Use from Engine SN 205001

11200-107-710

Unavailable

3

CRANKCASE, L. (NOT AVAILABLE) | Use up to Engine SN 206400

11200-107-010

Unavailable

4

BOLT A, CYLINDER STUD This part replaces 90031-107-000.

90031-107-010

$9.57

4

BOLT A, CYLINDER STUD

90031-107-010

$9.57

5

BOLT B, CYLINDER STUD (NOT AVAILABLE) This part replaces 90032-107-000.

90032-107-010

Unavailable

6

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.49

6

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

7

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

8

SCREW, PAN (6X50) This part replaces 93500-06050.

93500-06050-0A

$1.49

8

SCREW, PAN (6X50)

93500-06050-0A

$1.49

9

PIN A, DOWEL (10X14)

94301-10140

$2.28

10

TUBE (5.5X350) This part replaces 15761-045-000.

95001-55000-40

Unavailable

10

TUBE (5.5X350) This part replaces 95001-50000.

95001-55000-40

Unavailable

10

TUBE (5.5X350) This part replaces 95001-50000-90.

95001-55000-40

Unavailable

10

TUBE (5.5X350) This part replaces 95001-50180.

95001-55000-40

Unavailable

10

BULK HOSE, FUEL (5.5X3000) (5.5X350)

95001-55003-60M

$47.32

11

CLIP, TUBE (C9)

95002-50000

$1.49
