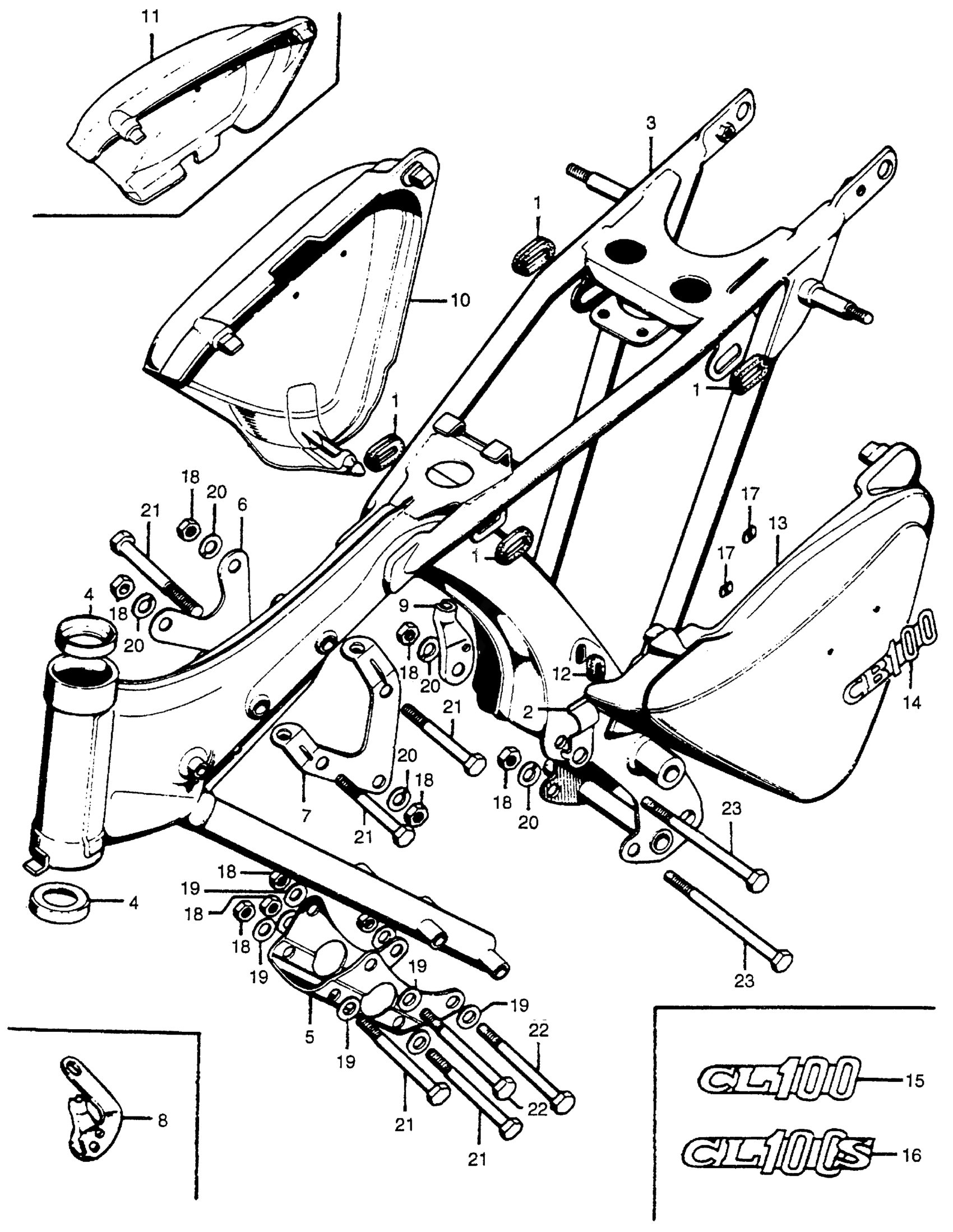

Honda CB100K1A MOTORCYCLE, JPN, VIN# CB100-200001 FRAME + SIDE COVER Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

2

CLIP, ALTERNATOR WIRE

32907-331-000

Unavailable

3

FRAME *NH1* (BLACK) | Use up to Frame SN 223920 This part replaces 50100-107-670B.

50100-107-781B

Unavailable

3

FRAME *NH1* (BLACK) | Use up to Frame SN 223920 This part replaces 50100-107-671B.

50100-107-781B

Unavailable

3

FRAME *NH1* (BLACK) | Use from Frame SN 219301 This part replaces 50100-107-671B.

50100-107-781B

Unavailable

3

FRAME *NH1* (BLACK) | Use from Frame SN 223921 This part replaces 50100-107-671B.

50100-107-781B

Unavailable

3

FRAME *NH1* (BLACK) | Use up to Frame SN 223920

50100-107-781B

Unavailable

3

FRAME *NH1* (BLACK) | Use from Frame SN 219301

50100-107-781B

Unavailable

3

FRAME *NH1* (BLACK) | Use from Frame SN 223921

50100-107-781B

Unavailable

4

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

4

RACE, STEERING TOP BALL

50301-041-010

$12.39

4

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$12.39

5

PLATE, FR. ENGINE HANGER *NH1* (BLACK)

50351-107-010B

Unavailable

6

PLATE, R. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50353-107-000

Unavailable

7

PLATE, L. ENGINE HANGER (UPPER) (NOT AVAILABLE) This part replaces 50354-107-010.

50354-330-000

Unavailable

7

PLATE, L. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50354-330-000

Unavailable

9

RECEIVER, CLUTCH CABLE (NOT AVAILABLE) | Use from Frame SN 108891

50356-107-000

Unavailable

10

COVER, R. SIDE *R4C* (CANDY RUBY RED) (NOT AVAILABLE)

83540-107-770CM

Unavailable

10

COVER, R. SIDE *Y2C* (CANDY GOLD) (NOT AVAILABLE)

83540-107-770CQ

Unavailable

10

COVER, R. SIDE *PB6M* (CRYSTAL BLUE METALLIC) (NOT AVAILABLE)

83540-107-770EW

Unavailable

12

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

13

COVER, L. SIDE *R4C* (CANDY RUBY RED) (NOT AVAILABLE)

83640-107-770CM

Unavailable

13

COVER, L. SIDE *Y2C* (CANDY GOLD) (NOT AVAILABLE)

83640-107-770CQ

Unavailable

13

COVER, L. SIDE *PB6M* (CRYSTAL BLUE METALLIC)

83640-107-770EW

Unavailable

14

EMBLEM, SIDE COVER (NOT AVAILABLE)

87128-107-770

Unavailable

17

NUT, SPEED (3MM)

90315-504-000

$3.21

18

NUT, HEX. (8MM)

94030-08000

$1.49

19

WASHER, PLAIN (8MM)

94101-08000

$1.49

20

WASHER, SPRING (8MM)

94111-08000

$1.49

21

BOLT, HEX. (8X70) This part replaces 95300-08070.

95301-08070-00

$2.47

21

BOLT, HEX. (8X70) This part replaces 95300-08070-00.

95301-08070-00

$2.47

22

BOLT, HEX. (8X90) (NOT AVAILABLE) This part replaces 95300-08090.

95300-08090-00

Unavailable

22

BOLT, HEX. (8X90) (NOT AVAILABLE)

95300-08090-00

Unavailable

23

BOLT, HEX. (8X111) This part replaces 95300-08111.

95300-08111-00

$2.92

23

BOLT, HEX. (8X111)

95300-08111-00

$2.92
