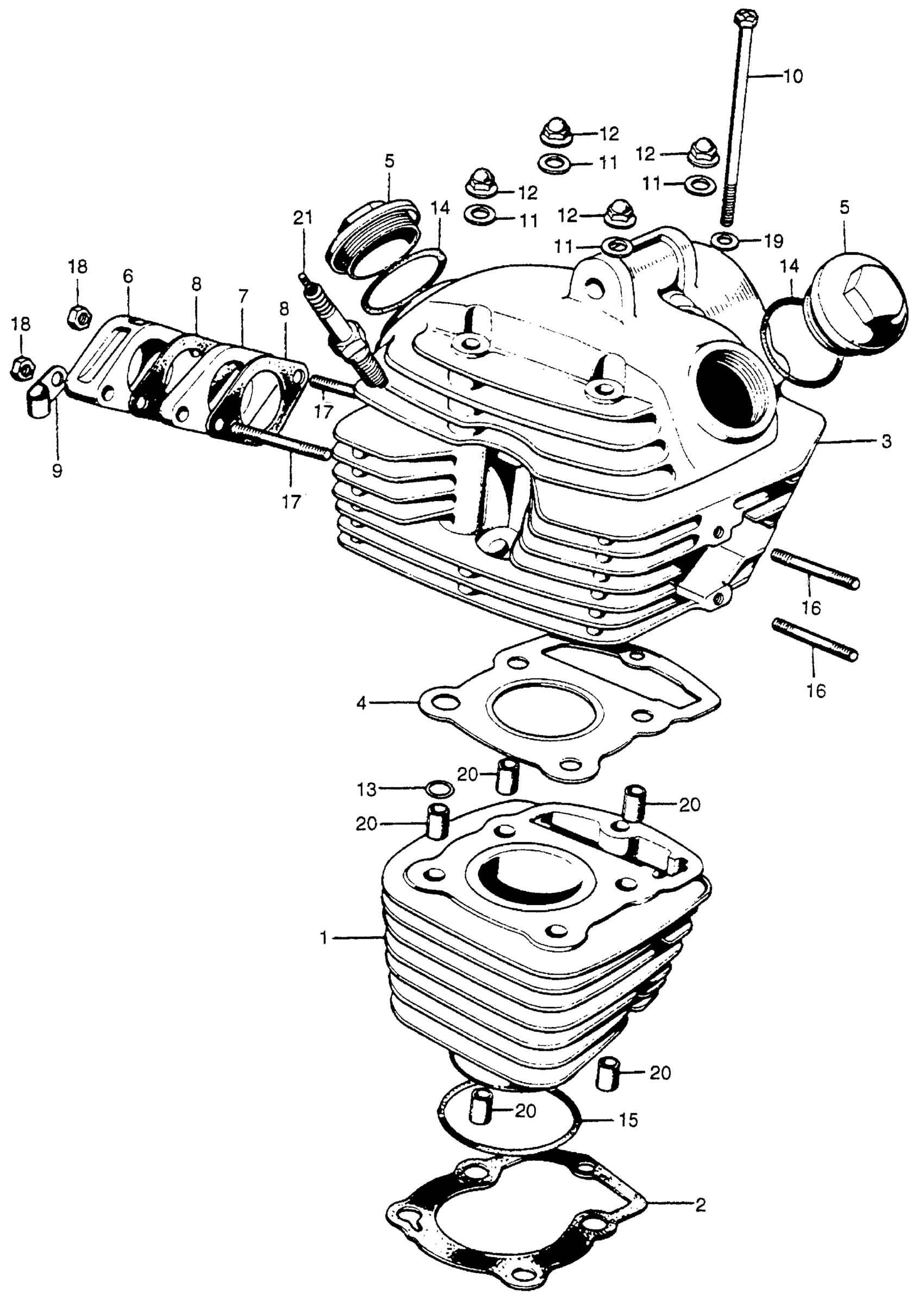

Honda CB100K1A MOTORCYCLE, JPN, VIN# CB100-200001 CYLINDER + CYLINDER HEAD + SPARK PLUG Diagram

#

Description
Price

1

CYLINDER (NOT AVAILABLE)

12100-107-710

Unavailable

2

GASKET, CYLINDER

12191-KAY-690

Unavailable

2

GASKET, CYLINDER This part replaces 12191-107-000.

12191-KAY-690

Unavailable

2

GASKET, CYLINDER This part replaces 12191-107-305.

12191-KAY-690

Unavailable

2

GASKET, CYLINDER This part replaces 12191-330-305.

12191-KAY-690

Unavailable

2

GASKET, CYLINDER This part replaces 12191-330-306.

12191-KAY-690

Unavailable

2

GASKET, CYLINDER This part replaces 12191-365-000.

12191-KAY-690

Unavailable

2

GASKET, CYLINDER This part replaces 12191-365-306.

12191-KAY-690

Unavailable

3

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12200-107-020.

12200-107-700

Unavailable

3

CYLINDER HEAD (NOT AVAILABLE)

12200-107-700

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-107-760.

12251-439-405

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-107-761.

12251-439-405

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-107-762.

12251-439-405

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-439-010.

12251-439-405

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-439-020.

12251-439-405

Unavailable

4

GASKET, CYLINDER HEAD

12251-439-405

Unavailable

5

CAP, VALVE ADJ. This part replaces 12361-107-000.

12361-383-000

$6.43

5

CAP, VALVE ADJ.

12361-383-000

$6.43

6

FLANGE, CARBURETOR (NOT AVAILABLE)

16212-107-000

Unavailable

7

INSULATOR, CARBURETOR This part replaces 16213-107-000.

16213-107-306

Unavailable

7

INSULATOR, CARBURETOR

16213-107-306

Unavailable

8

GASKET, INSULATOR This part replaces 16229-107-000.

16229-107-306

Unavailable

8

GASKET, INSULATOR

16229-107-306

Unavailable

9

CLIP, IGNITION CABLE (NOT AVAILABLE)

32906-107-000

Unavailable

10

BOLT, HS (6MM)

90081-107-000

Unavailable

11

WASHER, SEALING (8MM)

90442-028-000

$1.77

12

NUT, CAP (8MM)

90443-107-000

$2.89

13

O-RING (10X1.6)

91301-200-000

$3.01

14

O-RING (35X3) (ARAI) This part replaces 91303-107-000.

91303-KK3-830

$2.92

15

O-RING (57X2.5)

91308-500-000

$7.02

16

BOLT, STUD (6X40) (SOURCE: VINTAGE PARTS INC.) | Use up to Engine SN 206400 This part replaces 92700-06040-3B.

92900-06025-3B

Unavailable

16

BOLT, STUD (6X40) (SOURCE: VINTAGE PARTS INC.) | Use up to Engine SN 206400 This part replaces 92700-06040-30.

92900-06025-3B

Unavailable

16

BOLT, STUD (6X40) (SOURCE: VINTAGE PARTS INC.) | Use up to Engine SN 206400

92900-06025-3B

Unavailable

16

BOLT, STUD (6X45) (NOT AVAILABLE) | Use from Engine SN 205001

92700-06045-3E

Unavailable

16

BOLT, STUD (6X45) (NOT AVAILABLE) | Use from Engine SN 205001 This part replaces 92700-06045-35.

92700-06045-3E

Unavailable

16

BOLT, STUD (6X45) (NOT AVAILABLE) | Use from Engine SN 206401 This part replaces 92700-06045-35.

92700-06045-3E

Unavailable

17

BOLT, STUD (6X58) (NOT AVAILABLE)

92700-06058

Unavailable

18

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM)

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

19

WASHER, PLAIN (6MM)

94101-06800

$1.49

20

PIN A, DOWEL (10X14)

94301-10140

$2.28

21

SPARK PLUG (D8EA) (NGK) This part replaces 98069-38710.

98069-58717

$2.44

21

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58711.

98069-58717

$2.44

21

SPARK PLUG (D8EA) (NGK)

98069-58717

$2.44

21

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58717-S.

98069-58717

$2.44

21

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58720.

98069-58717

$2.44

21

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58721.

98069-58717

$2.44

21

SPARK PLUG (D8EA) (NGK) This part replaces 98079-58721.

98069-58717

$2.44
