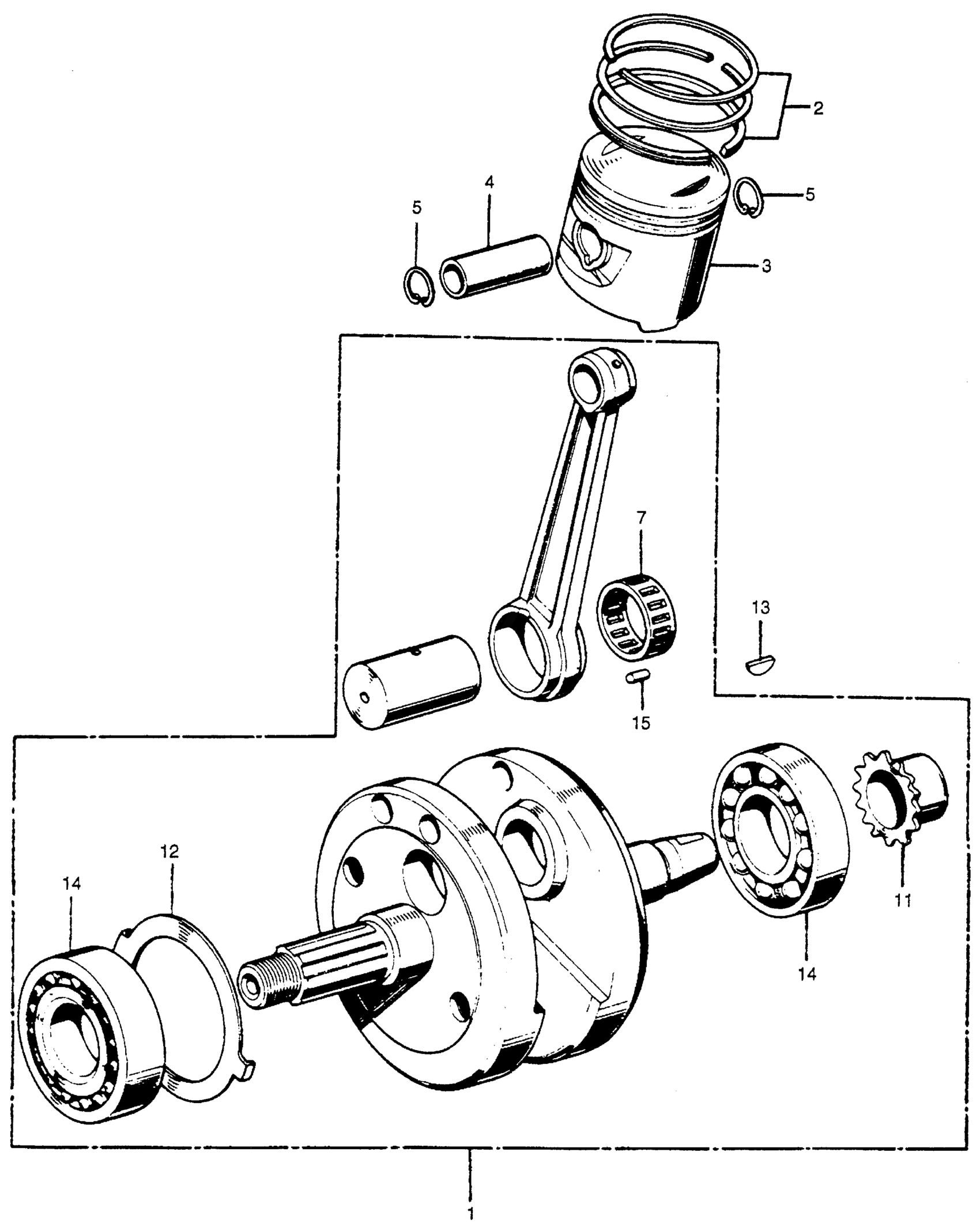

Honda CB100K1A MOTORCYCLE, JPN, VIN# CB100-200001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT | Use up to Engine SN 206400

13000-107-010

Unavailable

1

CRANKSHAFT (NOT AVAILABLE) | Use from Engine SN 205001

13000-107-710

Unavailable

2

RING SET, PISTON (STD) This part replaces 13011-107-711.

13011-107-760

Unavailable

2

RING SET, PISTON (STD)

13011-107-760

Unavailable

2

RING SET, PISTON (OS 0.25) This part replaces 13021-107-711.

13021-107-760

Unavailable

2

RING SET, PISTON (OS 0.25)

13021-107-760

Unavailable

2

RING SET, PISTON (OS 0.50) This part replaces 13031-107-711.

13031-107-760

$36.93

2

RING SET, PISTON (OS 0.50)

13031-107-760

$36.93

2

RING SET, PISTON (0.75) This part replaces 13041-107-711.

13041-107-760

$41.54

2

RING SET, PISTON (0.75)

13041-107-760

$41.54

2

RING SET, PISTON (1.00) (RIKEN)

13051-107-711

$30.44

2

RING SET, PISTON (1.00)

13051-107-760

Unavailable

3

PISTON (STD) This part replaces 13101-107-710.

13101-107-760

Unavailable

3

PISTON (STD)

13101-107-760

Unavailable

3

PISTON (OS 0.25) (NOT AVAILABLE) This part replaces 13102-107-710.

13102-107-760

Unavailable

3

PISTON (OS 0.25) (NOT AVAILABLE)

13102-107-760

Unavailable

3

PISTON (OS 0.50) (NOT AVAILABLE) This part replaces 13103-107-710.

13103-107-760

Unavailable

3

PISTON (OS 0.50) (NOT AVAILABLE)

13103-107-760

Unavailable

3

PISTON (0.75) (NOT AVAILABLE) This part replaces 13104-107-710.

13104-107-760

Unavailable

3

PISTON (0.75) (NOT AVAILABLE)

13104-107-760

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) This part replaces 13105-107-710.

13105-107-760

Unavailable

3

PISTON (1.00) (NOT AVAILABLE)

13105-107-760

Unavailable

4

PIN, PISTON

13111-028-000

$11.08

5

CLIP, PISTON PIN

13115-200-000

$1.49

5

CLIP, PISTON PIN (14MM)

94601-14000

$1.49

7

RETAINER, CONNECTING ROD ROLLER | Use up to Engine SN 206400 This part replaces 13211-107-000.

13211-121-960

Unavailable

7

RETAINER, CONNECTING ROD ROLLER | Use up to Engine SN 206400

13211-121-960

Unavailable

7

RETAINER, CONNECTING ROD ROLLER | Use up to Engine SN 206400 This part replaces 13211-354-300.

13211-121-960

Unavailable

11

SPROCKET, TIMING (16T) This part replaces 14311-107-000.

14311-958-000

$41.06

11

SPROCKET, TIMING (16T)

14311-958-000

$41.06

12

WASHER, THRUST (30MM) (NOT AVAILABLE) | Use from Engine SN 205001

90451-324-300

Unavailable

13

KEY, WOODRUFF

90741-253-000

Unavailable

14

BEARING, RADIAL BALL (6305) | Use up to Engine SN 206400 This part replaces 96100-63050.

96100-63050-00

$15.27

14

BEARING, RADIAL BALL (6305) | Use up to Engine SN 206400

96100-63050-00

$15.27

14

BEARING, RADIAL BALL (6305) (NACHI) | Use from Engine SN 205001 This part replaces 91001-071-000.

91001-071-003

$46.05

14

BEARING, RADIAL BALL (6305) (NACHI) | Use from Engine SN 206401 This part replaces 91001-071-000.

91001-071-003

$46.05

14

BEARING, RADIAL BALL (6305) (NACHI) | Use from Engine SN 205001

91001-071-003

$46.05

14

BEARING, ROLLER | Use from Engine SN 205001

91011-107-760

Unavailable

14

BEARING, ROLLER | Use from Engine SN 206401

91011-107-760

Unavailable

14

BEARING, ROLLER | Use from Engine SN 205001 This part replaces 91011-324-000.

91011-107-760

Unavailable

14

BEARING, ROLLER | Use from Engine SN 206401 This part replaces 91011-324-000.

91011-107-760

Unavailable

15

ROLLER (3X10) (NOT AVAILABLE) | Use up to Engine SN 206400

96220-30100

Unavailable

15

ROLLER (3X10) (NOT AVAILABLE) | Use from Engine SN 206401

96220-30100

Unavailable
