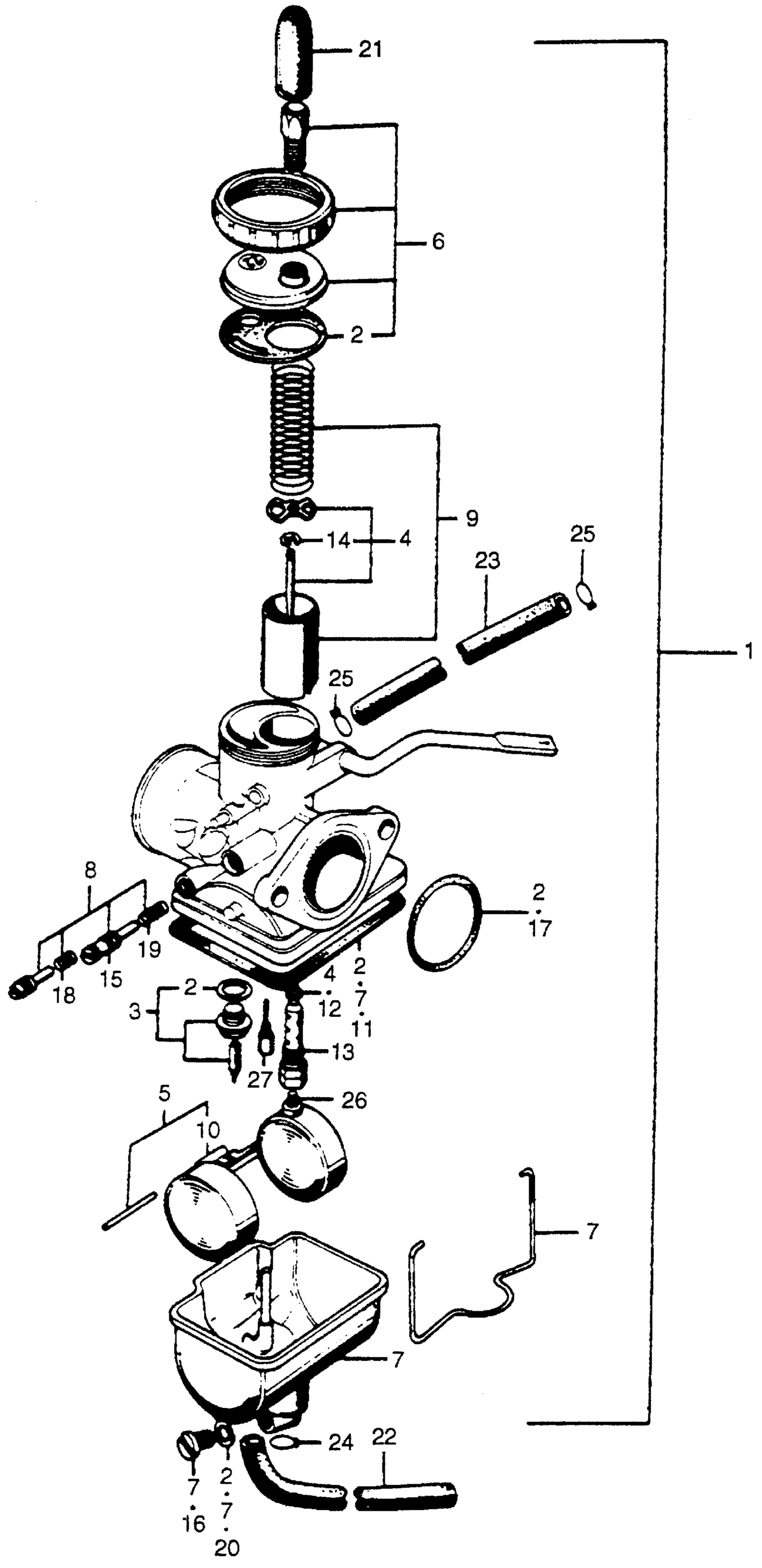

Honda CB100K1A MOTORCYCLE, JPN, VIN# CB100-200001 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY. (NOT AVAILABLE)

16100-107-712

Unavailable

2

GASKET SET

16010-107-305

$12.74

2

GASKET SET This part replaces 16010-107-710.

16010-107-305

$12.74

3

VALVE SET, FLOAT This part replaces 16011-302-004.

16011-375-004

$28.96

3

VALVE SET, FLOAT

16011-375-004

$28.96

4

NEEDLE SET, JET (NOT AVAILABLE)

16012-107-710

Unavailable

5

FLOAT SET

16013-286-014

$32.28

6

TOP SET (NOT AVAILABLE)

16014-107-711

Unavailable

7

CHAMBER SET A, FLOAT (NOT AVAILABLE)

16015-107-710

Unavailable

8

SCREW SET A

16016-KJ2-671

Unavailable

8

SCREW SET A This part replaces 16016-035-004.

16016-KJ2-671

Unavailable

9

VALVE SET, THROTTLE

16022-107-710

Unavailable

10

FLOAT SET This part replaces 16013-302-670.

16013-312-004

Unavailable

10

FLOAT SET

16013-312-004

Unavailable

10

FLOAT SET This part replaces 16122-259-004.

16013-312-004

Unavailable

10

FLOAT SET This part replaces 16122-268-004.

16013-312-004

Unavailable

11

WASHER, FLOAT CHAMBER

16129-268-004

Unavailable

12

NEEDLE, JET (NOT AVAILABLE)

16133-259-004

$8.48

13

HOLDER, NEEDLE JET (NOT AVAILABLE)

16139-107-710

Unavailable

14

CLIP, BAR

16157-259-004

$5.36

15

SCREW, THROTTLE STOP (NOT AVAILABLE) This part replaces 16163-011-004.

16163-217-004

Unavailable

15

SCREW, THROTTLE STOP

16163-217-004

Unavailable

16

SCREW, DRAIN (NOT AVAILABLE)

16164-202-004

Unavailable

17

O-RING (29X2.4)

16173-260-004

$7.33

18

SPRING, AIR SCREW (NOT AVAILABLE)

16181-202-004

$3.70

19

SPRING, THROTTLE STOP (NOT AVAILABLE)

16182-011-004

Unavailable

20

WASHER, FIBER

16189-056-004

Unavailable

21

CAP, CABLE SEALING This part replaces 16118-086-004.

16118-166-004

$8.08

21

CAP, CABLE SEALING

16118-166-004

$8.08

21

CAP, CABLE SEALING This part replaces 16118-190-004.

16118-166-004

$8.08

21

CAP, CABLE SEALING This part replaces 16194-028-004.

16118-166-004

$8.08

22

BULK HOSE, FUEL (3.5X3000) (3.5X180)

95001-35003-60M

$20.85

23

BULK HOSE, FUEL (4.5X3000) (4.5X130)

95001-45003-60M

$36.67

24

CLIP, TUBE (B7) | Use from Engine SN 103066

95002-02070

$1.80

24

CLIP, TUBE (B7) | Use from Engine SN 203804

95002-02070

$1.80

24

CLIP, TUBE (B7) | Use from Engine SN 204076

95002-02070

$1.80

25

CLIP, TUBE (4.5) | Use up to Engine SN 204075

95002-45000

$1.49

25

CLIP, TUBE (B8) | Use from Engine SN 103066

95002-02080

$1.80

25

CLIP, TUBE (B8) | Use from Engine SN 203804

95002-02080

$1.80

25

CLIP, TUBE (B8) | Use from Engine SN 204076

95002-02080

$1.80

26

JET, MAIN (#100)

99114-246-1000

Unavailable

26

JET, MAIN (#110)

99114-246-1100

Unavailable

26

JET, MAIN (#115)

99114-246-1150

Unavailable

26

JET, MAIN (#120)

99114-246-1200

$8.10

27

JET, SLOW (#38)

99124-077-0380

Unavailable

27

JET, SLOW (#40) (NOT AVAILABLE)

99124-077-0400

Unavailable

27

JET, SLOW (#42) (NOT AVAILABLE)

99124-077-0420

Unavailable
