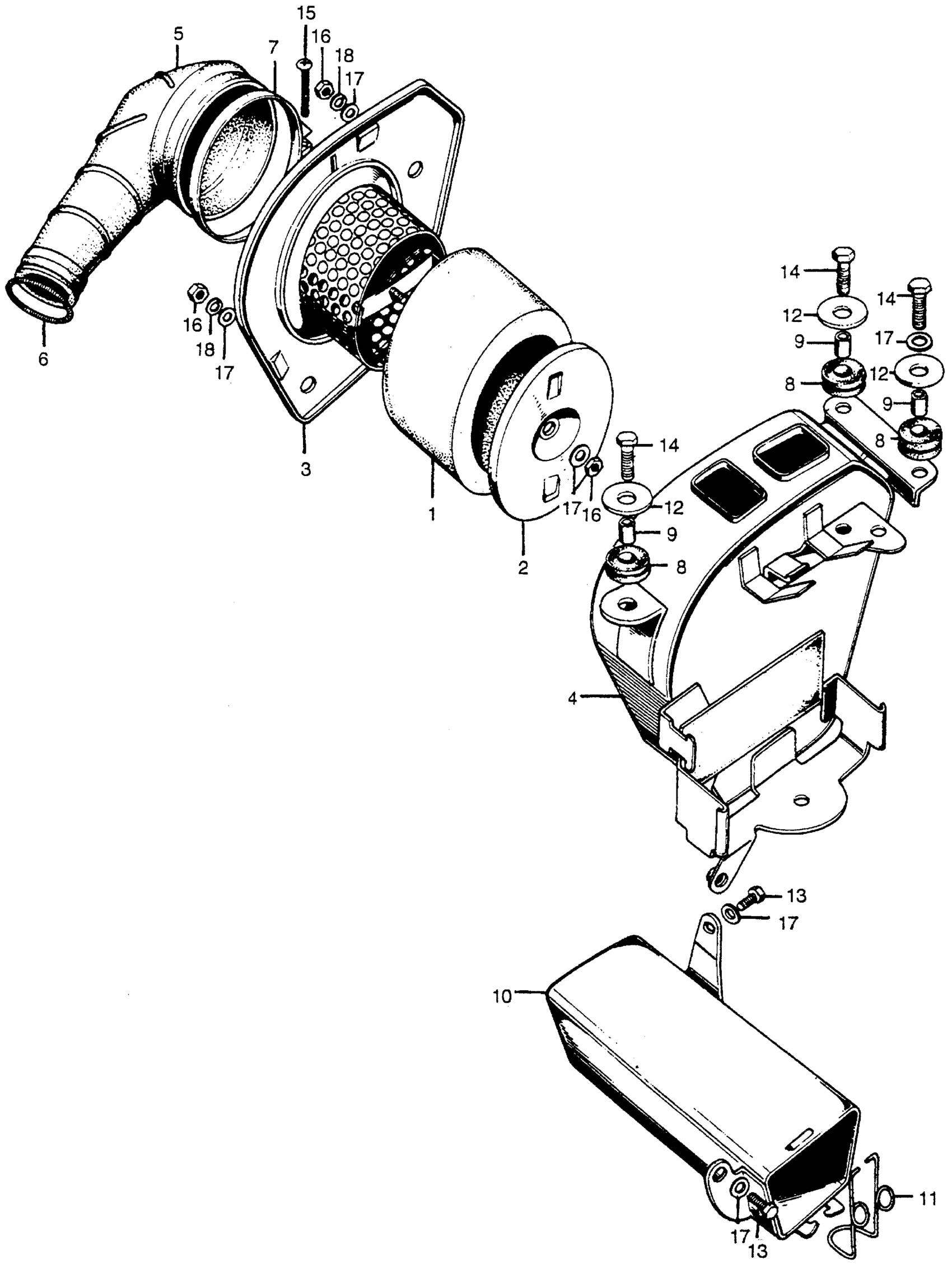

Honda CB100K1A MOTORCYCLE, JPN, VIN# CB100-200001 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17211-107-020

$6.78

2

CAP, AIR CLEANER ELEMENT

17212-107-000

Unavailable

3

COVER, AIR CLEANER HOUSING (NOT AVAILABLE)

17220-107-030

Unavailable

4

HOUSING, AIR CLEANER

17230-107-770

Unavailable

5

TUBE, AIR CLEANER CONNECTING This part replaces 17253-107-780.

17253-107-782

Unavailable

5

TUBE, AIR CLEANER CONNECTING This part replaces 17253-107-781.

17253-107-782

Unavailable

5

TUBE, AIR CLEANER CONNECTING

17253-107-782

Unavailable

5

TUBE, AIR CLEANER CONNECTING This part replaces 17253-110-670.

17253-107-782

Unavailable

6

BAND A, AIR CLEANER IN. PIPE

17231-051-000

$4.63

6

BAND A, AIR CLEANER IN. PIPE This part replaces 17255-028-000.

17231-051-000

$4.63

7

BAND, AIR CLEANER CONNECTING TUBE

17255-107-000

Unavailable

8

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

9

COLLAR, RR. TURN SIGNAL STAY

33603-053-650

$1.64

10

BOX, TOOL (NOT AVAILABLE)

83500-107-040

Unavailable

11

SPRING, TOOL BOX CAP

83510-107-000

Unavailable

12

WASHER, WHEEL (6MM)

90563-706-000

Unavailable

13

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

13

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

13

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

14

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

14

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

15

SCREW, PAN (4X25)

93500-04025-0A

$1.93

16

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM)

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49

18

WASHER, SPRING (6MM)

94111-06000

$1.49
