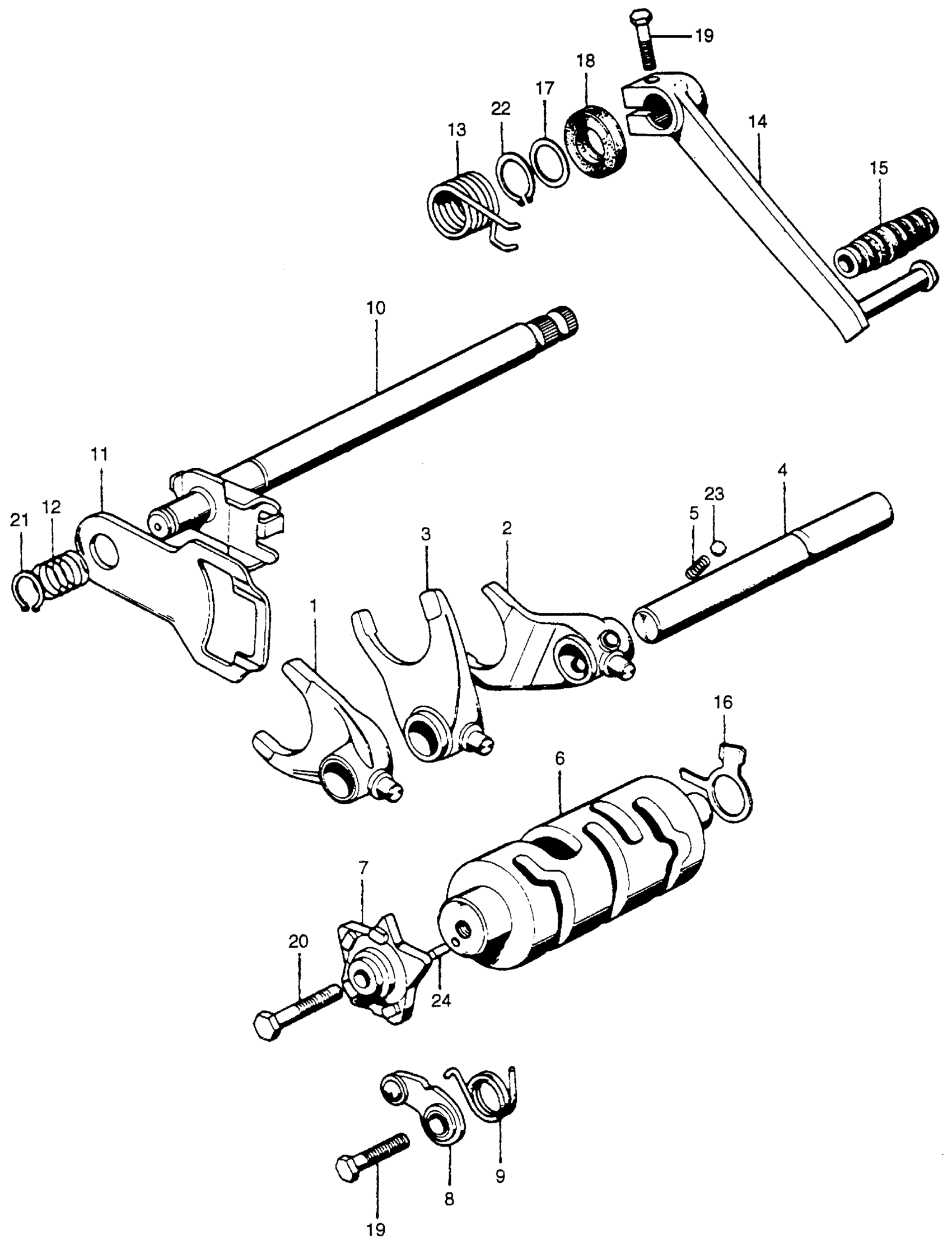

Honda CB100A MOTORCYCLE, JPN, VIN# CB100-100001 GEARSHIFT Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-107-000

$52.69

2

FORK, L. GEARSHIFT

24221-107-000

$72.95

3

FORK, CENTER GEARSHIFT This part replaces 24231-107-000.

24231-107-010

Unavailable

3

FORK, CENTER GEARSHIFT

24231-107-010

Unavailable

4

SHAFT, GEARSHIFT FORK GUIDE

24241-107-000

Unavailable

5

SPRING, BALL SETTING (NOT AVAILABLE)

24271-107-000

Unavailable

6

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-107-000

Unavailable

7

CAM, GEARSHIFT

24411-KCN-000

$28.74

7

CAM, GEARSHIFT This part replaces 24411-107-000.

24411-KCN-000

$28.74

7

CAM, GEARSHIFT This part replaces 24411-107-003.

24411-KCN-000

$28.74

7

CAM, GEARSHIFT This part replaces 24411-107-013.

24411-KCN-000

$28.74

8

STOPPER, GEARSHIFT DRUM This part replaces 24430-107-000.

24430-324-000

Unavailable

8

STOPPER, GEARSHIFT DRUM

24430-324-000

Unavailable

9

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE) This part replaces 24435-107-000.

24435-107-761

Unavailable

9

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-107-761

Unavailable

10

SPINDLE, GEARSHIFT This part replaces 24610-107-000.

24610-107-760

Unavailable

10

SPINDLE, GEARSHIFT

24610-107-760

Unavailable

12

SPRING, GEARSHIFT PLATE

24631-107-000

$2.92

13

SPRING, GEARSHIFT RETURN

24651-107-000

$5.81

14

PEDAL, GEARSHIFT This part replaces 24700-107-000.

24701-107-700

Unavailable

14

PEDAL, GEARSHIFT This part replaces 24700-107-700.

24701-107-700

Unavailable

14

PEDAL, GEARSHIFT

24701-107-700

Unavailable

16

ROTOR, NEUTRAL SWITCH

35753-KG2-951

$4.76

16

ROTOR, NEUTRAL SWITCH This part replaces 35753-028-601.

35753-KG2-951

$4.76

17

WASHER, THRUST (14MM)

90451-001-000

$3.67

18

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

19

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

19

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

20

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

20

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

21

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

22

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

23

BALL, STEEL (#8) (1/4)

96211-08000

$1.49

24

ROLLER (4X10)

96220-40100

$1.49
