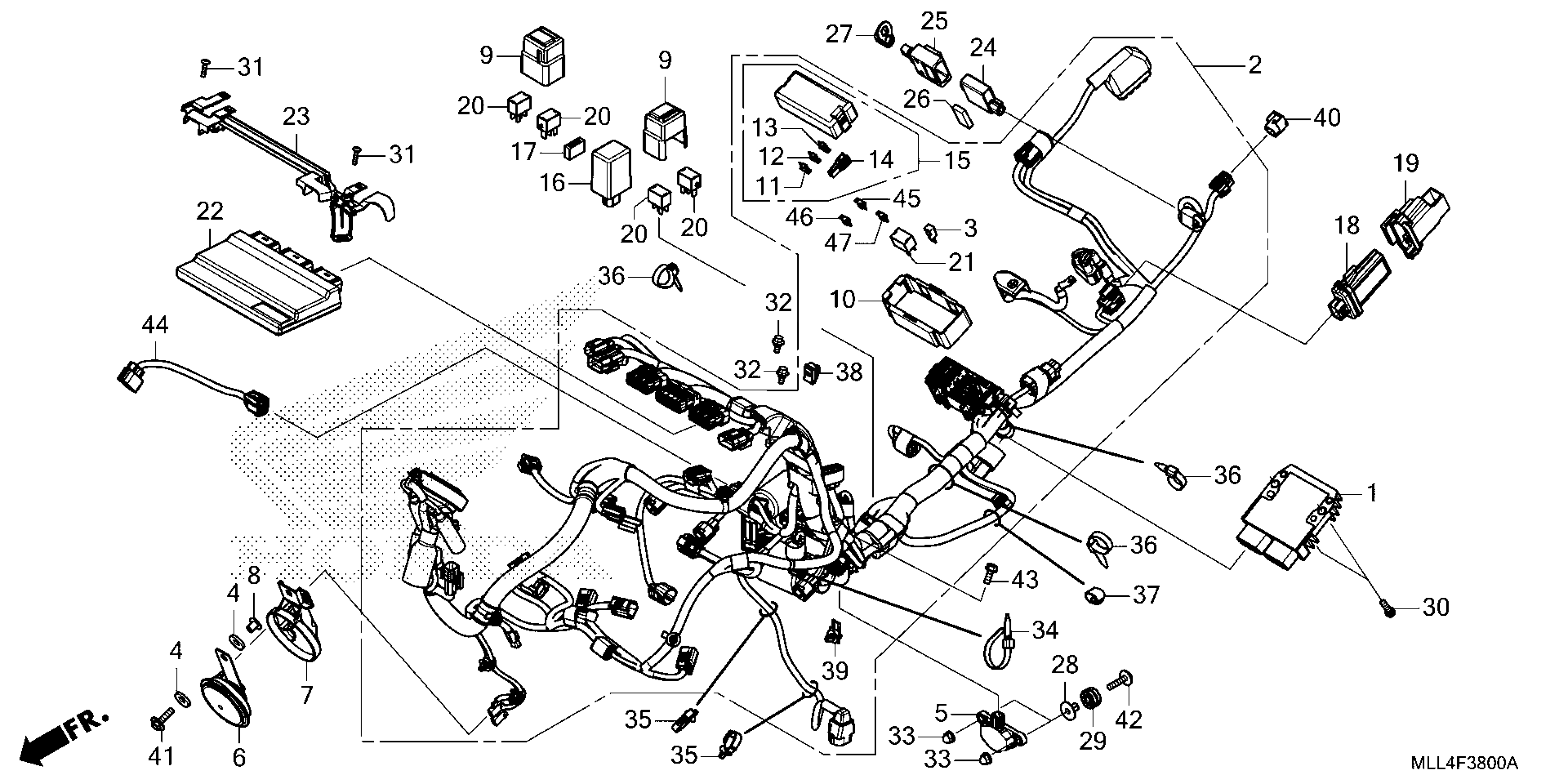

Honda CB1000SPAC (25) MOTORCYCLE, JPN, VIN# JH2SC861-SK000001 TO JH2SC861-SK099999 WIRE HARNESS Diagram

#

Description
Price

1

RECTIFIER ASSY., REGULATOR

31600-MKN-D51

$194.27

2

WIRE HARNESS

32100-MLL-A10

$1.00

3

CONNECTOR, DIODE (2P) (3A)

32146-S84-003

$15.33

4

RUBBER, TAILLIGHT BRACKET

33714-KL3-620

$2.51

5

SENSOR ASSY., BANK ANGLE

35160-MGS-D31

$150.05

6

HORN (HIGH)

38110-MGZ-J01

$28.62

7

GUARD, HORN HEAT (NOT AVAILABLE)

38111-MLL-D00

$7.10

8

COLLAR, HORN SETTING

38117-MGZ-J00

$1.79

9

SUSPENSION (2P)

38200-K0B-T00

$1.94

10

SUSPENSION, FUSE BOX (NOT AVAILABLE)

38202-MLL-D00

$6.22

11

FUSE, BLADE (7.5A)

38221-SNA-A31

$3.11

12

FUSE, BLADE (10A)

38221-SNA-A41

$3.11

13

FUSE, BLADE (15A)

38221-SNA-A51

$3.72

14

PULLER, MINI FUSE

38235-SNA-A01

$3.84

15

COVER ASSY., POWER BOX (NOT AVAILABLE)

38255-MLL-D01

$14.30

16

RELAY, TURN SIGNAL (LED)(ESS)

38301-MLL-D01

$48.19

17

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$3.01

18

BLUETOOTH UNIT

38350-K0Z-918

$101.62

19

CUSHION

38351-MLL-D00

$4.46

20

RELAY, POWER (MICRO ISO 4P)

38501-KSS-B31

$43.72

21

RELAY (MICRO ISO 4P)

38501-MKP-DN1

$4.80

22

PGM-FI UNIT

38770-MLL-A11

$1.00

23

PLATE, PGM-FI UNIT SETTING (NOT AVAILABLE)

38771-MLL-D00

$4.06

24

CHARGER UNIT, USB (TYPE-C)

38940-MKR-D11

$68.87

25

COVER, USB CHARGER (TYPE-C)

38941-MLA-A00

$7.95

26

CUSHION, USB UNIT (14X28) (NOT AVAILABLE)

38941-MLL-D00

$2.07

27

CAP, USB CHARGER COVER

38942-MLA-A00

$3.31

28

COLLAR, FR. FENDER (WHITE) (FOR RR.)

61104-428-010

$4.42

29

RUBBER, TAILLIGHT MOUNTING

84703-425-000

$4.72

30

BOLT, FLANGE (6X22)

90021-GHB-670

$2.18

31

SCREW, TAPPING (4X18) (DELTA PT)

90105-MFJ-D00

$2.05

32

BOLT, SPECIAL (5MM)

90112-GC3-000

$2.97

33

NUT, CAP (6MM)

90201-415-000

$2.05

34

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

35

CLAMP, HARNESS

90652-HC4-003

$5.95

36

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

37

BAND, RUBBER (50)

90652-MKH-D20

$2.93

38

CLIP, RELAY HOLDER (NATURAL)

91536-STK-003

$1.49

39

CLIP, WPC CONNECTOR | Use from Frame SN SK000160.

91565-K29-V81

$1.49

39

CLIP, CONNECTOR | Use up to Frame SN SK000159.

91565-S3Y-003

$6.90

40

CAP, DUMMY (6P) (RED)

91771-MKK-H11

$23.15

41

BOLT-WASHER (6X25)

93404-06025-07

$1.87

42

BOLT-WASHER (6X28)

93404-06028-08

$1.80

43

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

44

SUB-WIRE HARNESS, THROTTLE BY

32104-MKF-D40

$30.80

45

BLADE FUSE (7.5A) | Use from Frame SN SK000160.

38221-K2S-V01

$1.49

45

FUSE, BLADE (7.5A) | Use up to Frame SN SK000159.

38221-SNA-A31

$3.11

46

FUSE, BLADE (10A) | Use from Frame SN SK000160.

38221-K2C-V11

$1.49

46

FUSE, BLADE (10A) | Use up to Frame SN SK000159.

38221-SNA-A41

$3.11

47

BLADE FUSE (15A) | Use from Frame SN SK000160.

38221-K2S-V11

$1.49

47

FUSE, BLADE (15A) | Use up to Frame SN SK000159.

38221-SNA-A51

$3.72
