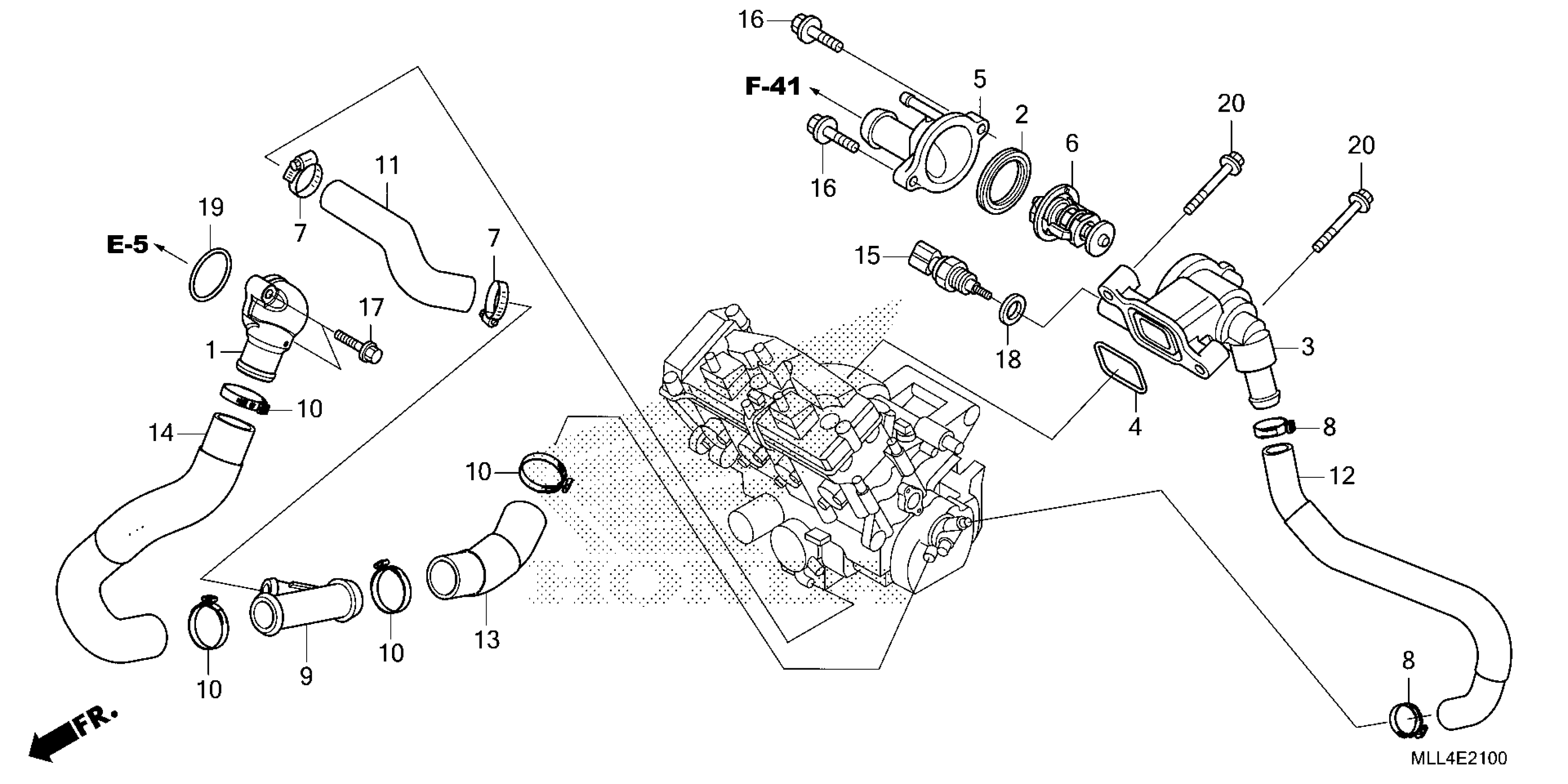

Honda CB1000SPAC (25) MOTORCYCLE, JPN, VIN# JH2SC861-SK000001 TO JH2SC861-SK099999 THERMOSTAT Diagram

JOINT, WATER (NOT AVAILABLE)

19060-MLL-D00

$17.96

RUBBER, THERMOSTAT

19305-KV3-010

$5.64

CASE, THERMOSTAT

19310-MFL-305

$41.74

GASKET, THERMOSTAT CASE

19312-MFG-D00

$2.85

COVER, THERMOSTAT (NOT AVAILABLE)

19315-MLL-D00

$27.84

THERMOSTAT

19320-MFJ-D01

$30.94

CLAMP, WATER HOSE (25MM)

19504-KY1-003

Unavailable

CLAMP, HOSE (D21)

19512-MKF-D41

$7.94

JOINT, HOSE (THREE-WAY)

19514-MFJ-D00

$11.18

CLAMP, HOSE (D29.8)

19514-MKF-D41

$9.21

HOSE, OIL COOLER

19526-MFL-000

$4.96

HOSE, BYPASS

19531-MKF-D40

$41.80

HOSE A, CYLINDER

19541-MKF-D40

$12.80

HOSE B, CYLINDER

19542-MKF-D40

$29.28

SENSOR ASSY., WATER TEMPERATURE

37870-KRJ-901

$27.61

BOLT, FLANGE (6X23) (CT200)

90018-ZE1-000

$1.59

BOLT, FLANGE (6X28) (S-NSHF)

90028-GHB-690

Unavailable

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.38

O-RING (34X2)

91301-MFL-000

$2.16

BOLT, FLANGE (6X35)

95701-06035-00

$1.71
