Description

Price

2

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-MLL-D00

$43.63

3

CHAIN, DRIVE

40530-MKR-DH2

$161.74

4

MASTER LINK (RK JAPAN)

40535-MKF-D42

$10.90

5

COLLAR, RR. AXLE

42305-MJE-D00

$13.72

6

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

52101-MLL-D00

$28.47

7

COLLAR, CENTER PIVOT DISTANCE (NOT AVAILABLE)

52141-MLL-D00

$22.56

8

COLLAR, R. PIVOT DISTANCE

52142-MGS-D10

$17.22

9

COLLAR, L. PIVOT DISTANCE

52143-MGS-D10

$18.59

10

CAP, RR. SWINGARM (NOT AVAILABLE)

52161-K64-N00

$3.97

11

CAP, RR. SWINGARM

52161-KZZ-900

$2.46

12

SLIDER, CHAIN (NOT AVAILABLE)

52170-MLL-D00

$24.03

13

WASHER, CHAIN SLIDER

52171-KR6-000

$2.38

14

SWINGARM SUB-ASSY., RR. (NOT AVAILABLE)

52200-MLL-D00

$731.12

15

COLLAR, CUSHION CONNECTING ROD

52463-MAL-G00

$10.72

16

BOLT, HEX. (8X50)

90106-MLF-E80

$2.01

17

SCREW, PAN (5X8)

90115-KV3-700

$2.41

18

SCREW, SPECIAL (6X14)

90127-MKN-D50

$1.24

19

NUT, U (18MM)

90305-KZ4-891

$14.54

20

NUT, HEX. (10MM)

90309-357-000

$3.25

21

WASHER (18X32X2)

90401-KZ4-890

$4.28

22

CIRCLIP (INNER) (37)

90651-MEW-920

$2.90

23

BEARING, RADIAL BALL (20X37X9)

91054-MGS-D31

$9.25

24

BEARING, NEEDLE (30X37X20)

91055-MGS-D31

$17.75

25

BEARING, NEEDLE (KOYO)

91071-KV3-005

$22.84

26

BEARING, NEEDLE

91071-MR7-003

$23.57

27

DUST SEAL (28X37X4)

91202-MR7-003

$6.06

28

DUST SEAL (30X37X4)

91253-KZ3-861

$7.99

29

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.91

30

SCREW, TAPPING (4X12)

93903-24380

Unavailable

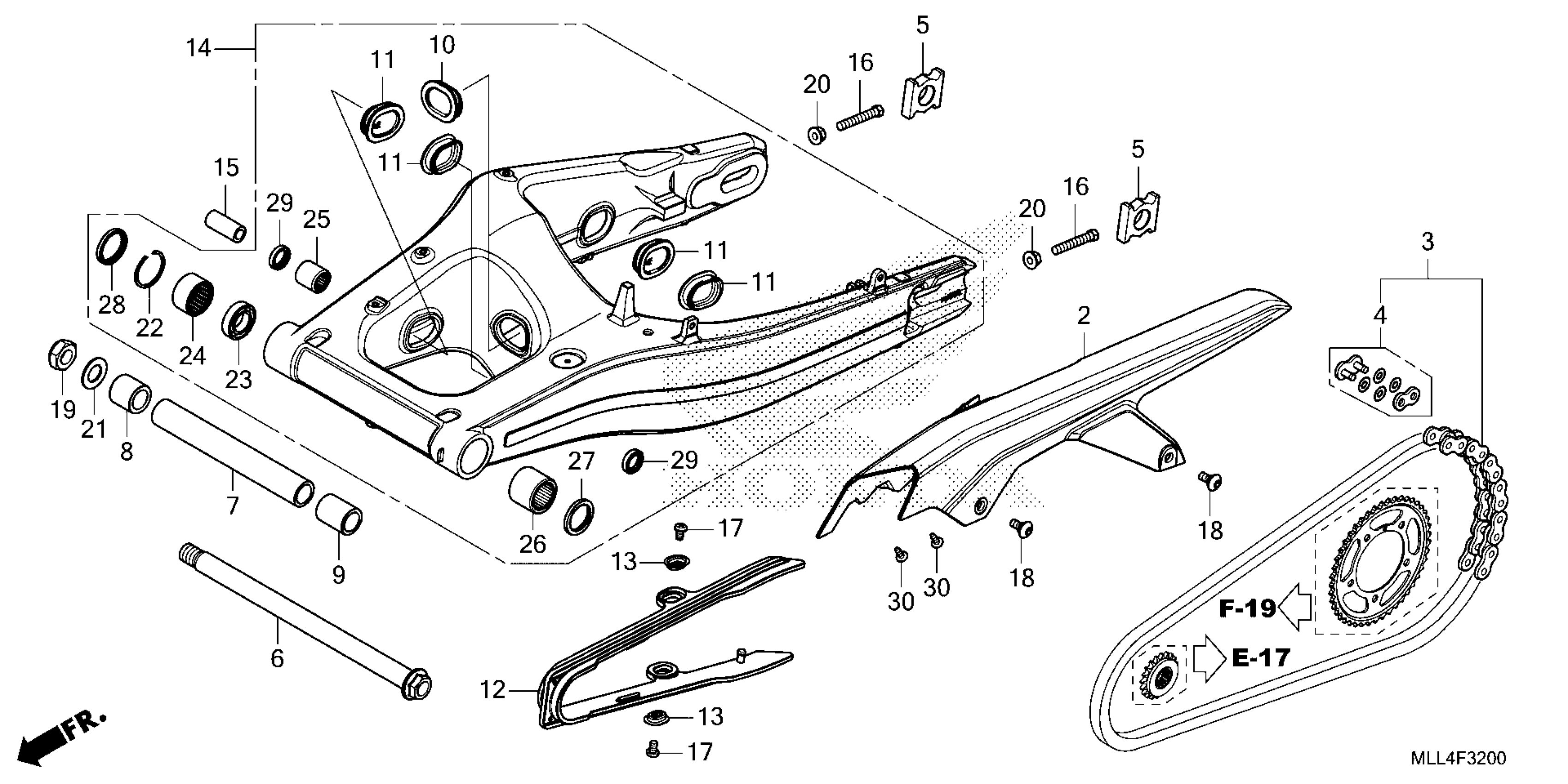

Honda CB1000SPAC (25) MOTORCYCLE, JPN, VIN# JH2SC861-SK000001 TO JH2SC861-SK099999 SWINGARM Diagram
