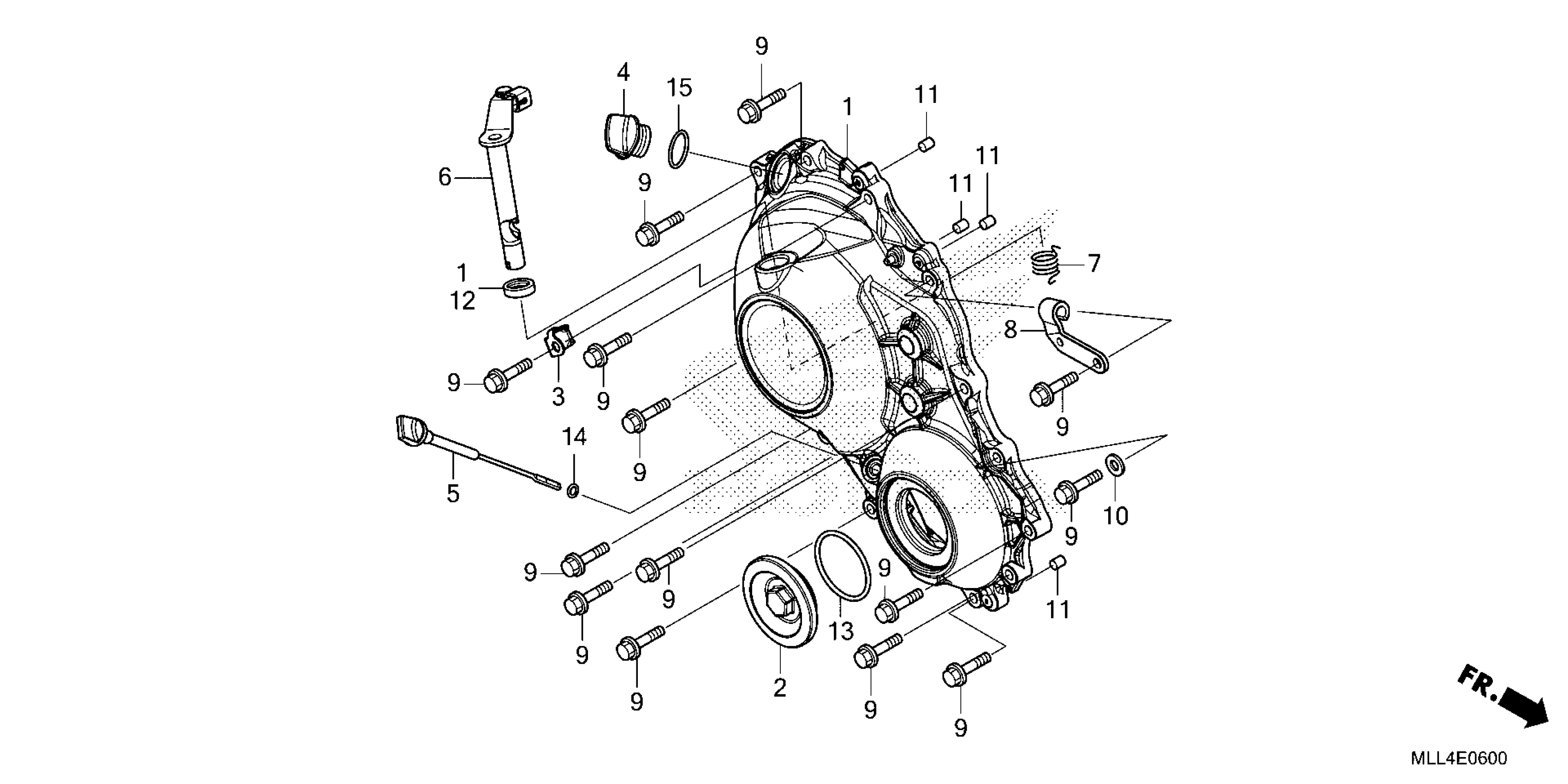

Honda CB1000SPAC (25) MOTORCYCLE, JPN, VIN# JH2SC861-SK000001 TO JH2SC861-SK099999 RIGHT CRANKCASE COVER Diagram

COVER, R. (NOT AVAILABLE)

11330-MLL-D00

$198.19

CAP (45MM) (NOT AVAILABLE)

11332-MLL-D00

$9.83

CLAMP, OIL PRESSURE SWITCH CORD (NOT AVAILABLE)

11346-MLL-D00

$3.76

CAP, OIL FILLER

15611-KA4-710

$14.40

DIPSTICK, OIL (NOT AVAILABLE)

15650-MLL-D00

$11.50

LEVER, CLUTCH (NOT AVAILABLE)

22810-MLL-D00

$36.03

SPRING, CLUTCH LEVER

22815-MFL-000

$2.92

RECEIVER, CLUTCH CABLE (NOT AVAILABLE) | Use up to Engine SN 5010655.

22821-MLL-D00

$5.42

RECEIVER, CLUTCH CABLE | Use from Engine SN 5010656.

22821-MLL-D01

$5.44

BOLT, FLANGE (6X28) (S-NSHF)

90028-GHB-690

$1.49

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

PIN, DOWEL (10X16) (Honda Code 3906971)

90701-MV9-670

$4.30

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.92

O-RING (6.5X2.2) (ARAI)

91303-MJ0-003

$4.06

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92
