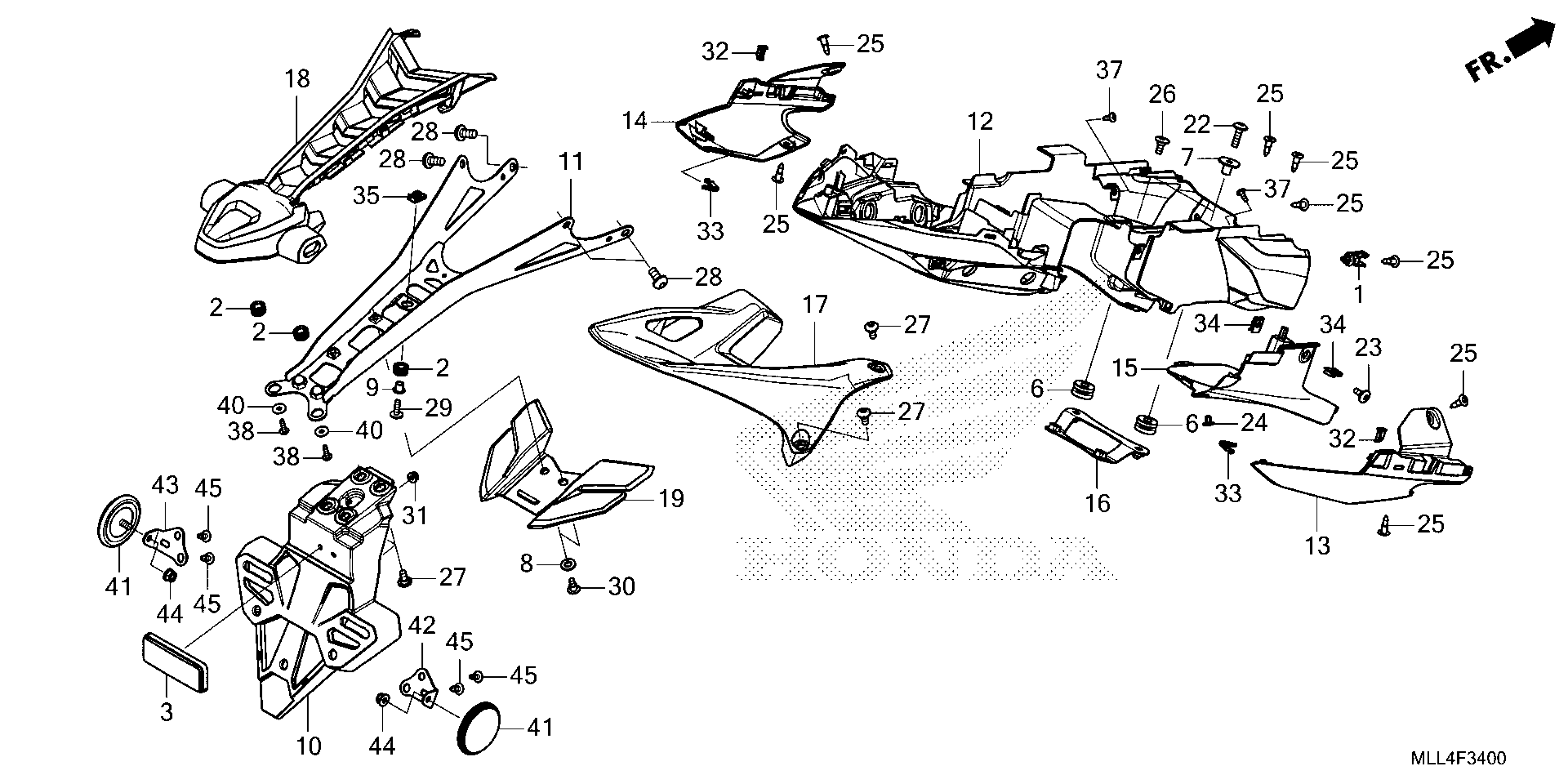

Honda CB1000SPAC (25) MOTORCYCLE, JPN, VIN# JH2SC861-SK000001 TO JH2SC861-SK099999 REAR FENDER Diagram

#

Description
Price

1

CLAMP, TUBE

17938-MKA-D21

Unavailable

2

RUBBER, MOUNT

19639-MKY-D50

$2.00

3

REFLECTOR, REFLEX

33741-KPL-902

$6.86

6

RUBBER, FR. FENDER MOUNTING (Honda Code 0329987)

61103-357-000

Unavailable

7

COLLAR, FR. FENDER (WHITE) (FOR RR.)

61104-428-010

$4.22

8

RUBBER B, MOUNTING

61106-KW6-840

$1.41

9

COLLAR, RR. FENDER

80101-MFJ-D00

$3.80

10

FENDER A, RR.

80101-MKY-D50

$6.78

11

STAY, RR. FENDER

80103-MKY-D50

$99.14

12

FENDER B, RR. (NOT AVAILABLE)

80105-MLL-D00

$55.62

13

LID, R. RR. FENDER (NOT AVAILABLE)

80106-MLL-D00

$7.62

14

LID, L. RR. FENDER (NOT AVAILABLE)

80107-MLL-D00

$7.62

15

COVER, SERVO MOTOR (NOT AVAILABLE)

80108-MLL-D00

$10.38

16

STAY, REGULATE RECTIFIER (NOT AVAILABLE)

80112-MLL-D00

$8.97

17

FENDER C, RR. (NOT AVAILABLE)

80120-MLL-D00

$12.16

18

COVER SET, RR. FENDER STAY (UPPER) (TYPE1) (WL)

80150-MKY-D50ZA

$6.35

19

COVER, RR. FENDER STAY (LOWER)

80161-MKY-D50

$6.77

22

BOLT, SPECIAL (6X22)

90085-MAJ-A20

$3.52

23

SCREW, SPECIAL (5X14)

90102-MKA-D80

$2.64

24

RIVET, PUSH (6MM)

90116-K0A-E11

$1.17

25

CLIP, BUMPER SEAL

90116-K2P-V61

$1.46

26

SCREW, SPECIAL (6X14)

90118-MJK-N20

$2.46

27

SCREW, SPECIAL (6X14)

90127-MKN-D50

$1.22

28

BOLT, SOCKET (8X16)

90128-MCH-000

$2.06

29

SCREW, PAN (5X16)

90133-MKN-D50

$1.22

30

SCREW, PAN (5X14)

90134-MKY-D50

$1.19

31

NUT, U (5MM)

90301-KWN-901

$0.61

32

CLIP, SLIDE

90651-K14-A31

Unavailable

33

CLIP, SNAP FITTING

90666-K73-VA1

$1.88

34

NUT, CLIP (5MM)

90677-KAN-961

$3.79

35

NUT, CLIP (5MM)

90677-KAN-T00

Unavailable

37

SCREW, TAPPING (4X12)

93903-24380

Unavailable

38

SCREW, TAPPING (4X16)

93903-24480

$0.83

40

WASHER, PLAIN (4MM)

94103-04700

$0.86

41

REFLECTOR, RR. REFLEX (RED)(THAI STANLEY)

33741-K2E-A01

$21.46

42

STAY, R. REFLECTOR

80104-MKY-L50

$14.48

43

STAY, L. REFLECTOR

80105-MKY-L50

$22.65

44

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.26

45

SCREW, TAPPING (5X12)

93903-25280

$1.23
