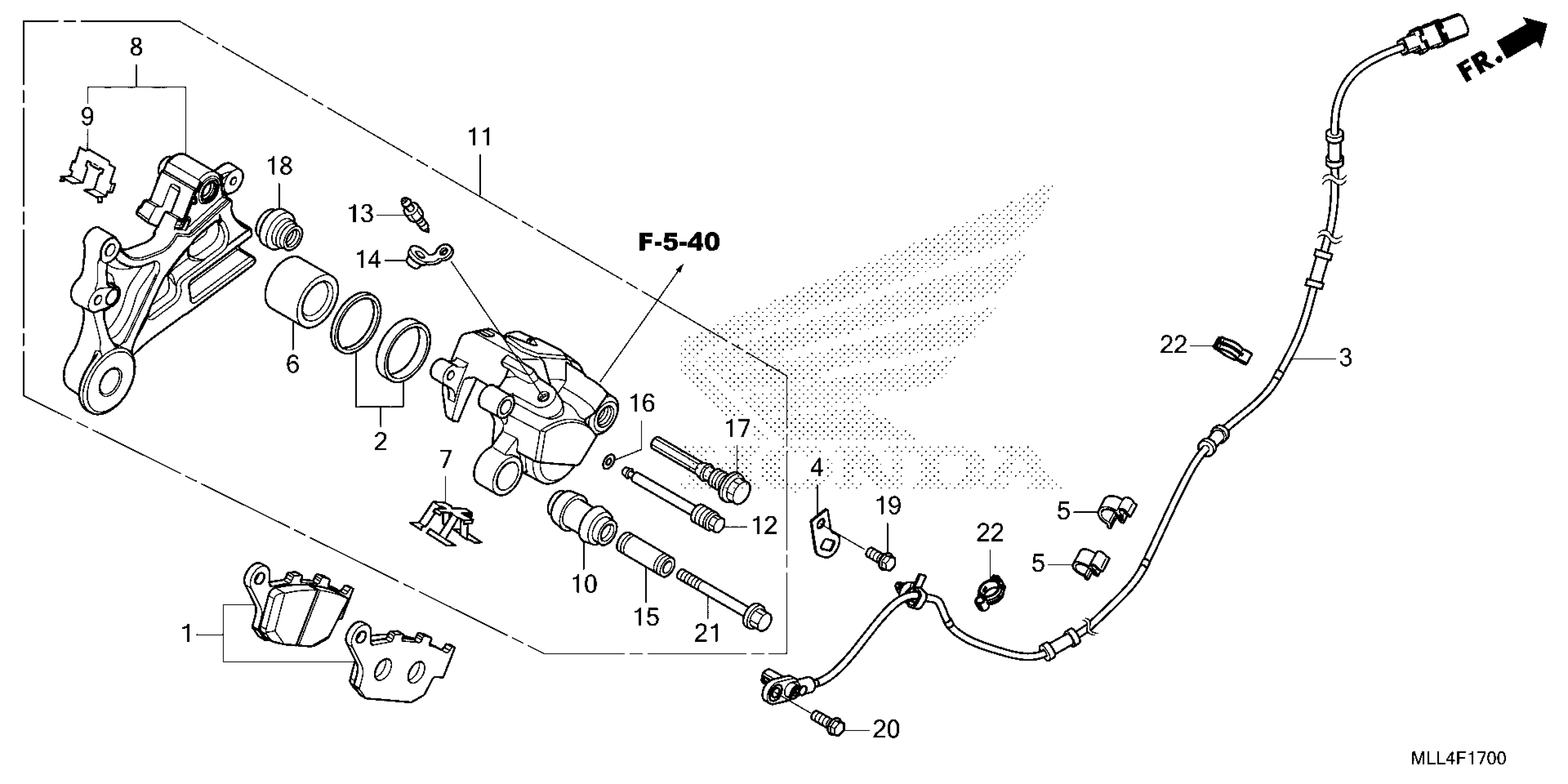

Honda CB1000SPAC (25) MOTORCYCLE, JPN, VIN# JH2SC861-SK000001 TO JH2SC861-SK099999 REAR BRAKE CALIPER Diagram

Description

Price

PAD SET, RR.

06435-MGS-D32

$44.08

SEAL SET, PISTON

06451-443-405

$12.15

SENSOR, RR. WHEEL SPEED (NOT AVAILABLE)

38510-MLL-D01

$53.76

STAY, CLIP

38515-MKP-J00

$1.65

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.51

PISTON

43107-KT7-761

$34.77

SPRING, PAD

43108-MBB-006

$5.90

BRACKET, RR. BRAKE

43110-MKA-D81

$153.18

RETAINER

43112-MFF-D01

$7.03

BOOT, SLEEVE

43132-KT7-761

$7.85

CALIPER SUB-ASSY., RR. (NISSIN)

43150-MKA-D81

$281.99

PIN, HANGER

43215-KZ4-J41

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

SLEEVE

45111-MA3-006

$12.28

RING, STOPPER

45111-MAJ-G41

$3.63

BOLT, PIN

45131-MN9-006

$14.66

BOOT B

45133-MA3-006

$5.21

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.15

BOLT, FLANGE (6X14)

90117-MJP-G60

$2.04

BOLT, FLANGE (8X49)

90180-MN8-006

$5.80

CLIP, CABLE (12MM)

90690-MGS-D81

$2.06
