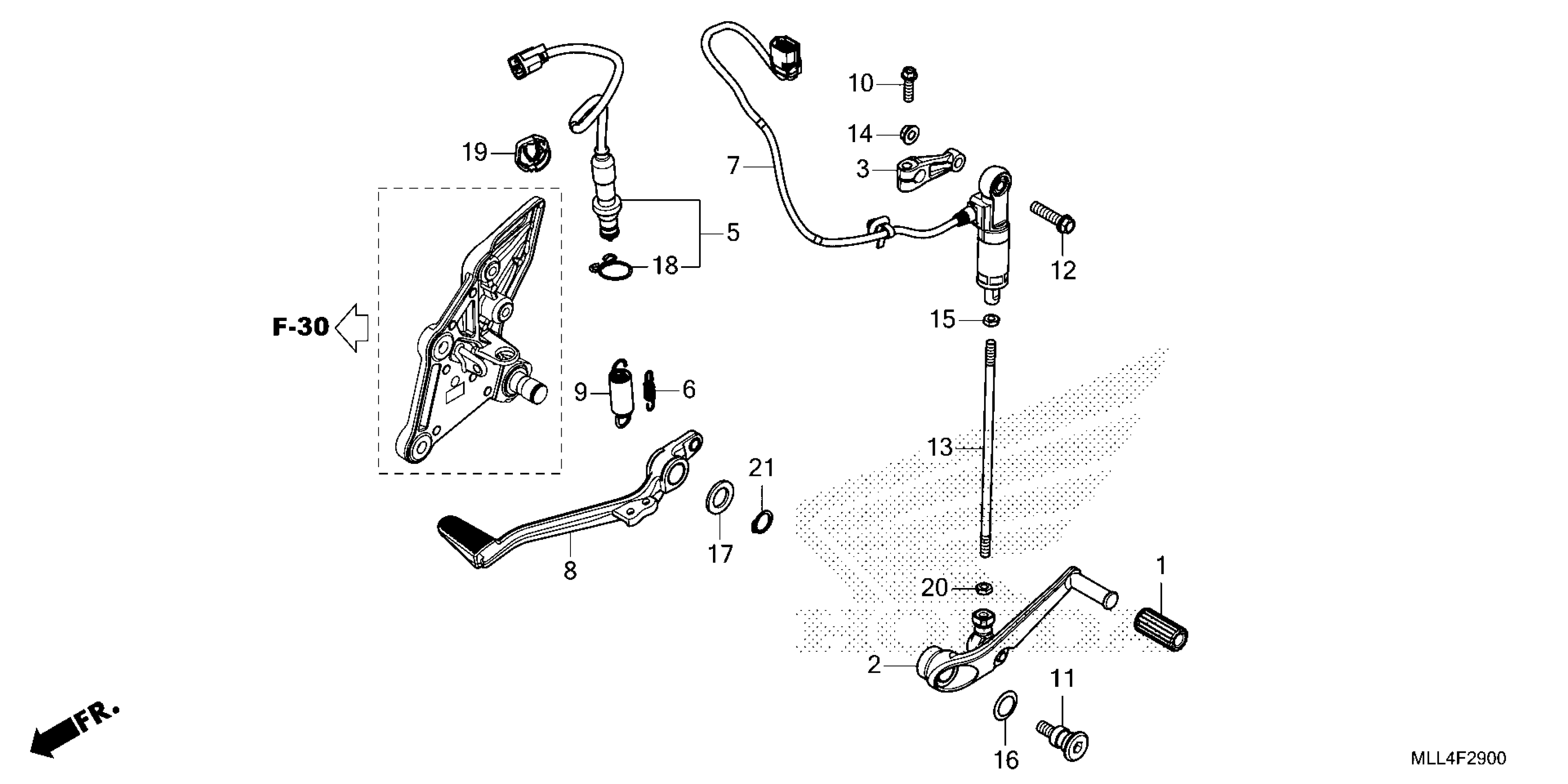

Honda CB1000SPAC (25) MOTORCYCLE, JPN, VIN# JH2SC861-SK000001 TO JH2SC861-SK099999 PEDAL Diagram

RUBBER, GEARSHIFT PEDAL

24705-MR7-000

$3.59

PEDAL, GEARSHIFT (NOT AVAILABLE)

24710-MLL-D00

$67.41

ARM, GEARSHIFT

24711-MKF-D60

$30.35

SWITCH ASSY., RR. STOP (NOT AVAILABLE)

35350-MLL-D01

$20.82

SPRING, STOP SWITCH

35357-MBR-000

$2.21

SENSOR ASSY., STROKE (NOT AVAILABLE)

36390-MLL-D01

$363.15

PEDAL, BRAKE (NOT AVAILABLE)

46500-MLL-D00

$87.16

SPRING ASSY., BRAKE PEDAL

46513-KYJ-900

$2.80

BOLT, FLANGE (6X20)

90023-GHB-660

$1.66

BOLT, CHANGE PIVOT

90113-MCF-000

$7.60

BOLT, FLANGE (7X30)

90115-MKF-D60

$2.90

BOLT, TIE ROD (NOT AVAILABLE)

90165-MLL-D10

$5.84

NUT, FLANGE (7MM)

90202-KV3-000

$1.96

NUT, SPECIAL (6MM) (LEFT HAND THREAD)

90301-MGZ-J00

$2.10

WASHER, CHANGE PEDAL WAVE

90505-MBW-000

$3.84

WASHER (15.2X25)

90557-230-000

$2.21

CLIP, SWITCH COVER

90601-KAF-003

$2.47

CLAMP, HARNESS

90690-MEF-800

$1.21

NUT, HEX. (6MM)

94002-06070-0S

$0.72

CIRCLIP (OUTER) (15MM)

94511-15000

$0.63
