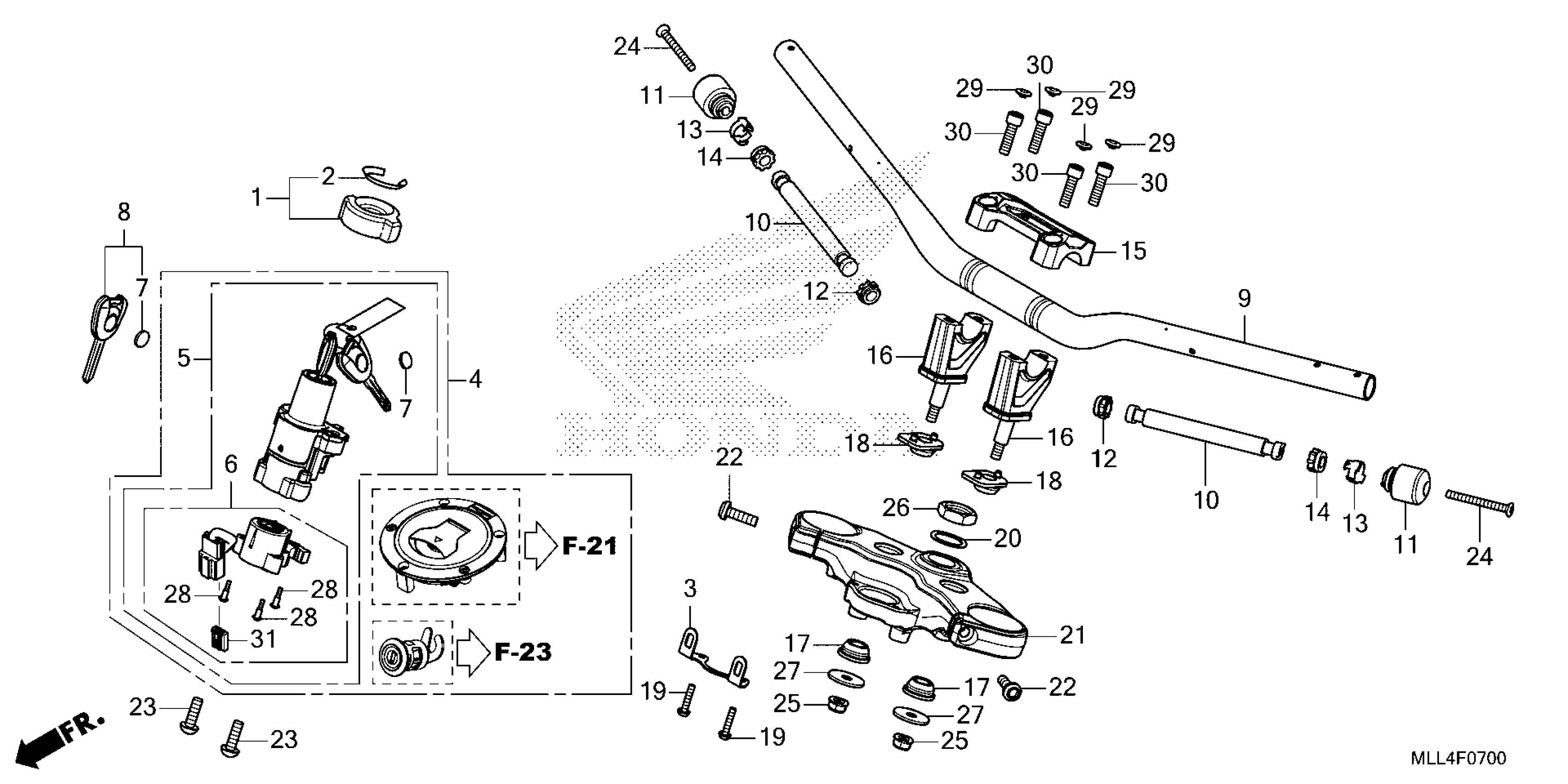

Honda CB1000SPAC (25) MOTORCYCLE, JPN, VIN# JH2SC861-SK000001 TO JH2SC861-SK099999 HANDLEBAR@TOP BRIDGE Diagram

#

Description
Price

1

COVER, COMBINATION SWITCH

35106-MAT-A00

$9.65

2

SEAL, IGNITION SWITCH

30433-MBW-602

$2.62

3

STAY, HARNESS CLIP (NOT AVAILABLE)

32109-MLL-D00

$3.94

4

LOCK SET

35010-MLL-A10

$313.94

5

SWITCH ASSY.

35100-MLL-A11

$106.37

6

BASE, CONTACT (NOT AVAILABLE)

35101-MLL-D01

$49.44

7

EMBLEM, KEY | (Optional).

35113-MJE-D00

$20.09

8

KEY, BLANK | (Optional).

35121-MJE-A02

$20.18

9

HANDLEBAR (NOT AVAILABLE)

53100-MLL-D00

Unavailable

10

WEIGHT B, HANDLEBAR (NOT AVAILABLE)

53105-MLL-D00

$12.54

11

WEIGHT, HANDLEBAR

53105-MN4-010

$19.95

12

RUBBER, HANDLE WEIGHT (B)

53107-KM9-000

$3.73

13

RING, HANDLE WEIGHT SNAP

53108-MJ0-000

$4.90

14

RUBBER B, HANDLE WEIGHT

53109-MM5-000

$3.56

15

HOLDER, HANDLE (UPPER)

53131-MKN-D50

$35.05

16

HOLDER, HANDLEBAR (LOWER)

53132-MKN-D50

$32.57

17

RUBBER, HANDLE CUSHION

53136-K2E-T00

$2.24

18

RUBBER, HANDLE CUSHION

53136-MKN-D50

$2.25

19

SCREW-WASHER (5X25)

53192-MFL-000

$1.71

20

WASHER, STEERING STEM NUT

53215-MKJ-D00

$1.82

21

BRIDGE, FORK TOP (NOT AVAILABLE)

53230-MLL-D00

$171.99

22

BOLT, SOCKET (8X28) (NOT AVAILABLE)

90104-MLL-D00

$2.85

23

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.80

24

SCREW, OVAL (6X60)

90191-KT7-750

$4.53

25

NUT, U (8MM)

90304-KPG-901

$0.90

26

NUT, STEERING STEM

90304-MEE-D00

$9.70

27

WASHER, HANDLE HOLDER (LOWER)

90535-K26-900

$2.40

28

SCREW, TAPPING (3X16)

91059-KY2-711

$2.83

29

CAP, SOCKET BOLT

91456-371-770

$3.31

30

BOLT, SOCKET (8X28)

96600-08028-08

$1.18

31

HOLDER, BRACKET (RED)

91554-SM4-003

$7.75
