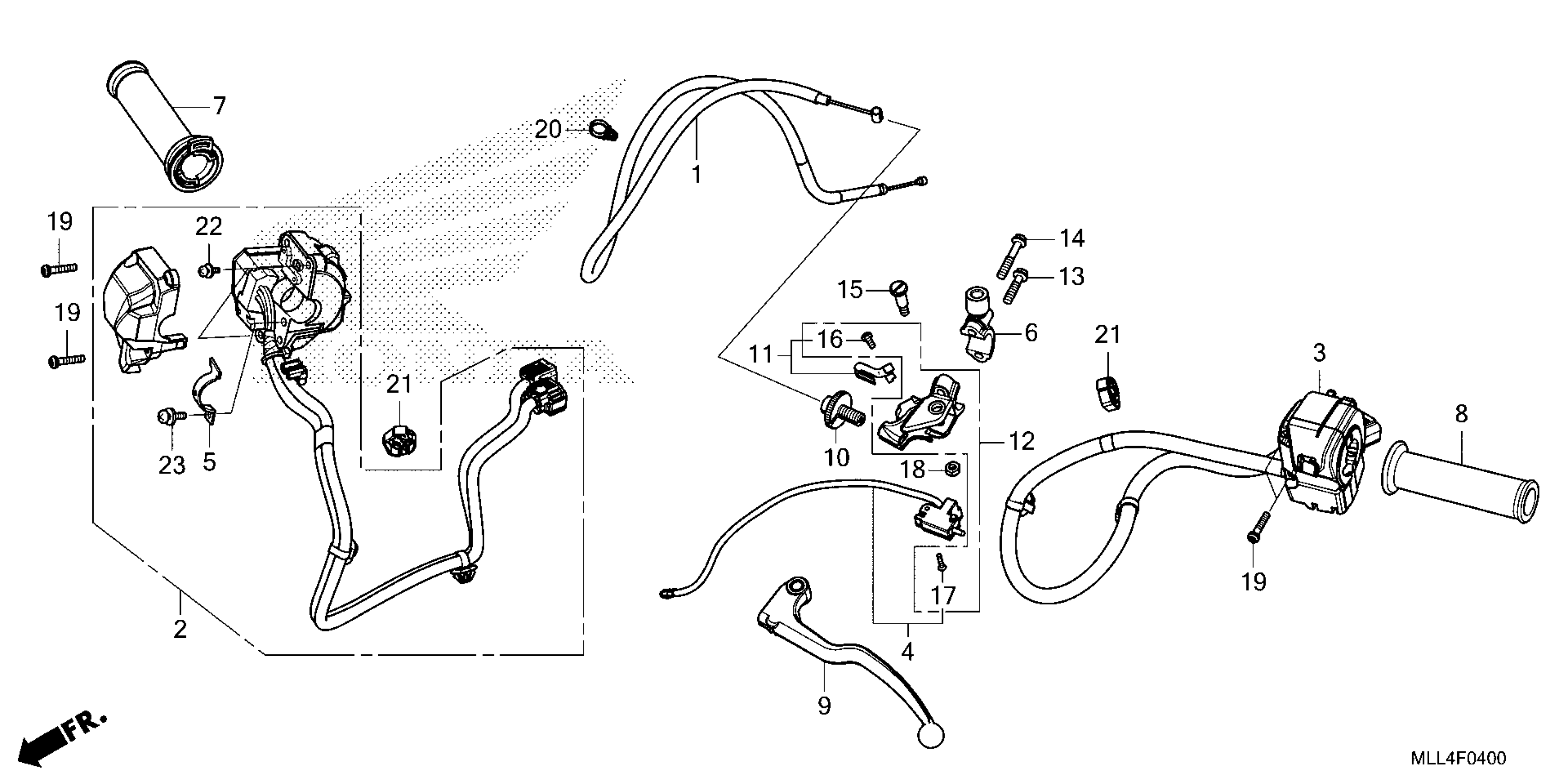

Honda CB1000SPAC (25) MOTORCYCLE, JPN, VIN# JH2SC861-SK000001 TO JH2SC861-SK099999 HANDLE LEVER@SWITCH@CABLE Diagram

CABLE, CLUTCH (NOT AVAILABLE)

22870-MLL-D01

$15.22

SWITCH UNIT, STARTER STOP & GRIP APS (NOT AVAILABLE)

35135-MLL-D11

$194.16

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-MLL-D01

$145.34

SWITCH SET, CLUTCH (NOT AVAILABLE)

35335-MLL-D00

$21.03

PLATE A, SETTING

37971-MLL-D01

$2.82

HOLDER, MASTER CYLINDER

45518-MFN-D01

$11.39

GRIP ASSY., THROTTLE

53140-MKF-D41

$32.08

GRIP, L. HANDLE

53166-MY9-890

$16.22

LEVER, L. HANDLE

53182-MCJ-750

$22.00

BOLT, CABLE ADJUSTING

53183-MCJ-750

$7.13

SPRING SET, CLUTCH LEVER

53190-MCJ-751

$3.84

BRACKET SET

53195-MKJ-E50

$30.87

BOLT, FLANGE (6X25)

90021-GHB-680

$2.09

BOLT, FLANGE (6X35)

90021-GHB-720

$2.25

BOLT, LEVER PIVOT

90122-MCJ-750

$4.59

SCREW, PAN (4X10)

90123-MCJ-751

$0.85

SCREW, PAN (3X20)

90124-MKJ-E51

$1.19

NUT, U (6MM)

90301-MCJ-750

$2.09

SCREW-WASHER (5X25)

90508-MGE-D00

$1.19

CLIP, WIRE HARNESS

90682-735-A01

$2.07

CLAMP, HARNESS

90690-MEF-800

$1.21

SCREW-WASHER (4X8)

93892-04008-08

$1.13

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.13

SCREW-WASHER (5X8)

93892-05008-08

$1.03
