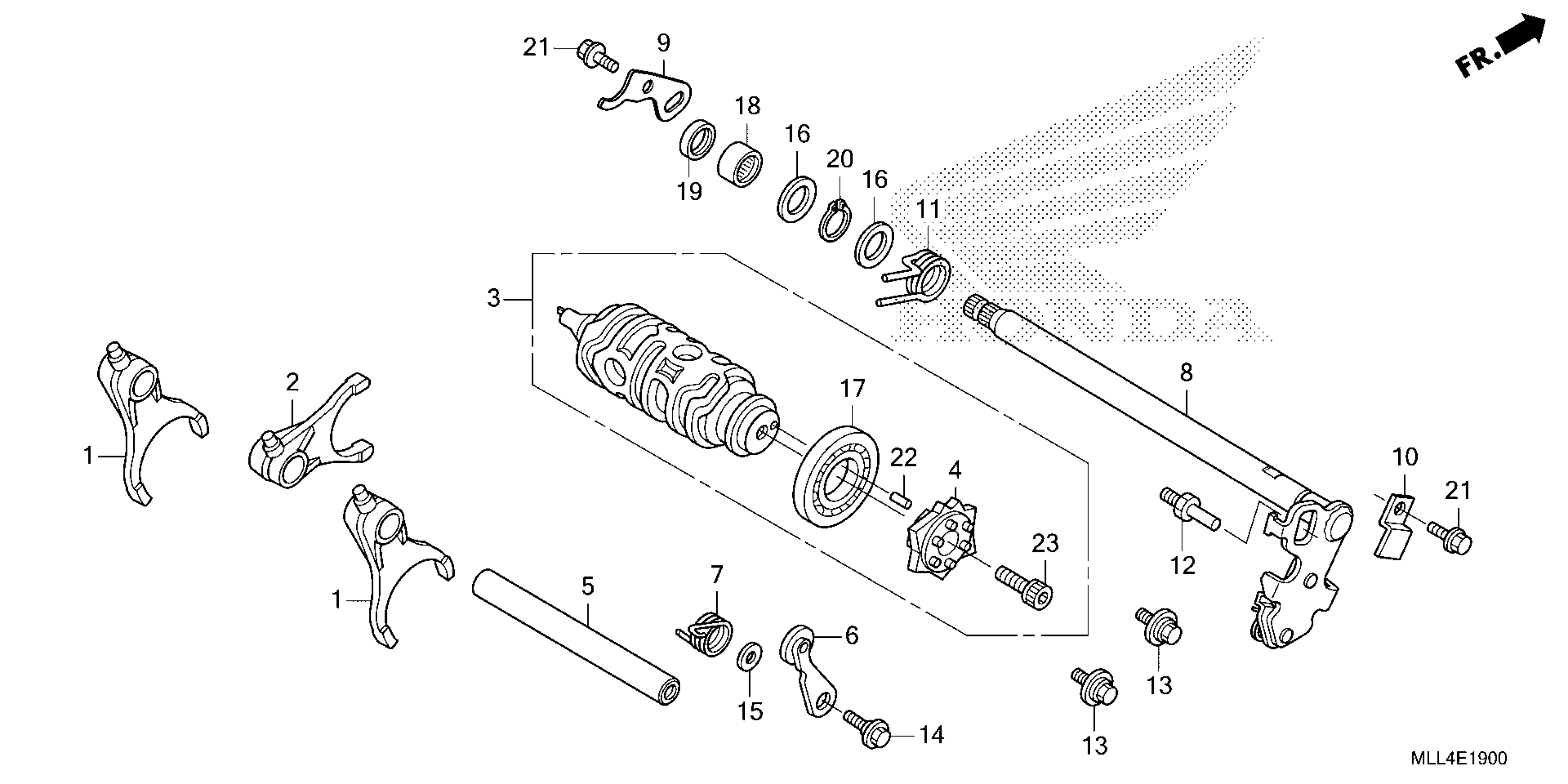

Honda CB1000SPAC (25) MOTORCYCLE, JPN, VIN# JH2SC861-SK000001 TO JH2SC861-SK099999 GEARSHIFT DRUM Diagram

FORK, GEARSHIFT (NOT AVAILABLE)

24211-MFL-700

$46.54

FORK, CENTER GEARSHIFT

24212-MFL-000

$58.52

DRUM, GEARSHIFT (NOT AVAILABLE)

24310-MLL-D00

$101.79

CENTER, SHIFT DRUM

24315-MV9-932

$43.39

SHAFT, GEARSHIFT FORK (NOT AVAILABLE)

24321-MLL-D00

$15.27

STOPPER, GEARSHIFT DRUM

24430-MFL-000

$14.33

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-MLL-D00

$2.54

SPINDLE, SHIFT (NOT AVAILABLE)

24610-MLL-D00

$63.66

PLATE, SPINDLE

24612-MKF-D60

$8.72

PLATE

24613-MKY-E20

$1.90

SPRING, SHIFT RETURN

24651-MAE-000

$8.20

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

BOLT-WASHER (6X12) (Honda Code 2551760)

90021-MM5-000

$5.12

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.48

WASHER, DRUM STOPPER

90417-360-000

$1.74

WASHER (14MM)

90451-155-000

$3.78

BRG (25X50X8)

91007-MLB-D01

$15.10

BEARING, NEEDLE (14X22X16)

91106-MCF-003

$11.31

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.81

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

ROLLER (4X8)

96220-40080

$1.49

BOLT, SOCKET (8X20)

96600-08020-10

$2.13
