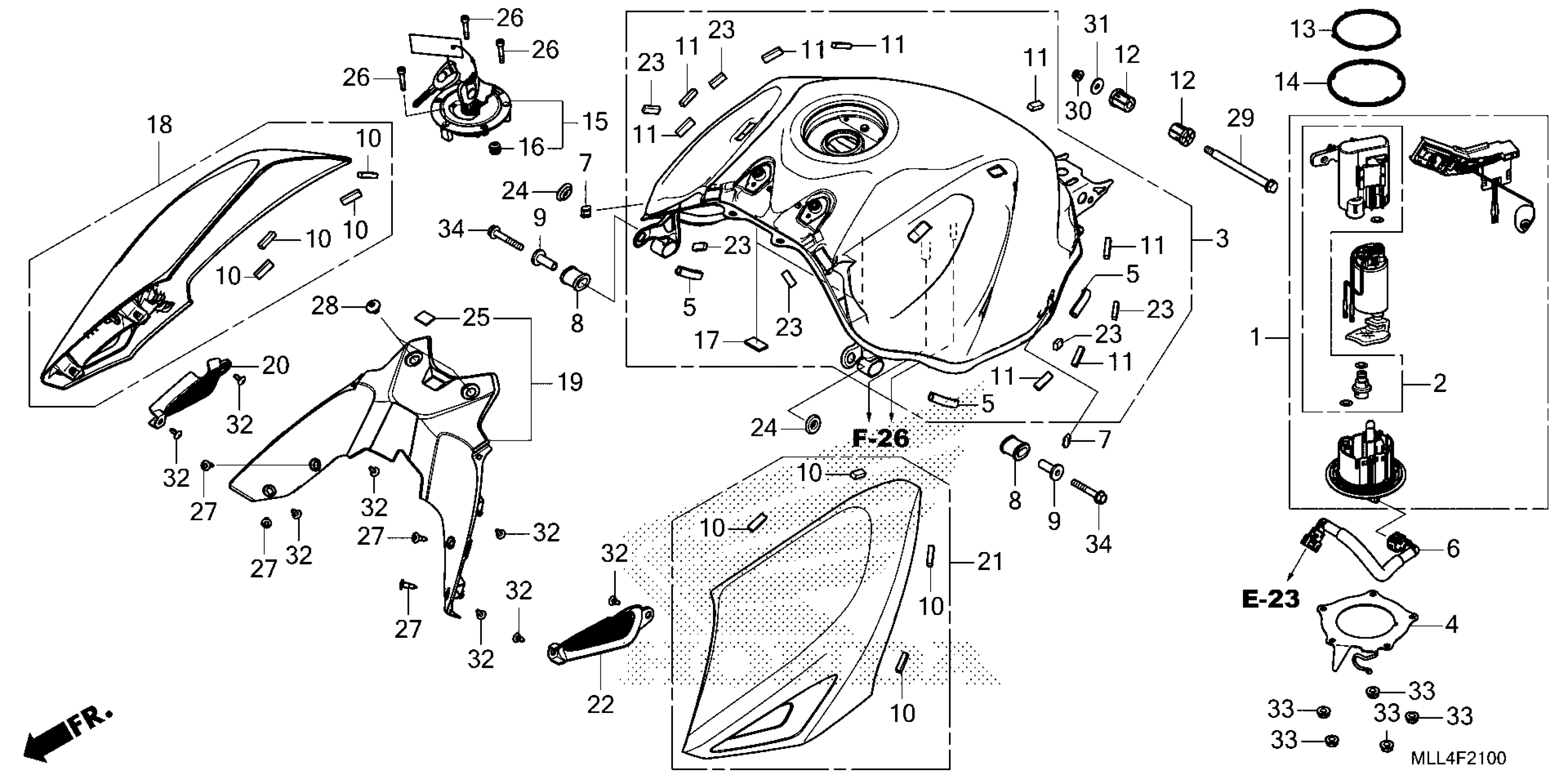

Honda CB1000SPAC (25) MOTORCYCLE, JPN, VIN# JH2SC861-SK000001 TO JH2SC861-SK099999 FUEL TANK@FUEL PUMP Diagram

PUMP UNIT, FUEL (NOT AVAILABLE)

16700-MLL-D01

$429.45

FILTER ASSY., FUEL (NOT AVAILABLE)

16730-MLL-D01

$66.84

TANK ASSY., FUEL (TYPE4) (NOT AVAILABLE)

17500-MLL-D00ZA

$815.19

PLATE, FUEL PUMP SETTING (NOT AVAILABLE)

17506-MLL-D00

$16.69

TRIM, FUEL TANK

17516-HC0-000

$4.49

HOSE, FUEL FEED (NOT AVAILABLE)

17526-MLL-D01

$39.84

RUBBER, TANK COVER

17529-K15-920

$2.20

RUBBER, FR. TANK MOUNTING

17534-MKN-D50

$2.75

COLLAR

17538-KZZ-900

$2.41

FASTENER C, DUAL LOCK (8X25)

17541-MJE-D00

$1.49

FASTENER, DUAL LOCK (8X25)

17541-MJP-G50

$2.26

CUSHION, RR. FUEL TANK PIVOT

17572-KPP-T00

$2.38

GASKET, FUEL PUMP

17572-MKT-D00

$20.49

DUST SEAL

17573-MKT-D00

$6.80

CAP COMP

17620-MJE-D04

$209.19

SEAL, BREATHER

17621-MGP-D62

$5.14

RUBBER, RADIATOR SHROUD

19036-GS2-600

$2.92

COVER ASSY., R. FUEL TANK (TYPE4) (WL) (NOT AVAILABLE)

64335-MLL-D00ZA

$193.65

COVER, FR. FUEL TANK (NOT AVAILABLE)

64341-MLL-D00

$16.69

MESH, R. TANK COVER (NOT AVAILABLE)

64342-MLL-D00

$3.56

COVER ASSY., L. FUEL TANK (TYPE4) (WL) (NOT AVAILABLE)

64435-MLL-D00ZA

$193.65

MESH, L. TANK COVER (NOT AVAILABLE)

64442-MLL-D00

$3.56

RUBBER, TAILLIGHT

80103-MFE-670

$1.49

GROMMET, SIDE COVER

83551-376-000

$2.97

EMBLEM, PRODUCT (UEHARA)

86150-GFC-902

$2.98

BOLT, SOCKET (4X24) (SUS)

90110-MGP-D60

$3.26

CLIP, BUMPER SEAL

90116-K2P-V61

$1.49

SCREW, PAN (6X8)

90130-MKN-D50

$1.49

BOLT, TANK HINGE

90135-MEJ-000

$3.44

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

WASHER (6.1MM)

90535-MKE-A00

$2.48

SCREW, TAPPING (4X10)

93903-24220

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

BOLT, FLANGE (6X38)

95701-06038-08

$1.80
