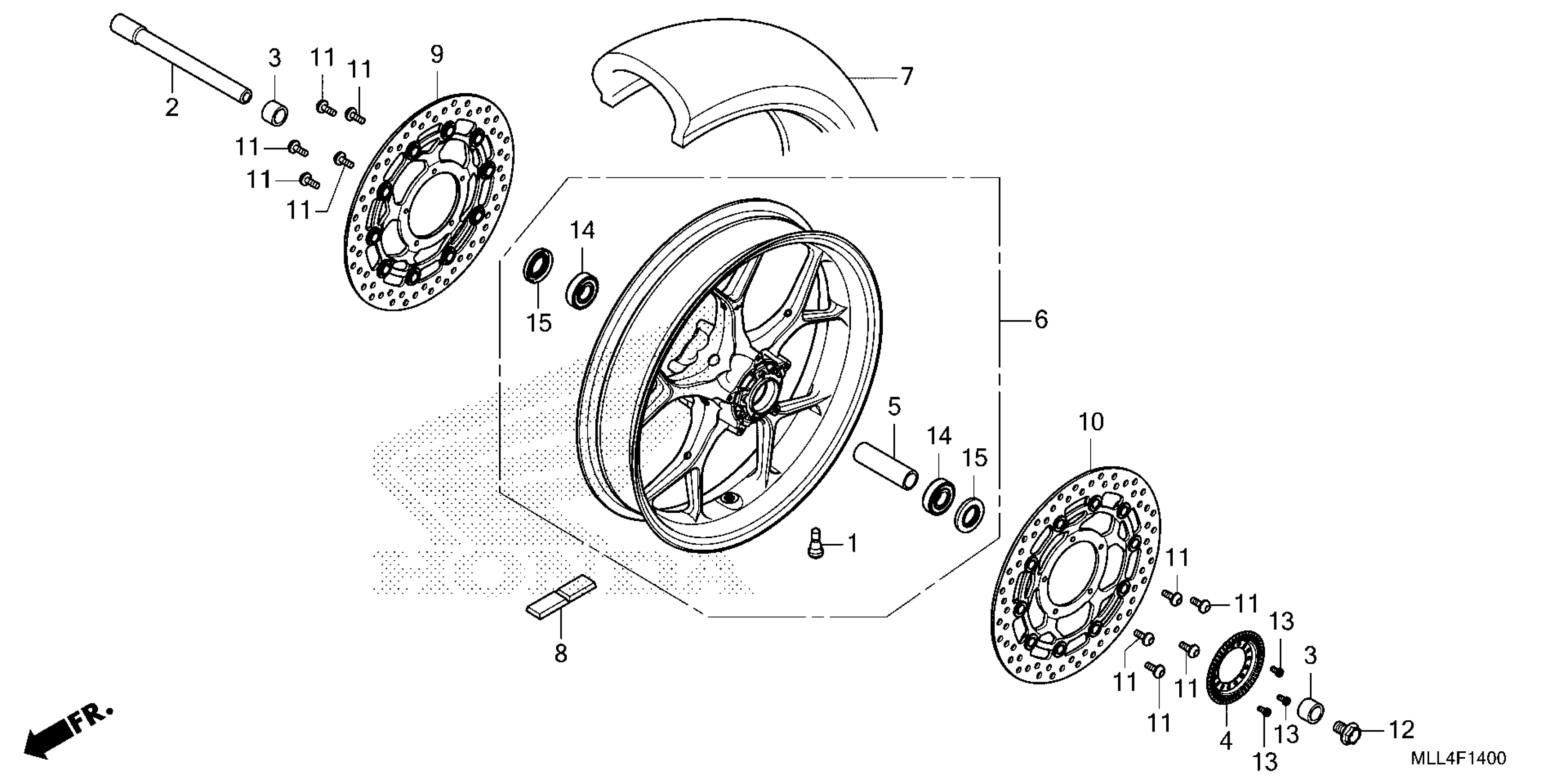

Honda CB1000SPAC (25) MOTORCYCLE, JPN, VIN# JH2SC861-SK000001 TO JH2SC861-SK099999 FRONT WHEEL Diagram

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-MLL-D00

$33.19

COLLAR, L. FR. WHEEL SIDE (BOTH SIDES)

44312-MCE-950

$10.72

RING, FR. PULSER

44515-MLB-D00

$24.16

COLLAR, FR. AXLE DISTANCE

44620-MGC-N20

$14.92

WHEEL SUB-ASSY., FR. (TYPE2) (NOT AVAILABLE)

44650-MLL-D00ZC

$579.05

TIRE, FR. (120/70ZR17) (M/C 58W) (DUNLOP) (NOT AVAILABLE)

44711-MLL-D01

$131.44

TIRE, FR. (120/70ZR17) (M/C 58W) (BS)

44711-MLL-D03

$128.53

WEIGHT, BALANCE (10G)

44721-MLN-EQ1

Unavailable

WEIGHT, BALANCE (15G)

44722-MLN-EQ1

Unavailable

WEIGHT, BALANCE (20G)

44723-MLN-EQ1

$3.80

DISK, R. FR. BRAKE (NOT AVAILABLE)

45120-MFP-601

$458.42

DISK, L. FR. BRAKE (NOT AVAILABLE)

45220-MFP-601

$458.42

BOLT (6X17)

90106-MJM-D30

$2.66

BOLT, FR. AXLE

90112-MKN-D50

$2.74

BOLT, TORX (5X10)

90131-MJM-D30

$3.31

BEARING, RADIAL BALL (6204UU) (NSK)

91053-MKY-D51

$15.62

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.98
