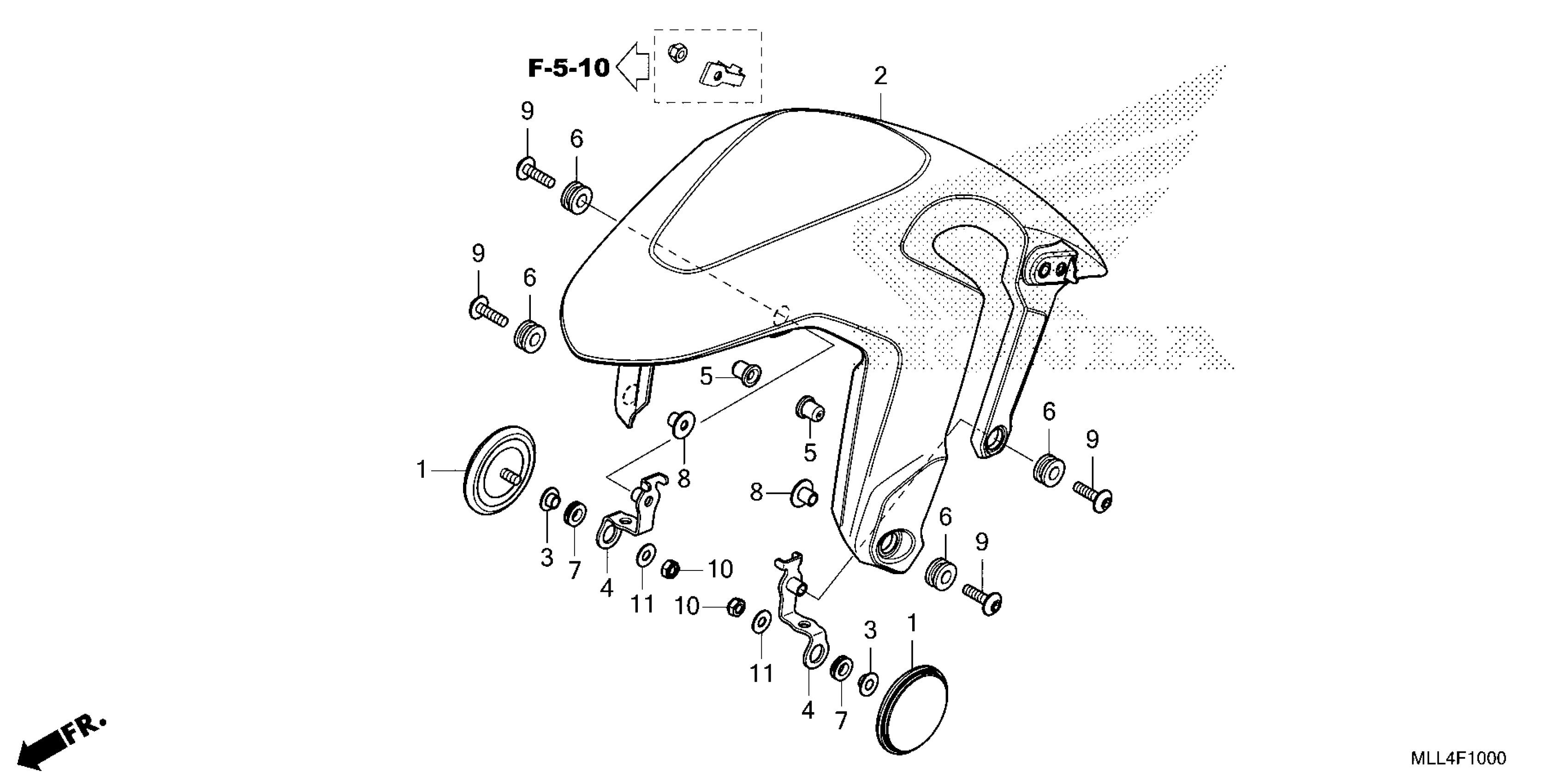

Honda CB1000SPAC (25) MOTORCYCLE, JPN, VIN# JH2SC861-SK000001 TO JH2SC861-SK099999 FRONT FENDER Diagram

REFLECTOR, FR. REFLEX (AMBER)

33741-KTG-U01

$6.36

FENDER, FR.

61101-MLB-D00

$85.60

COLLAR, REFLECTOR MOUNTING

61103-MKR-D10

$2.64

STAY, FR. REFLECTOR

61105-MKP-DN0

$4.70

BOOT, HEADLIGHT BRACKET

61312-149-300

$2.56

RUBBER, RR. FENDER CUSHION (FR.)

80101-165-000

$3.74

RUBBER, RR. COWL MOUNTING (FR.) (FOR FR.)

80123-MER-D00

$2.02

COLLAR, TAILLIGHT MOUNTING

84706-163-670

$4.08

SCREW, PAN (6X22)

90130-KYJ-900

$1.49

NUT, U (6MM)

90301-782-000

$1.62

WASHER, RR. COVER GROMMET (FOR FR.)

90439-MB0-000

$1.72
