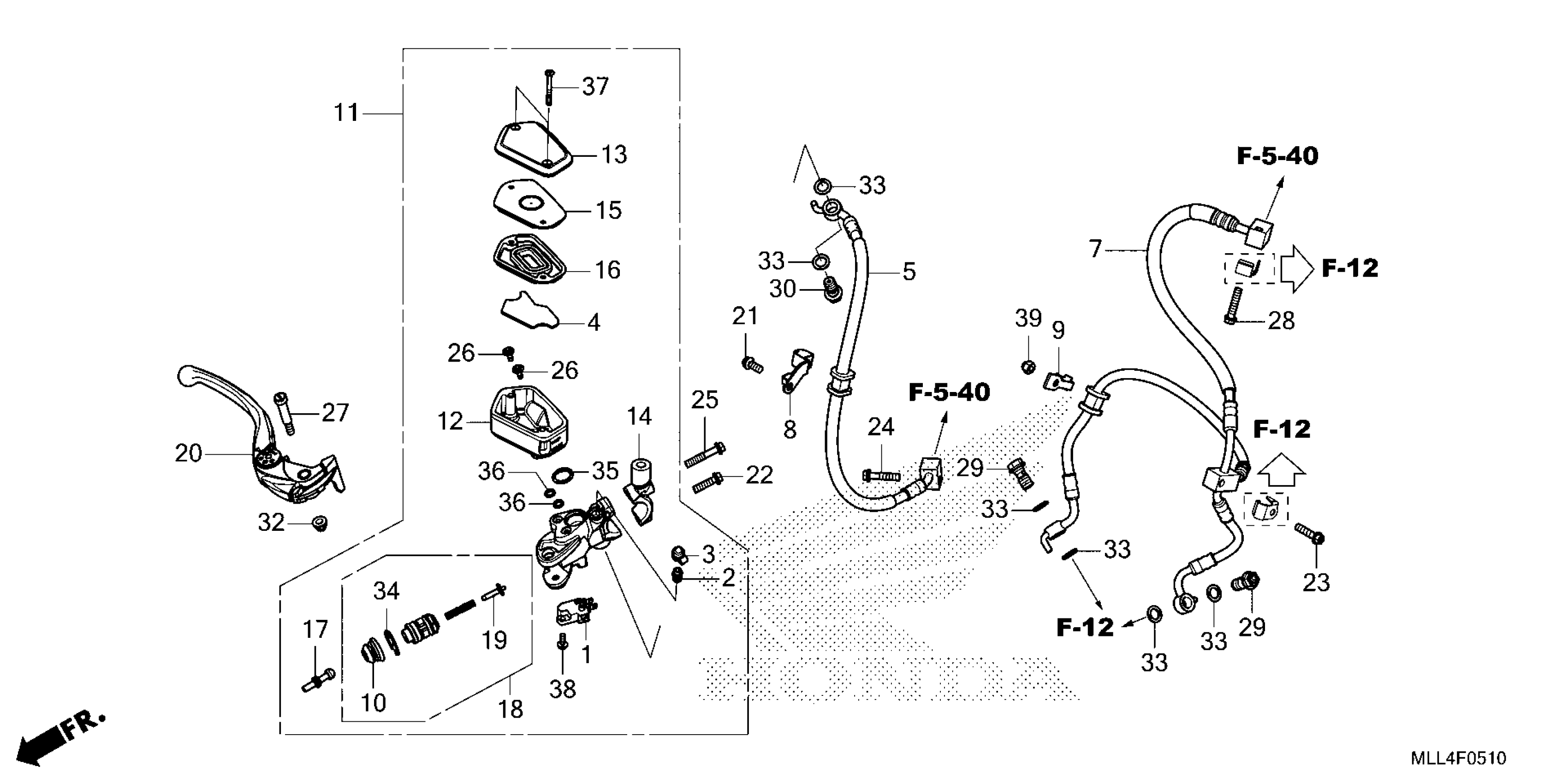

Honda CB1000SPAC (25) MOTORCYCLE, JPN, VIN# JH2SC861-SK000001 TO JH2SC861-SK099999 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.99

2

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

3

CAP, BLEEDER

43353-461-771

Unavailable

4

FLOAT

43523-MKJ-D01

$3.10

5

HOSE A, FR. BRAKE (NOT AVAILABLE)

45125-MLL-D11

$36.04

7

HOSE D, FR. BRAKE (NOT AVAILABLE)

45128-MLL-D11

$87.54

8

CLAMP A, FR. BRAKE HOSE (NOT AVAILABLE)

45155-MLL-D00

$4.50

9

CLAMP A, FR. BRAKE HOSE

45158-MFL-D00

$3.37

10

BOOT

45504-MCF-006

$10.31

11

MASTER CYLINDER SUB-ASSY., FR.

45510-MKJ-D01

$290.99

12

TANK, OIL

45511-MKJ-D01

$17.25

13

CAP

45513-MKJ-D01

$30.19

14

HOLDER, MASTER CYLINDER

45518-MFN-D01

$11.39

15

PLATE, DIAPHRAGM

45518-MGE-006

$7.44

16

DIAPHRAGM

45520-MGE-006

$14.00

17

ROD, PUSH

45525-MEL-016

$13.09

18

MASTER CYLINDER SET

45530-MFN-D01

$48.25

19

GUIDE, SPRING

46140-MEL-006

$4.10

20

LEVER ASSY., R. HANDLE

53170-MFL-006

$41.02

21

BOLT, FLANGE (6X14)

90021-GHB-630

$2.06

22

BOLT, FLANGE (6X22)

90021-GHB-670

$2.01

23

BOLT, FLANGE (6X25)

90021-GHB-680

$2.09

24

BOLT, FLANGE (6X28)

90021-GHB-690

$2.06

25

BOLT, FLANGE (6X32)

90021-GHB-710

$2.29

26

SCREW, TRIPLE (4X11)

90101-MR7-006

$2.87

27

BOLT, HANDLE LEVER

90114-MCF-006

$5.56

28

BOLT, FLANGE (6X28)

90114-MCS-G00

$1.29

29

BOLT, OIL (10X20)

90145-MKR-D10

$6.01

30

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

32

NUT, CAP (6MM)

90202-ZV0-000

$2.69

33

WASHER, OIL BOLT

90545-300-000

$5.79

34

CIRCLIP

90651-MCF-006

$2.09

35

O-RING (14.8X2.4)

91212-422-006

$2.37

36

O-RING (5.8X1.9) (NISSIN)

91355-MG9-006

$3.00

37

SCREW, FLAT (4X35)

93600-04035-1G

$0.44

38

SCREW-WASHER (4X12)

93893-04012-07

$1.32

38

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

39

NUT, CAP (6MM)

94021-06070-0S

$1.60
