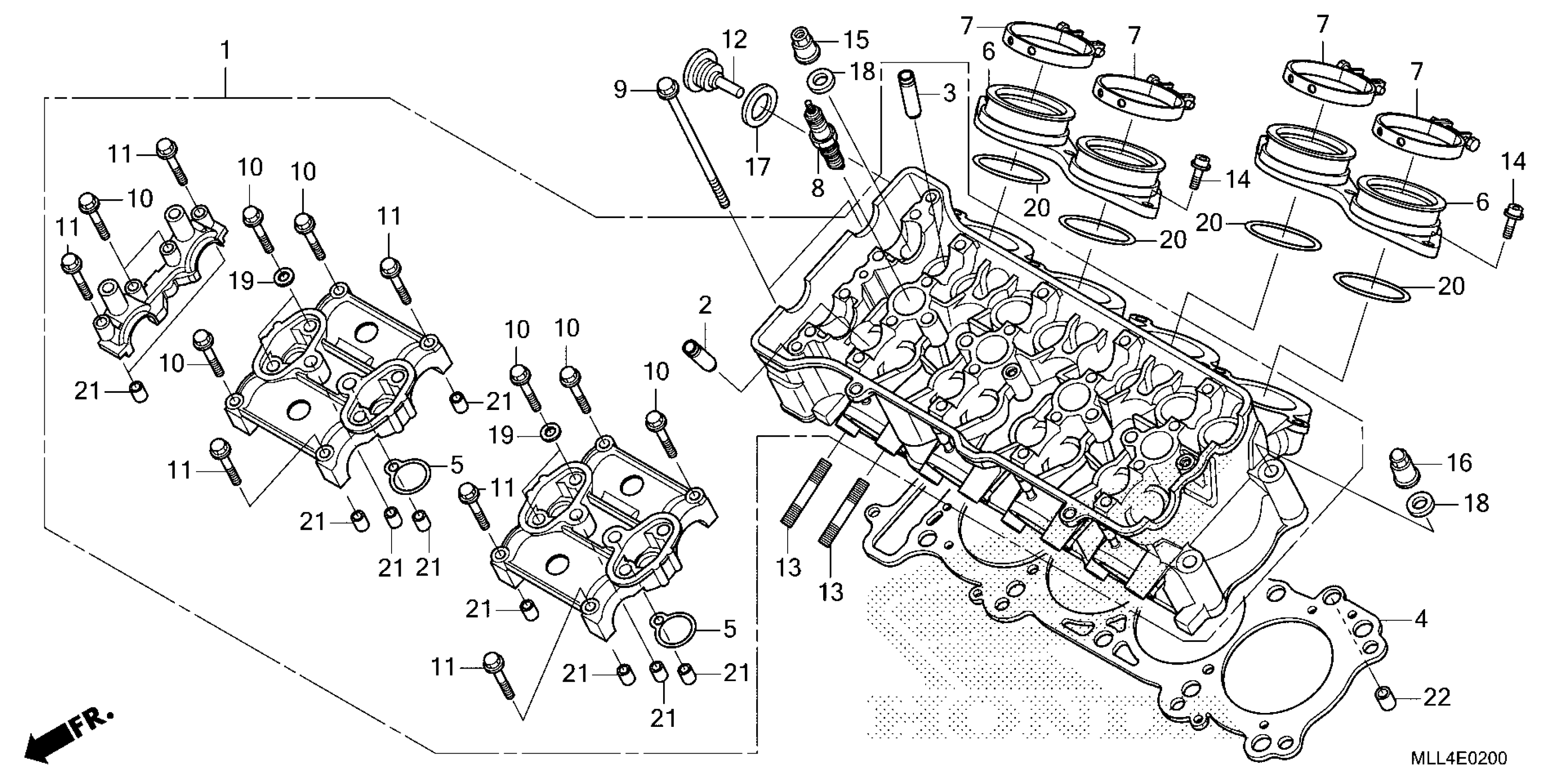

Honda CB1000SPAC (25) MOTORCYCLE, JPN, VIN# JH2SC861-SK000001 TO JH2SC861-SK099999 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY. (NOT AVAILABLE)

12010-MLL-D00

$1.00

GUIDE, VALVE (OVER SIZE) (EXHAUST SIDE)

12204-MBW-305

$15.97

GUIDE, VALVE (OVER SIZE) (INLET SIDE)

12204-MFL-305

$16.93

GASKET, CYLINDER HEAD

12251-MFL-003

$89.73

GASKET, PLUG HOLE

12395-MBW-003

$4.66

INSULATOR, THROTTLE BODY (NOT AVAILABLE)

16210-MLL-D00

$43.03

BAND, INSULATOR

16218-MKF-D40

$8.38

SPARK PLUG (IMR9E-9HES) (NGK)

31912-MFL-003

$16.38

SPARK PLUG (VUH27ES) (DENSO)

31922-MEL-003

$29.27

BOLT, FLANGE (6X105)

90012-MFL-000

$3.36

BOLT, FLANGE (6X37)

90016-KT7-000

$2.92

BOLT, FLANGE (6X48) (Honda Code 0717256)

90018-425-000

$3.35

SHAFT B, CAM CHAIN TENSIONER

90023-MFL-000

$23.98

BOLT, STUD (8X24)

90035-MM5-000

$5.12

BOLT, FLANGE SOCKET (6X16)

90071-MEL-000

$2.25

NUT, SPECIAL (9MM)

90232-MFL-000

$3.74

NUT, SPECIAL CAP (9MM)

90234-MFL-000

$5.13

WASHER, SEALING (24MM)

90403-MFL-000

$1.49

WASHER, PLAIN (9MM)

90405-MFL-000

$2.13

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

O-RING (44.3X2.5)

91301-MEL-003

$4.45

PIN, DOWEL (8X20) (Honda Code 1417369)

94301-08200

$2.25

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.28
