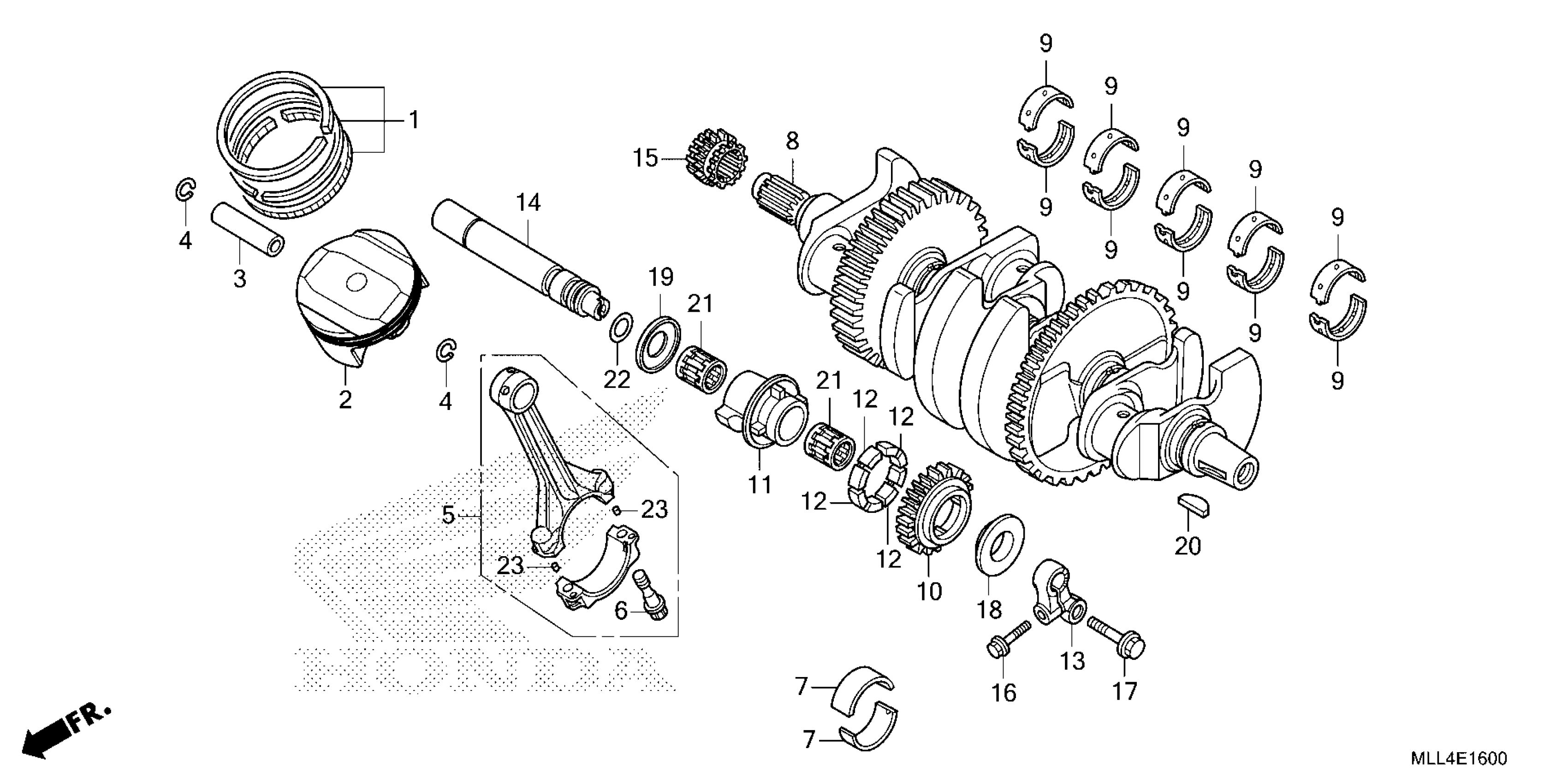

Honda CB1000SPAC (25) MOTORCYCLE, JPN, VIN# JH2SC861-SK000001 TO JH2SC861-SK099999 CRANKSHAFT@PISTON Diagram

RING SET, PISTON

13031-MLL-D00

$31.95

PISTON (NOT AVAILABLE)

13101-MLL-D00

$85.70

PIN, PISTON (NOT AVAILABLE)

13111-MLL-D00

$12.43

CLIP, PISTON PIN (17MM)

13112-MEL-000

$2.57

ROD ASSY., CONNECTING

13210-MKF-D40

$221.66

BOLT, CONNECTING ROD

13213-MFL-003

$5.80

BEARING A, CONNECTING ROD (BLUE)

13214-MKF-D41

$12.92

BEARING B, CONNECTING ROD (BLACK)

13215-MKF-D41

$12.17

BEARING C, CONNECTING ROD (BROWN)

13216-MKF-D41

$12.17

BEARING D, CONNECTING ROD (GREEN)

13217-MKF-D41

$12.17

BEARING E, CONNECTING ROD (YELLOW)

13218-MKF-D41

$12.17

CRANKSHAFT (NOT AVAILABLE)

13310-MLL-D00

$808.22

BEARING B, CRANKSHAFT (BROWN)

13314-MFL-003

$9.65

BEARING C, CRANKSHAFT (GREEN)

13315-MFL-003

$9.65

BEARING D, CRANKSHAFT (YELLOW)

13316-MFL-003

$9.65

BEARING E, CRANKSHAFT (PINK)

13317-MFL-003

$9.65

BEARING F, CRANKSHAFT (RED)

13318-MFL-003

$9.65

GEAR, BALANCER (26T)

13421-MFL-000

$96.56

WEIGHT, BALANCER (NOT AVAILABLE)

13430-MLL-D00

$73.58

RUBBER, DAMPER

13435-MFL-000

$2.59

HOLDER, BALANCER SHAFT

13436-MM5-000

$55.44

SHAFT, BALANCER

13440-MKF-D40

$124.34

SPROCKET, TIMING

14312-MFL-010

$30.90

BOLT, FLANGE (6X18)

90031-GHB-650

$2.15

BOLT, FLANGE (8X25)

90037-GHB-680

$2.30

WASHER A, BALANCER SIDE

90457-MAT-000

$5.69

WASHER B, BALANCER SIDE

90458-MAT-000

$5.26

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

BEARING B, NEEDLE (18X27X23.8) (BLUE)

91015-MEL-003

$20.93

BEARING C, NEEDLE (18X27X23.8) (WHITE)

91016-MEL-003

$20.93

BEARING D, NEEDLE (18X27X23.8) (GREEN)

91017-MEL-003

$20.02

O-RING (15X2.5) (Honda Code 0386995)

91302-377-000

$5.31

PIN C, DOWEL (4X6.5)

94303-04065

$2.14
