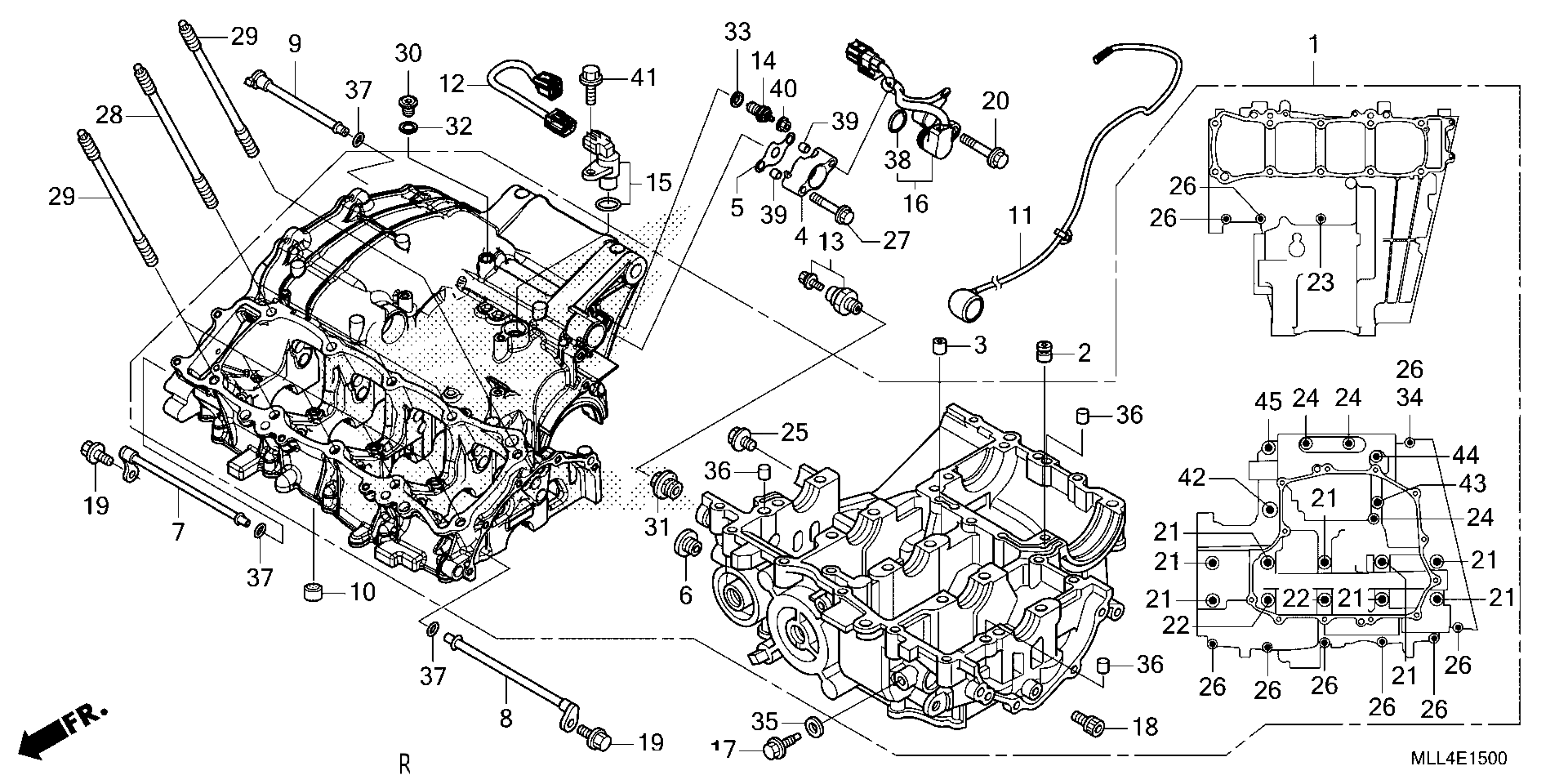

Honda CB1000SPAC (25) MOTORCYCLE, JPN, VIN# JH2SC861-SK000001 TO JH2SC861-SK099999 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11000-MKF-D41

$1,864.72

2

ORIFICE

11206-MFL-000

$5.60

3

ORIFICE (1.1MM)

11207-MFL-000

$3.47

4

HOLDER, ANGLE SENSOR (NOT AVAILABLE)

11521-MLL-D00

$14.69

5

GASKET, ANGLE SENSOR HOLDER (NOT AVAILABLE)

11522-MLL-D01

$1.75

6

BOLT, SEALING (20MM)

12208-PR3-000

$8.94

7

PIPE, R. OIL JET

15330-MFL-000

$63.93

8

PIPE, L. OIL JET

15340-MFL-000

$63.93

9

PIPE, TRANSMISSION OIL JET

15350-MFL-000

$44.16

10

ORIFICE (1MM)

15351-MFJ-D00

$6.94

11

SUB-HARNESS, ENGINE (NOT AVAILABLE)

32101-MLL-D00

$7.03

12

SUB-HARNESS, SPEED SENSOR (NOT AVAILABLE)

32106-MLL-D00

$7.03

13

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$38.96

14

SWITCH ASSY., NEUTRAL

35600-MKF-D41

$19.99

15

SENSOR ASSY., SPEED (NOT AVAILABLE)

37700-MFL-681

$53.09

16

SENSOR ASSY., ANGLE (350DEG) (NOT AVAILABLE)

38800-MLL-D01

$122.03

17

BOLT, SPECIAL (6X18)

90004-MM5-000

$2.06

18

BOLT, SOCKET (8X12)

90010-MEL-000

$1.75

19

BOLT, KNOCK (6MM)

90011-MFJ-D00

$2.80

20

BOLT, KNOCK (6MM)

90012-MKF-D40

$5.88

21

BOLT, FLANGE (9X105)

90015-MFL-003

$4.69

22

BOLT, FLANGE (9X126)

90016-MFL-003

$5.02

23

BOLT, FLANGE (7X60)

90017-MEL-000

$2.13

24

BOLT, FLANGE (7X50)

90017-MFL-000

$2.06

25

BOLT, SEALING (8MM)

90019-MAT-000

$6.24

26

BOLT, FLANGE (7X40)

90019-MFA-D00

$1.87

27

BOLT, FLANGE (6X35) (S-NSHF)

90028-GHB-720

$1.01

28

BOLT, STUD (9X145.5)

90032-MFL-000

$12.25

29

BOLT, STUD (9X134)

90033-MFL-000

$11.76

30

BOLT, SPECIAL (10X12)

90044-MKC-A00

$4.12

31

BOLT, SEALING (22MM)

90048-MFL-000

$8.78

32

WASHER, SEALING (10.2MM)

90443-MB0-000

$2.80

33

WASHER, NEUTRAL

90443-MJ6-000

$1.78

34

WASHER, SEALING (7MM)

90447-KE1-000

$2.46

35

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

36

PIN, DOWEL (10X16) (Honda Code 3906971)

90701-MV9-670

$4.10

37

O-RING (4.8X1.9) (NOK) O-RING (7.7X2.3) (ARAI) This part replaces 91307-422-000.

91313-MA6-005

$2.41

37

O-RING (4.8X1.9) (NOK) O-RING (7.7X2.3) (ARAI)

91313-MA6-005

$2.41

38

O-RING (16.5X2.5)

91310-MGE-D01

$4.44

39

PIN, DOWEL (8X7)

91320-KE1-000

$2.06

40

NUT, FLANGE (4MM)

94050-04000

$1.22

41

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.63

42

BOLT, FLANGE (8X50)

95701-08050-00

$2.80

43

BOLT, FLANGE (8X55)

95701-08055-07

$1.71

44

BOLT, FLANGE (8X80)

95701-08080-00

$1.59

45

BOLT, FLANGE (10X60)

95701-10060-00

$1.82
