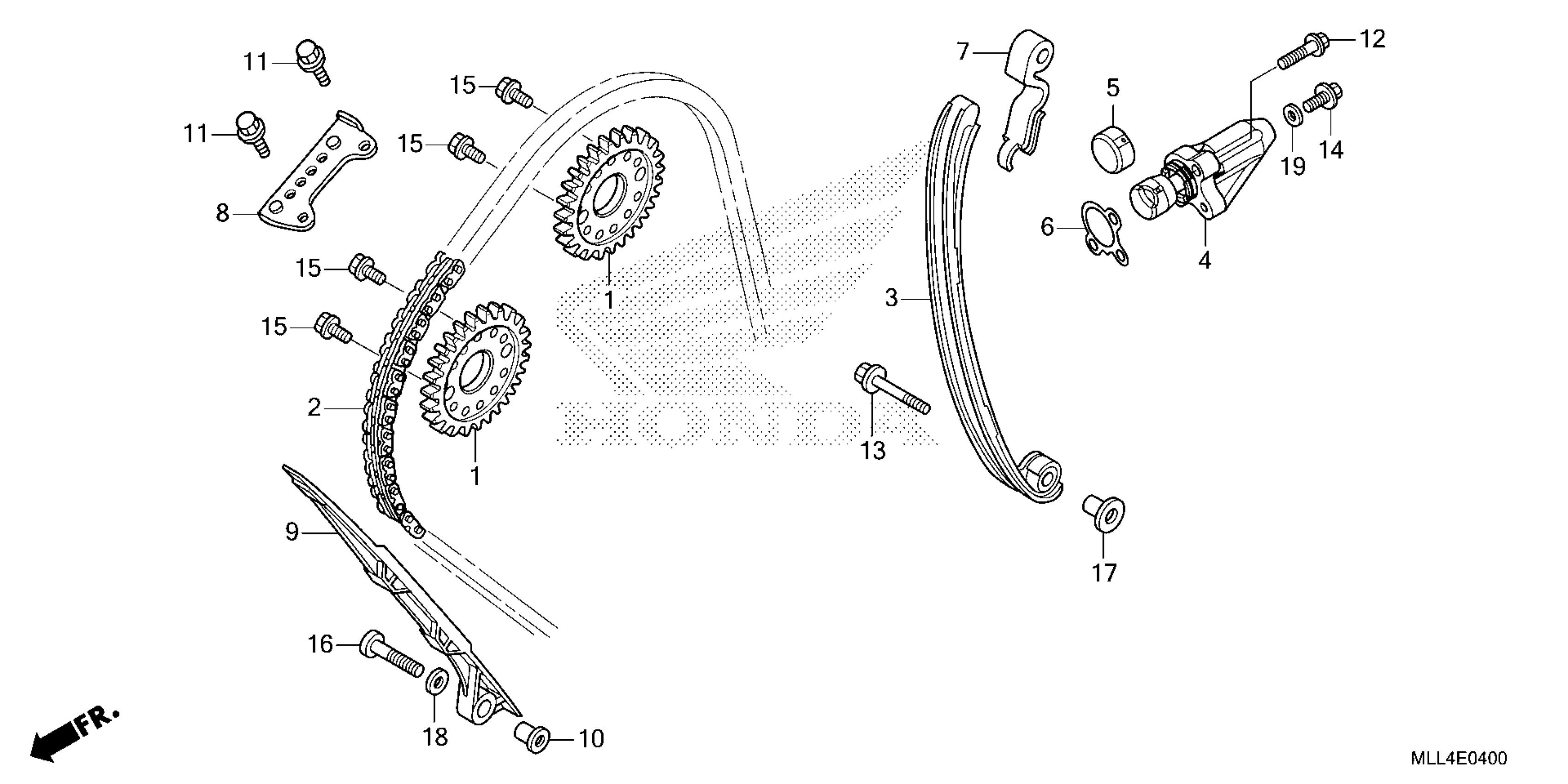

Honda CB1000SPAC (25) MOTORCYCLE, JPN, VIN# JH2SC861-SK000001 TO JH2SC861-SK099999 CAM CHAIN@TENSIONER Diagram

SPROCKET, CAM (34T)

14321-MFL-000

$36.23

CHAIN, CAM (124L)

14401-MFL-003

$73.67

TENSIONER A, CAM CHAIN

14510-MFL-010

$66.21

LIFTER ASSY., TENSIONER (NOT AVAILABLE)

14520-MLL-D01

$66.75

CAP, LIFTER PAT (NOT AVAILABLE)

14524-MY9-690

$3.34

GASKET, TENSIONER HOLE

14525-MFA-D01

$5.62

TENSIONER B, CAM CHAIN (NOT AVAILABLE)

14530-MLL-D00

$57.90

GUIDE B, CAM CHAIN

14546-MCJ-000

$41.78

GUIDE A, CAM CHAIN

14620-MFL-003

$55.46

COLLAR (6MM)

14626-MCJ-000

$2.80

BOLT, KNOCK (6MM)

90011-MFJ-D00

$2.80

BOLT, FLANGE (6X25)

90022-GHB-680

$2.15

PIVOT, CAM CHAIN TENSIONER

90022-MFJ-D00

$2.07

BOLT, FLANGE (6X10)

90028-GHB-610

$1.78

BOLT, FLANGE KNOCK (7X10.5) (Honda Code 1824291)

90082-HA0-000

$1.82

BOLT, TORX (6X32)

90108-MEL-000

$1.96

COLLAR, CAM CHAIN TENSIONER

90401-MFL-000

$5.35

WASHER (6MM)

90408-KW1-900

$3.91

WASHER, SEALING (6MM)

90442-397-000

$2.60
