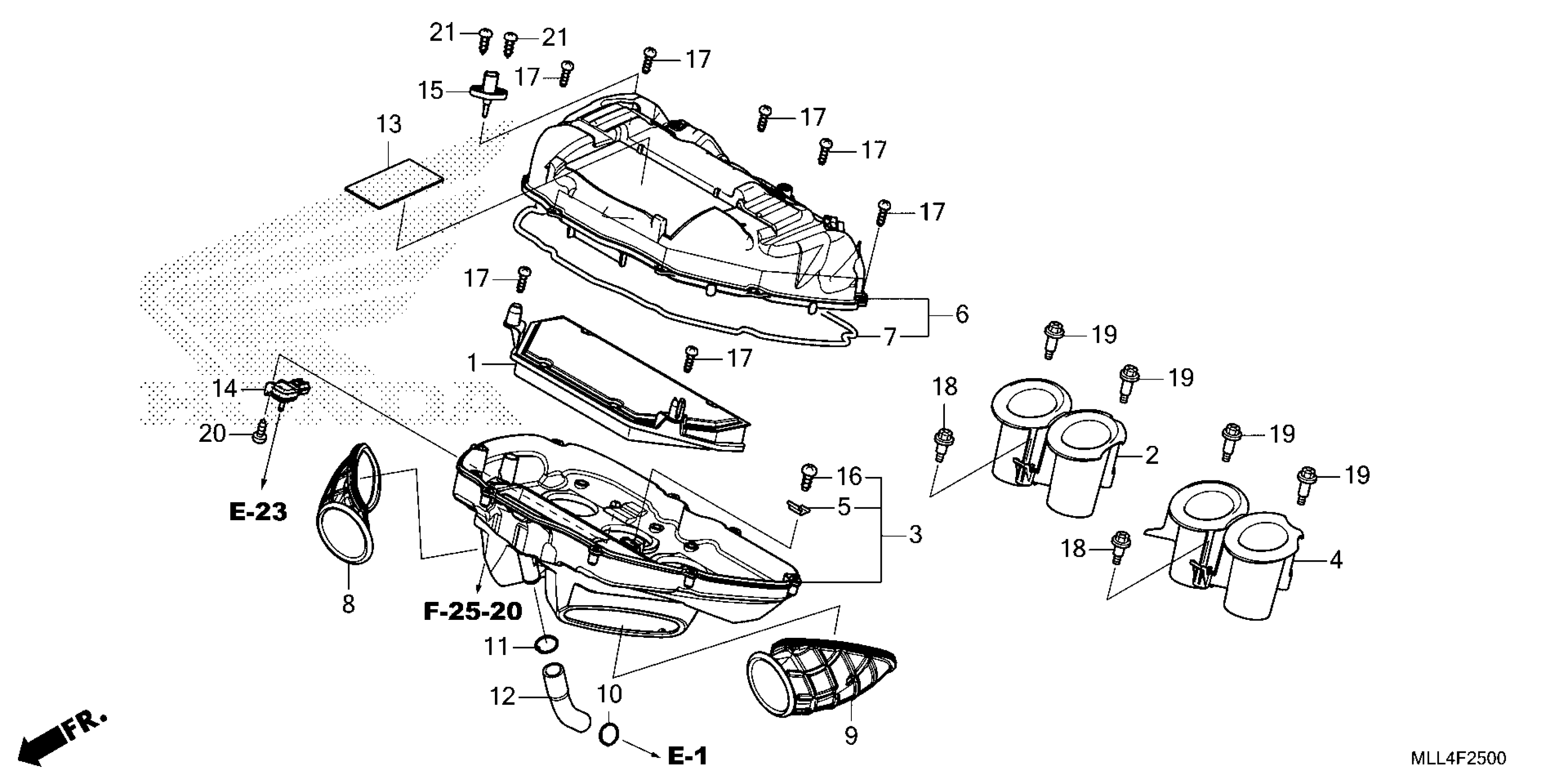

Honda CB1000SPAC (25) MOTORCYCLE, JPN, VIN# JH2SC861-SK000001 TO JH2SC861-SK099999 AIR CLEANER Diagram

ELEMENT, AIR CLEANER (NOT AVAILABLE)

17210-MKF-K40

$46.18

FUNNEL, R. AIR (NOT AVAILABLE)

17215-MLL-D00

$18.90

HOUSING, AIR CLEANER (LOWER) (NOT AVAILABLE)

17220-MLL-D00

$73.44

FUNNEL, L. AIR (NOT AVAILABLE)

17225-MLL-D00

$18.90

RETAINER, AIR CLEANER ELEMENT

17227-MEE-000

$5.20

HOUSING, AIR CLEANER (UPPER) (NOT AVAILABLE)

17230-MLL-D00

$81.06

SEAL, AIR CLEANER

17232-MKF-D40

$8.72

DUCT, R. AIR (NOT AVAILABLE)

17255-MLL-D00

$25.03

DUCT, L. AIR (NOT AVAILABLE)

17265-MLL-D00

$25.03

CLIP B, TUBE CLIP, SUB-TANK HOSE

17366-MJ0-000

$2.25

CLIP, TUBE

17366-MKF-D40

$2.25

TUBE, ENGINE BREATHER

17551-MKF-D40

$8.87

RUBBER, BATTERY CUSHION

31511-107-300

$4.69

SENSOR ASSY., MAP

37830-MKZ-J31

$98.98

SENSOR ASSY., AIR TEMPERATURE

37880-KWW-C01

$44.57

SCREW, TAPPING (5X12) (DELTA PT)

90101-HW4-680

$1.74

SCREW, TAPPING (4X18) (DELTA PT)

90105-MFJ-D00

$2.05

SCREW, PAN (5MM)

91508-MGP-D00

$3.75

SCREW, PAN (5MM)

91508-MKF-D40

$3.19

SCREW, TAPPING (5X20)

93903-25480

$1.49

SCREW, TAPPING (5X20) (Honda Code 3344546)

93903-254J0

$1.49
