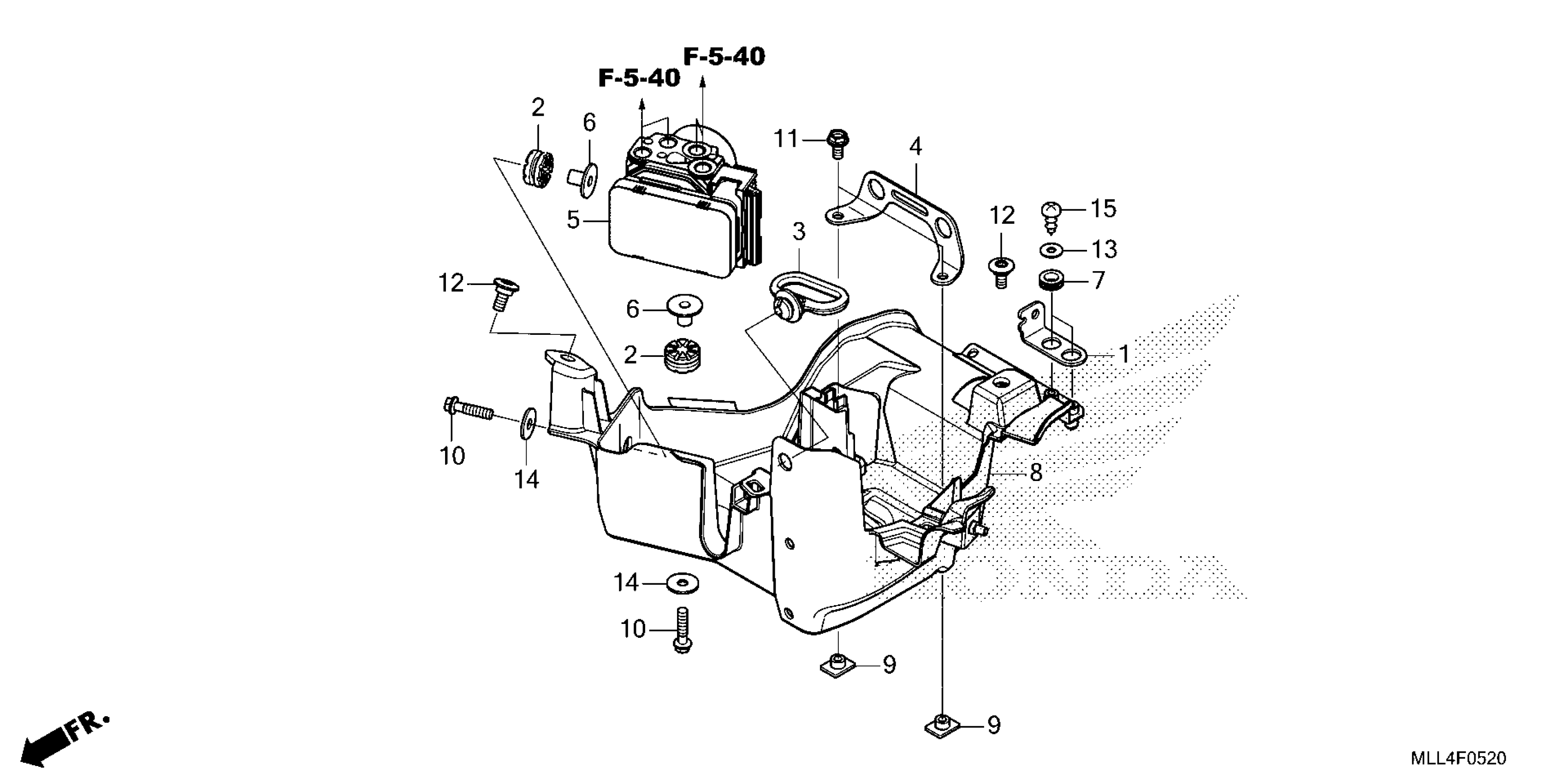

Honda CB1000SPAC (25) MOTORCYCLE, JPN, VIN# JH2SC861-SK000001 TO JH2SC861-SK099999 ABS MODULATOR Diagram

STAY (PCSV) (NOT AVAILABLE)

17430-MLL-D00

$4.18

RUBBER A, TAILLIGHT MOUNTING

33705-KW7-900

$2.24

GUIDE, FR.

45451-K52-N70

$3.82

STAY, BANK ANGLE SENSOR (NOT AVAILABLE)

50355-MLL-D00

$6.18

MODULATOR ASSY. (NOT AVAILABLE)

57110-MLL-D01

$1,013.43

COLLAR, FR. FENDER (BLACK) (FOR RR.)

61104-428-730

$4.01

RUBBER, SIDE COVER

64535-MFJ-D00

$1.79

TRAY, ABS MODULATOR (NOT AVAILABLE)

80111-MLL-D00

$21.12

NUT, SPECIAL (6X7)

81321-K97-T00

$1.19

BOLT, FLANGE (6X25)

90021-GHB-680

$2.09

BOLT, FLANGE (6X12)

90030-GHB-620

$1.97

BOLT, FR. DISK COVER (FOR RR.)

90114-MAC-780

$2.95

WASHER, STOPPER

90483-041-000

$1.78

WASHER, PLAIN (6MM)

90502-MKJ-D00

$4.53

SCREW, TAPPING (5X16)

93903-35310

$0.76
