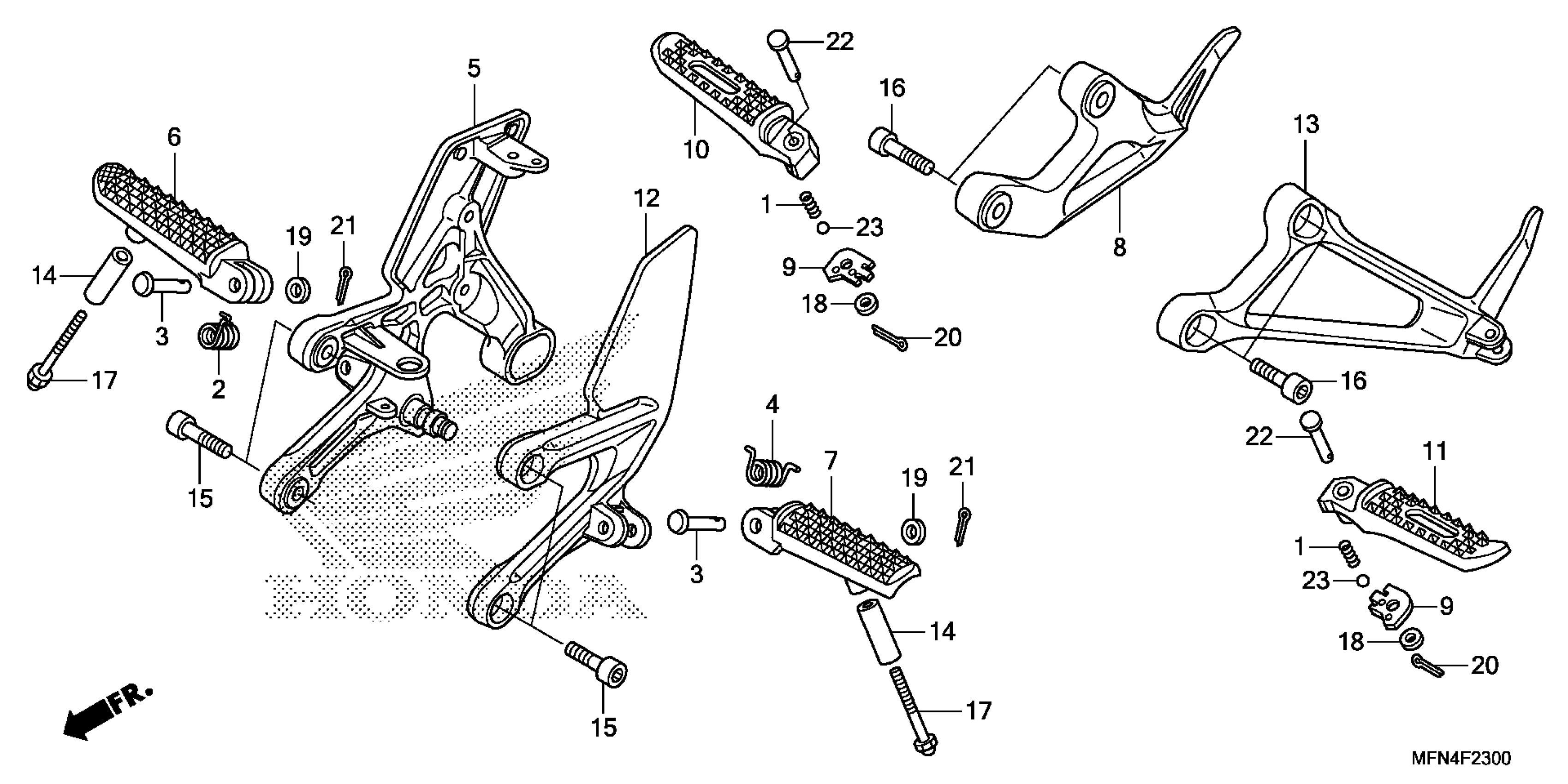

Honda CB1000RAC (14) MOTORCYCLE, ITA, VIN# ZDCSC601-EF215001 STEP Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

2

SPRING, R. STEP RETURN

50617-MCJ-750

$4.05

3

PIN, STEP BAR

50639-ML0-010

$4.84

4

SPRING, L. STEP RETURN

50644-MCJ-750

$4.05

5

HOLDER, R. MAIN STEP *NH109MS* (SHOT SILVER METALLIC SPECIAL) | Cynos gray metallic NH312M; Pearl cool white NHA16P;

50655-MFN-D00ZC

$124.43

6

ARM, R. MAIN STEP (COO)

50660-MEL-305

$45.62

7

ARM, L. MAIN STEP (COO)

50665-MEL-305

$45.62

8

HOLDER, R. PILLION STEP *NH109MS* (SHOT SILVER METALLIC SPECIAL) | Cynos gray metallic NH312M; Pearl cool white NHA16P;

50665-MFN-D00ZC

$66.35

9

PLATE, PILLION STEP CLICK

50718-MEE-D00

$2.44

10

ARM, R. PILLION STEP (COO)

50720-MEL-305

$46.24

11

ARM, L. PILLION STEP (COO)

50730-MEL-305

$53.35

12

HOLDER, L. MAIN STEP *NH109MS* (SHOT SILVER METALLIC SPECIAL) | Cynos gray metallic NH312M; Pearl cool white NHA16P;

50755-MFN-D00ZC

$66.18

13

HOLDER, L. PILLION STEP *NH109MS* (SHOT SILVER METALLIC SPECIAL) | Cynos gray metallic NH312M; Pearl cool white NHA16P;

50765-MFN-D00ZC

Unavailable

14

COLLAR, STEP (LOWER)

51486-MFN-D00

$6.63

15

BOLT, SOCKET (8X22)

90157-ME9-000

$5.45

16

BOLT, SOCKET (8X26)

90158-KY4-900

$2.62

17

BOLT, HEX. CAP (6X65)

92501-06065-0A

$1.96

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

18

WASHER, PLAIN (6MM)

94101-06800

Unavailable

19

WASHER, PLAIN (8MM)

94102-08000

$0.87

20

PIN, SPLIT (1.6X12)

94201-16120

$1.04

21

PIN, SPLIT (2.0X15)

94201-20150

$1.04

22

PIN C, PILLION STEP

95015-83000

$2.22

23

BALL, STEEL (#8) (1/4)

96211-08000

Unavailable
