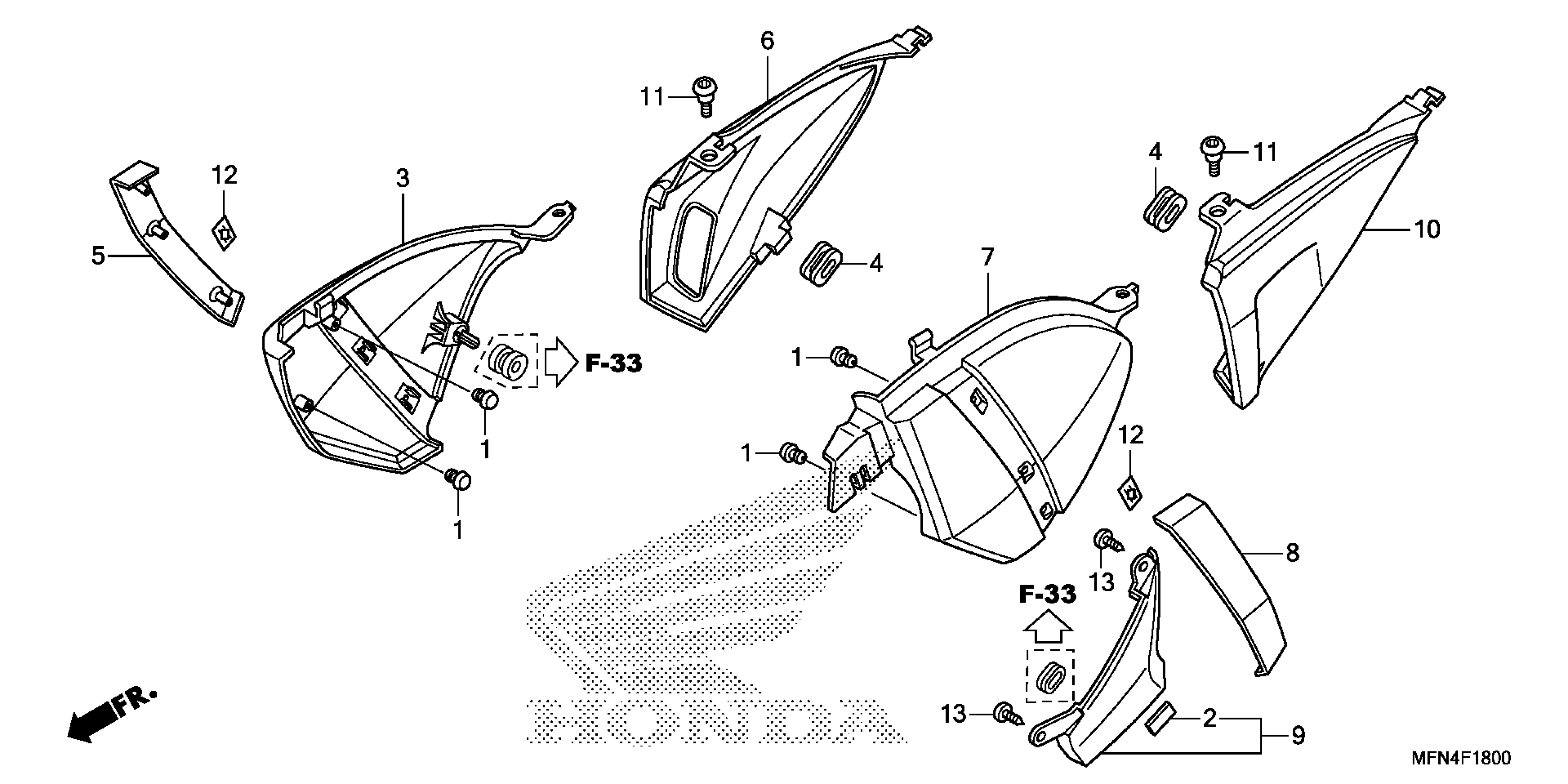

Honda CB1000RAC (14) MOTORCYCLE, ITA, VIN# ZDCSC601-EF215001 SIDE COVER Diagram

RUBBER, TENSIONER ARM

61112-727-000

$2.94

RUBBER, PROTECTOR

64121-MBG-000

$1.88

COVER, R. SIDE

83600-MFN-D00

$13.16

GROMMET A, SIDE COVER

83601-MB0-000

$4.31

PLATE, R. SIDE COVER

83601-MFN-D00

$18.66

COVER, R. SEAT RAIL

83650-MFN-D00

$5.79

COVER, L. SIDE

83700-MFN-D00

$12.84

PLATE, L. SIDE COVER

83701-MFN-D00

$32.68

SUB-COVER, L. SIDE *NH109MS* (SHOT SILVER METALLIC SPECIAL) | Cynos gray metallic NH312M; Pearl cool white NHA16P;

83702-MFN-D00ZD

$30.84

COVER, L. SEAT RAIL

83750-MFN-D00

$5.79

SCREW, SPECIAL (6X14)

90114-MCJ-000

$2.32

NUT, SPEED (5MM)

90310-MY9-000

$1.93

SCREW, TAPPING (4X12)

93903-24320

$0.90
