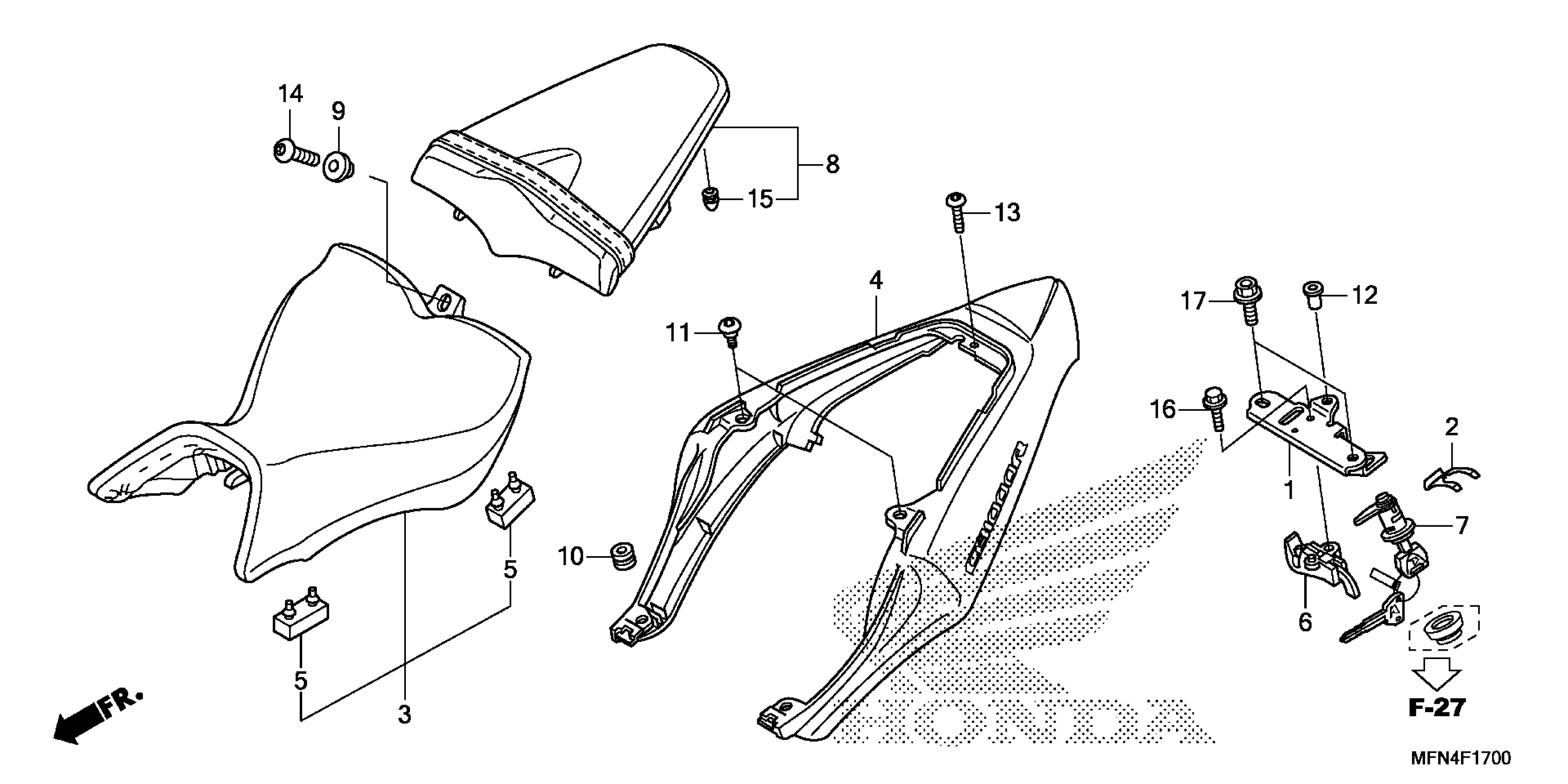

Honda CB1000RAC (14) MOTORCYCLE, ITA, VIN# ZDCSC601-EF215001 SEAT + SEAT COWL Diagram

PLATE, PILLION SEAT CATCH

50206-MFN-D00

$24.83

SPRING, LOCK KEY SETTING

75581-KY4-900

$61.83

SEAT ASSY., SINGLE

77100-MFN-D01

Unavailable

COWL SET, RR. (TYPE1) (WL) | Cynos gray metallic NH312M;

77200-MFN-K00ZB

$375.13

RUBBER B, SEAT SETTING

77208-MBZ-K00

Unavailable

HOOK, SEAT CATCH

77220-MFN-D00

$24.01

LOCK ASSY., SEAT

77225-MFN-D01

$41.43

SEAT ASSY., PILLION

77300-MFN-D01

$190.49

COLLAR, RR. GARNISH

80151-KGB-610

$6.14

GROMMET, SIDE COVER

83501-MG7-000

$2.38

SCREW, PAN (6X11)

90106-KY2-701

$3.95

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.20

SCREW, PAN (5X15)

90113-MCJ-000

$2.03

BOLT, SOCKET (8X16)

90128-KBH-000

$3.32

PLUG, CONE TYPE

90899-422-610

$1.81

BOLT, FLANGE (6X14)

96001-06014-00

$1.64

BOLT, FLANGE (8X16)

96300-08016-00

$1.28
