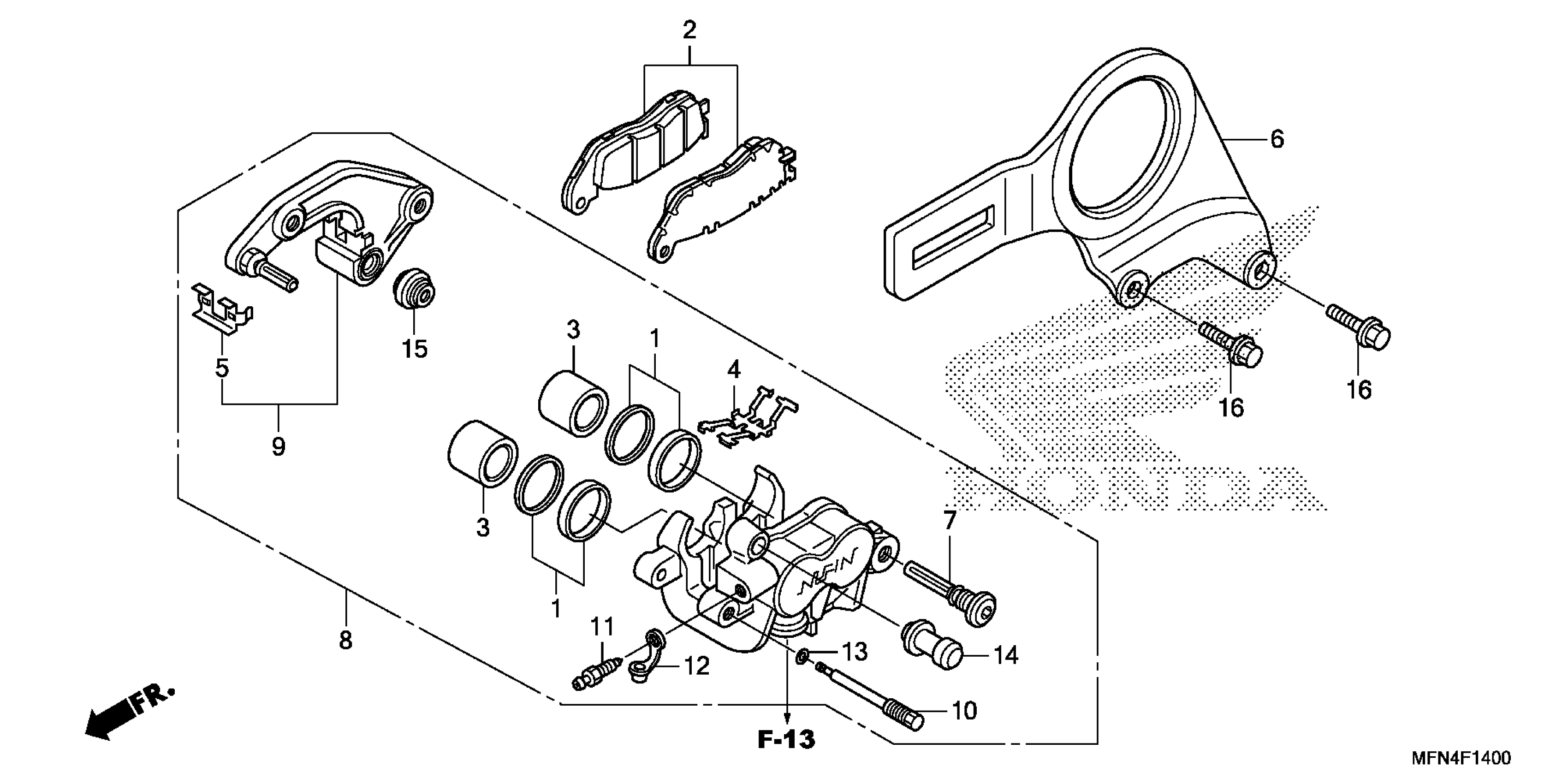

Honda CB1000RAC (14) MOTORCYCLE, ITA, VIN# ZDCSC601-EF215001 REAR BRAKE CALIPER (1) Diagram

Description

Price

SEAL SET, PISTON

06431-MA3-405

$7.33

PAD SET, RR. This part replaces 06435-MFN-D01.

06435-MFN-D02

$56.97

PAD SET, RR.

06435-MFN-D02

$56.97

PISTON (27X31)

43107-MAJ-G41

$39.18

SPRING, PAD

43108-MFN-D02

$4.16

RETAINER

43112-MEL-D21

$5.44

BRACKET, RR. BRAKE

43120-MFN-D00

$97.30

BOLT, PIN

43131-KW3-006

$10.29

CALIPER SUB-ASSY., RR. BRAKE (NISSIN)

43150-MFN-D01

$354.03

BRACKET SUB-ASSY., RR.

43190-MFN-D01

$114.51

PIN, HANGER

43215-KZ4-J41

$5.25

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

RING, STOPPER

45111-MAJ-G41

$3.80

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

BOLT, FLANGE (8X25)

90131-MCJ-000

$2.51
