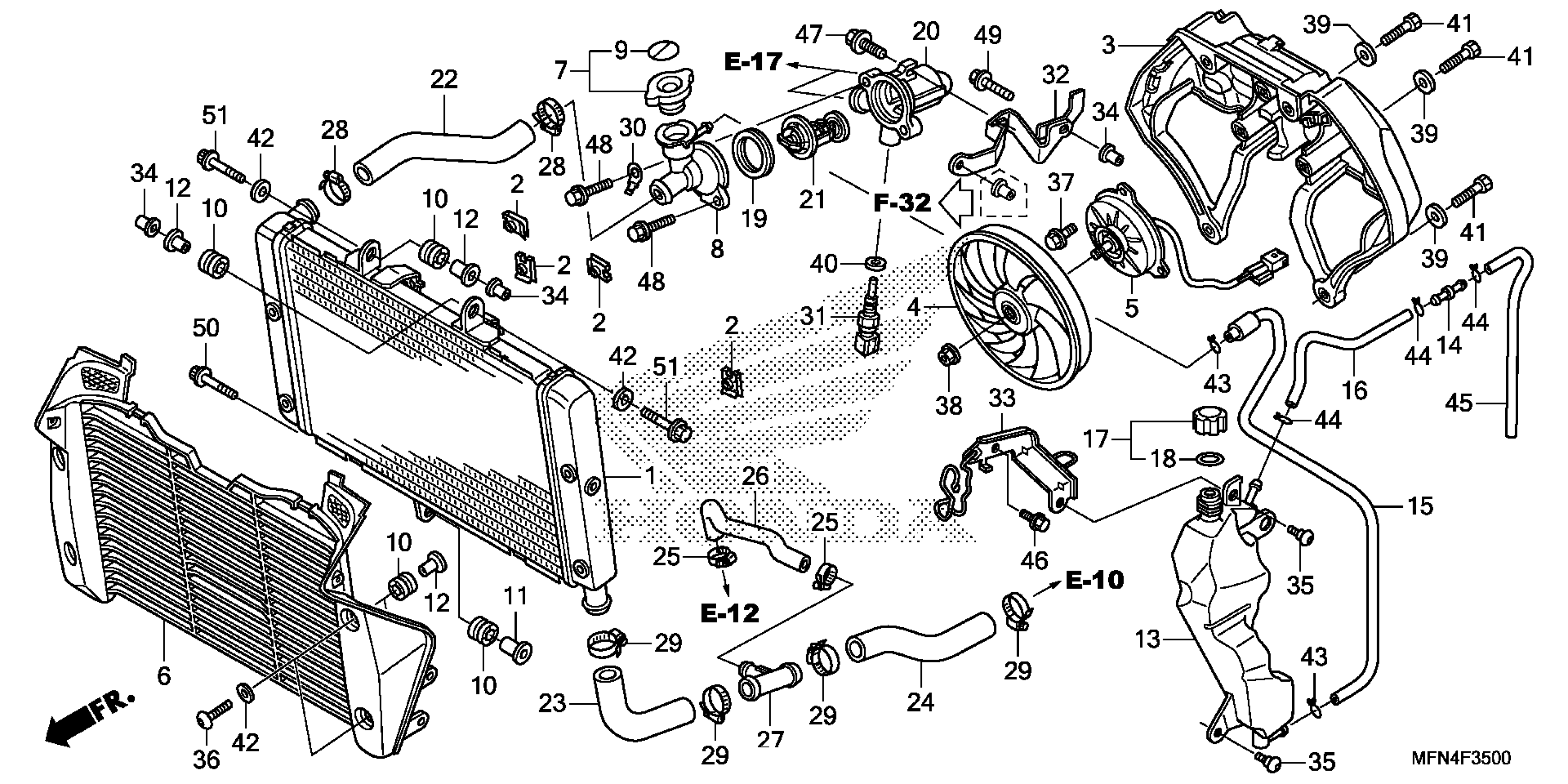

Honda CB1000RAC (14) MOTORCYCLE, ITA, VIN# ZDCSC601-EF215001 RADIATOR Diagram

#

Description
Price

1

RADIATOR (COO)

19010-MFN-305

$215.45

2

NUT, SETTING (6MM)

19014-KEA-003

$2.88

3

SHROUD

19015-MFN-D00

$20.58

4

FAN, COOLING

19020-MFG-D01

$37.39

5

MOTOR ASSY., FAN

19030-MFN-D01

$221.65

6

GRILLE, RADIATOR

19032-MFN-D00

$21.96

7

CAP, RADIATOR

19037-GEE-710

$27.19

8

NECK, FILLER

19038-MEJ-000

$72.46

9

LABEL, RADIATOR CAP

19046-PAA-A00

$2.80

10

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.08

11

COLLAR, RADIATOR MOUNTING

19052-MFG-D00

$2.93

12

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.26

13

TANK, RADIATOR RESERVE

19101-MFN-D00

$25.87

14

JOINT, TUBE

19102-KT8-000

$6.16

15

TUBE, FILLER-RESERVE TANK

19103-MFN-D00

$8.07

16

TUBE, RESERVE TANK DRAIN

19104-MFN-D00

$5.06

17

CAP ASSY., RESERVE TANK

19105-MG8-000

$11.30

18

GASKET, RESERVE TANK

19107-MG8-000

$4.56

19

RUBBER, THERMOSTAT

19305-KV3-010

$5.64

20

CASE, THERMOSTAT

19310-MFA-D00

$42.70

21

THERMOSTAT

19320-MFJ-D01

$30.94

22

HOSE B, RADIATOR (UPPER)

19502-MFN-D00

$11.48

23

HOSE A, RADIATOR (LOWER)

19503-MFN-D00

$8.78

24

HOSE B, RADIATOR (LOWER)

19504-MFN-D00

$11.51

25

CLAMP A, WATER HOSE

19505-KS6-700

$10.57

26

HOSE, OIL COOLER

19505-MFN-D60

$28.32

27

JOINT, HOSE (THREE-WAY)

19511-MFN-D00

$17.26

28

CLAMP, HOSE (30-37MM)

19516-GAG-003

$12.40

29

CLAMP, HOSE

19516-MER-D10

$6.97

30

CONNECTOR, GROUND

32152-MB3-000

$1.77

31

SENSOR ASSY., WATER TEMPERATURE

37870-KRJ-901

$27.61

32

STAY, FILLER NECK

50140-MFN-D00

$3.01

33

STAY, CLUTCH CABLE

50224-MFN-D00

$11.53

34

NUT, SPECIAL (6X1.0)

90111-KFB-000

$2.84

35

BOLT, SPECIAL HEX. (6X14)

90113-KTP-900

$2.72

36

BOLT, SPECIAL (6X25)

90114-KSV-J10

$1.80

37

BOLT, FLANGE (5X10)

90196-MBB-003

$2.42

38

NUT, SERRATE (5MM)

90315-MK3-003

$2.12

39

WASHER, PLAIN (6MM)

90417-KB5-930

$9.16

40

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.38

41

BOLT, HEX. (6X16)

92101-06016-0G

$1.25

41

BOLT, HEX. (6X16) This part replaces 92201-06016-0G.

92101-06016-0G

$1.25

42

WASHER, PLAIN (6MM)

94103-06700

$0.65

43

CLIP, TUBE (B12)

95002-02120

Unavailable

44

CLIP, TUBE (C11)

95002-70000

$1.49

45

BULK HOSE, VACUUM (7X3000) (7X900)

95005-70003-30M

Unavailable

46

BOLT, FLANGE (6X16)

95701-06016-00

$1.48

47

BOLT, FLANGE (6X20)

95701-06020-00

$1.61

48

BOLT, FLANGE (6X18)

96001-06018-00

$1.64

49

BOLT, FLANGE (6X25)

96001-06025-00

$1.91

50

BOLT, FLANGE (6X30)

96001-06030-07

$1.64

51

BOLT, FLANGE (6X35)

96001-06035-07

$1.97
