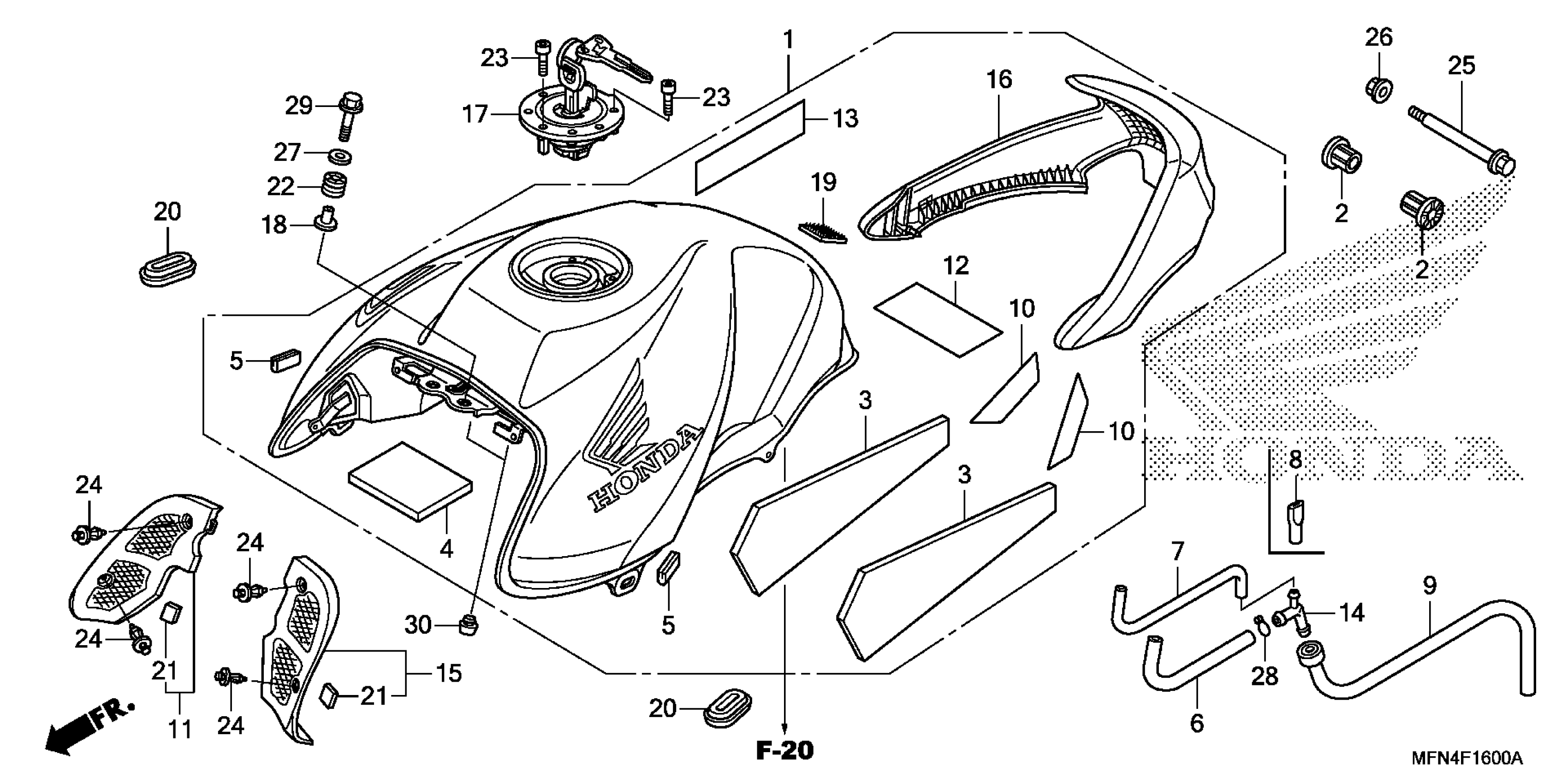

Honda CB1000RAC (14) MOTORCYCLE, ITA, VIN# ZDCSC601-EF215001 FUEL TANK Diagram

TANK SET, FUEL (TYPE1) (WL) | Cynos gray metallic NH312M;

17500-MFN-K00ZB

$2,534.00

CUSHION, RR. FUEL TANK PIVOT

17506-MBZ-K00

$1.49

MAT, FUEL TANK SIDE

17515-MFN-D00

$8.13

TRIM, FUEL TANK

17518-MFN-D00

$2.80

TUBE, DRAIN

17542-MFN-D00

$6.30

CAP, JOINT (THREE-WAY)

17544-MGJ-H00

$11.44

TUBE, THREE WAY JOINT

17545-MFN-D00

$8.07

FILM, TANK PROTECTOR

17551-MFN-D00

$14.46

COVER, R. TANK (INNER)

17555-MFN-D00

$6.07

FILM A, PROTECTOR

17556-MEL-300

$16.49

FILM B, PROTECTOR

17557-MEE-300

$5.95

JOINT, THREE WAY

17559-MEL-D20

$4.56

COVER, L. TANK (INNER)

17565-MFN-D00

$6.07

PAD, FUEL TANK

17580-MFN-D00

$192.02

CAP, FUEL FILLER This part replaces 17620-MAS-E03.

17620-MAS-E04

$202.36

COLLAR, SETTING

61104-422-000

$6.91

FASTENER A, DUAL LOCK (30X30)

64215-MER-R60

$1.49

GROMMET, SIDE COVER

83551-ME9-000

$3.24

RUBBER, TANK COVER (INNER)

83606-MFN-D00

$1.49

RUBBER, TAILLIGHT MOUNTING

84703-425-000

$4.72

BOLT, SOCKET (4X21)

90074-MT4-000

$3.04

RIVET, PUSH

90116-MCS-G00

$1.49

BOLT, TANK HINGE

90135-MS2-000

$6.22

NUT, U (6MM) (FUSE RASHI)

90301-473-003

$4.07

WASHER, PLAIN (6MM)

90525-428-900

$1.92

CLIP, TUBE (B12)

95002-02120

$2.00

BOLT, FLANGE (6X28)

96001-06028-07

$1.51

RUBBER B, STOPPER

50354-428-000

$2.75
