Description

Price

1

FORK ASSY., R. FR. (COO)

51400-MFN-305

$1,254.29

2

SPRING, FR. FORK

51401-MFN-D01

$65.97

3

COLLAR, SPRING

51403-MFG-D01

$9.62

4

STOPPER, SPRING SEAT

51406-MW4-003

$7.36

5

TUBE (OUTER) (COO)

51410-MFN-305

$415.09

6

RING, BACK-UP

51412-MEL-003

$5.21

7

BUSH, GUIDE

51414-MFN-D01

$6.58

8

BUSH, SLIDER

51415-MFN-D01

$27.47

9

PIPE, R. SLIDE

51425-MFN-D01

$359.14

10

DAMPER, FR.

51430-MFN-D01

$509.10

11

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.20

11

RING, OIL SEAL STOPPER (SHOWA) This part replaces 51447-MBL-611.

51447-KA4-711

$4.20

12

BOLT, FR. FORK

51454-MFN-D61

$95.23

13

SEAL SET, FR. FORK

51490-MFL-003

$17.82

14

FORK ASSY,L FRONT This part replaces 51500-MFN-305.

51500-MFN-D62

$1,200.16

15

PIPE, L. SLIDE

51525-MFN-D01

$359.14

16

WASHER, SPECIAL (10MM)

52442-KA3-711

$2.19

17

BOLT, FLANGE (8X45)

90109-MR7-000

$4.60

18

BOLT, SOCKET (10X35)

90126-MR7-003

$14.71

19

DUST SEAL This part replaces 91254-MEJ-003.

91254-MEJ-013

$11.51

20

O-RING (42.2X2.4)

91258-GF4-003

$5.50

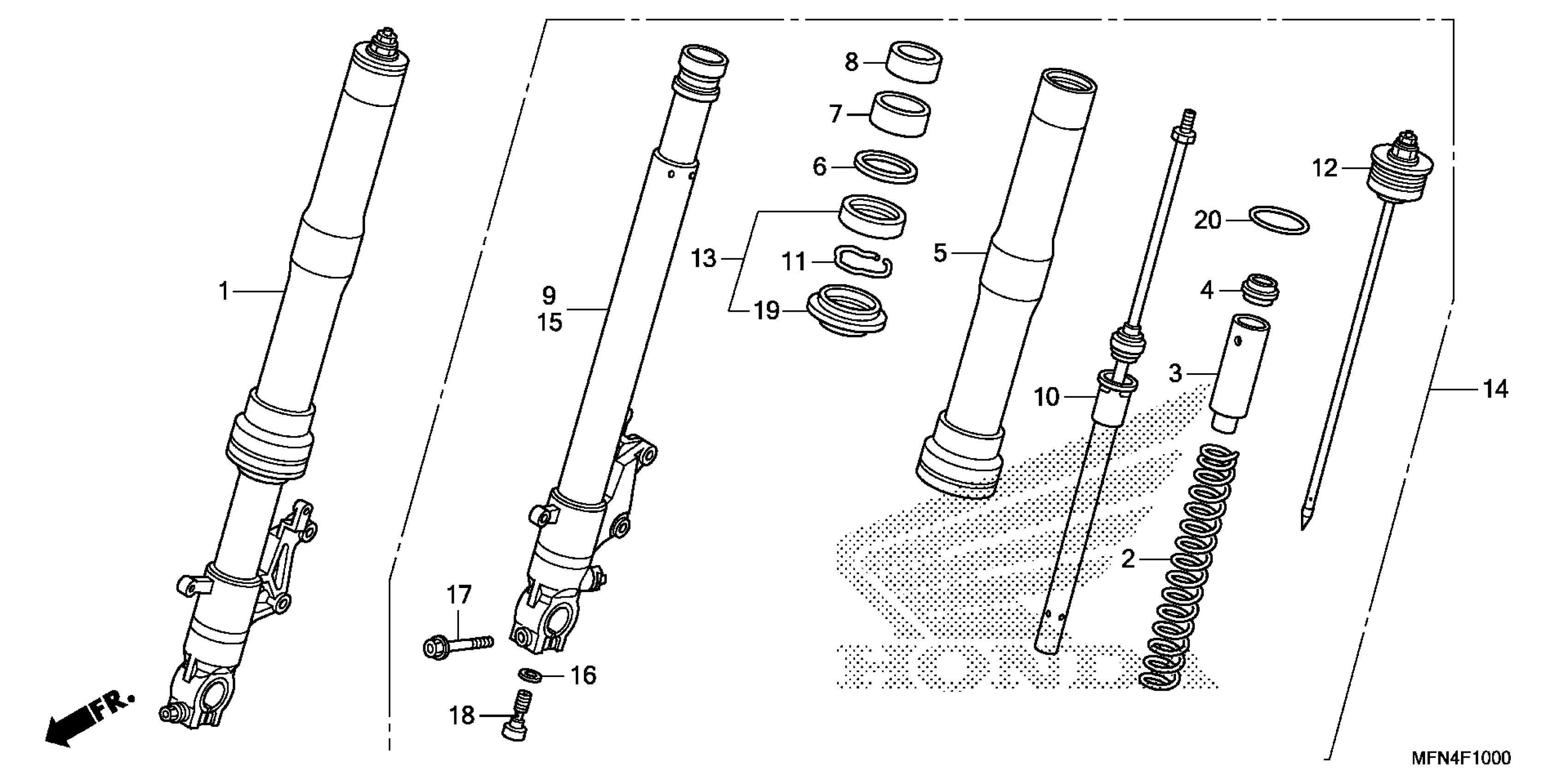

Honda CB1000RAC (14) MOTORCYCLE, ITA, VIN# ZDCSC601-EF215001 FRONT FORK Diagram
