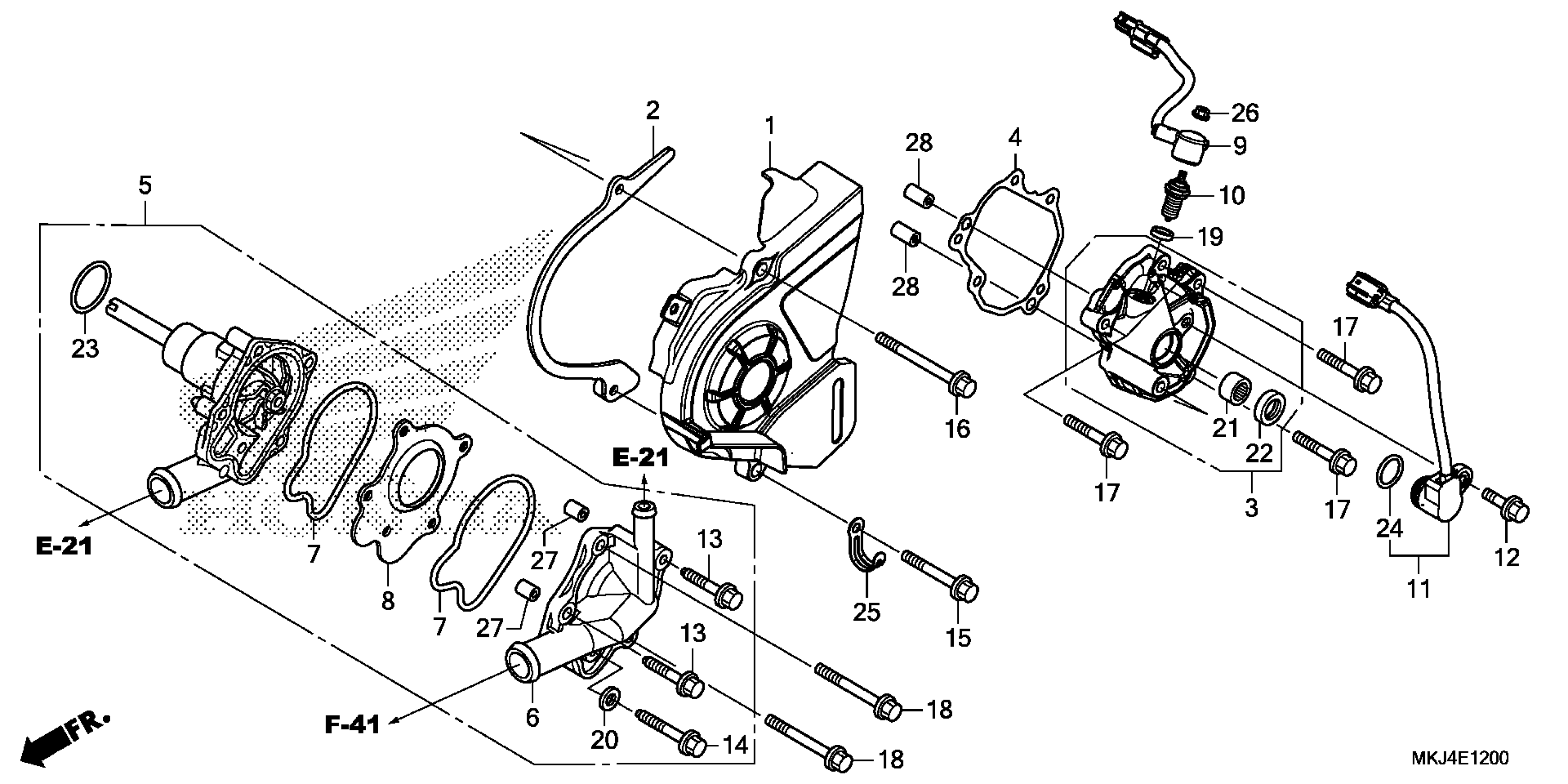

Honda CB1000RAAC (19) MOTORCYCLE, JPN, VIN# JH2SC801-KK100001 TO JH2SC801-KK199999 WATER PUMP Diagram

#

Description
Price

1

COVER, L. RR.

11350-MKJ-D00

$45.46

2

PLATE, DRIVE CHAIN GUIDE

11355-MKJ-D40

$17.85

3

COVER, CHANGE

11370-MKJ-D00

$57.81

4

GASKET, CHANGE COVER This part replaces 11372-MGJ-D00.

11372-MKJ-E50

$6.35

5

WATER PUMP

19200-MKJ-305

$238.04

6

COVER, WATER PUMP

19221-MEL-D20

$86.34

7

GASKET, WATER PUMP

19226-MEL-300

$6.12

8

PLATE, WATER PUMP

19231-MEL-300

$7.08

9

SUB-HARNESS, SPINDLE

32106-MKJ-D00

$6.99

10

SWITCH ASSY., NEUTRAL

35600-MKF-D41

$19.99

11

SENSOR ASSY., ANGLE

38800-MKJ-D01

$186.06

12

BOLT, KNOCK (6MM)

90011-MKJ-D00

$3.91

13

BOLT, FLANGE (6X25) (CT200)

90016-MKJ-D00

$4.41

14

BOLT, FLANGE (6X32) (CT200)

90017-MKJ-D00

$4.25

15

BOLT, FLANGE (6X40)

90022-GHB-740

$2.69

16

BOLT, FLANGE (6X75)

90022-GHB-810

$3.19

17

BOLT, FLANGE (6X28)

90027-GHB-690

$2.15

18

BOLT, FLANGE (6X45)

90027-GHB-750

$2.62

19

WASHER, NEUTRAL

90443-MJ6-000

$1.78

20

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

21

BEARING, NEEDLE (14MM) (TOYO)

91101-121-691

$24.95

22

OIL SEAL (14X22X5)

91203-KK3-830

$3.65

23

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

Unavailable

24

O-RING (16.5X2.5)

91310-MGE-D01

$4.44

25

CLIP, HARNESS (4X50)

91410-MGY-640

$2.04

26

NUT, FLANGE (4MM)

94050-04000

$1.13

27

PIN A, DOWEL (8X10)

94301-08100

$2.62

28

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.62
