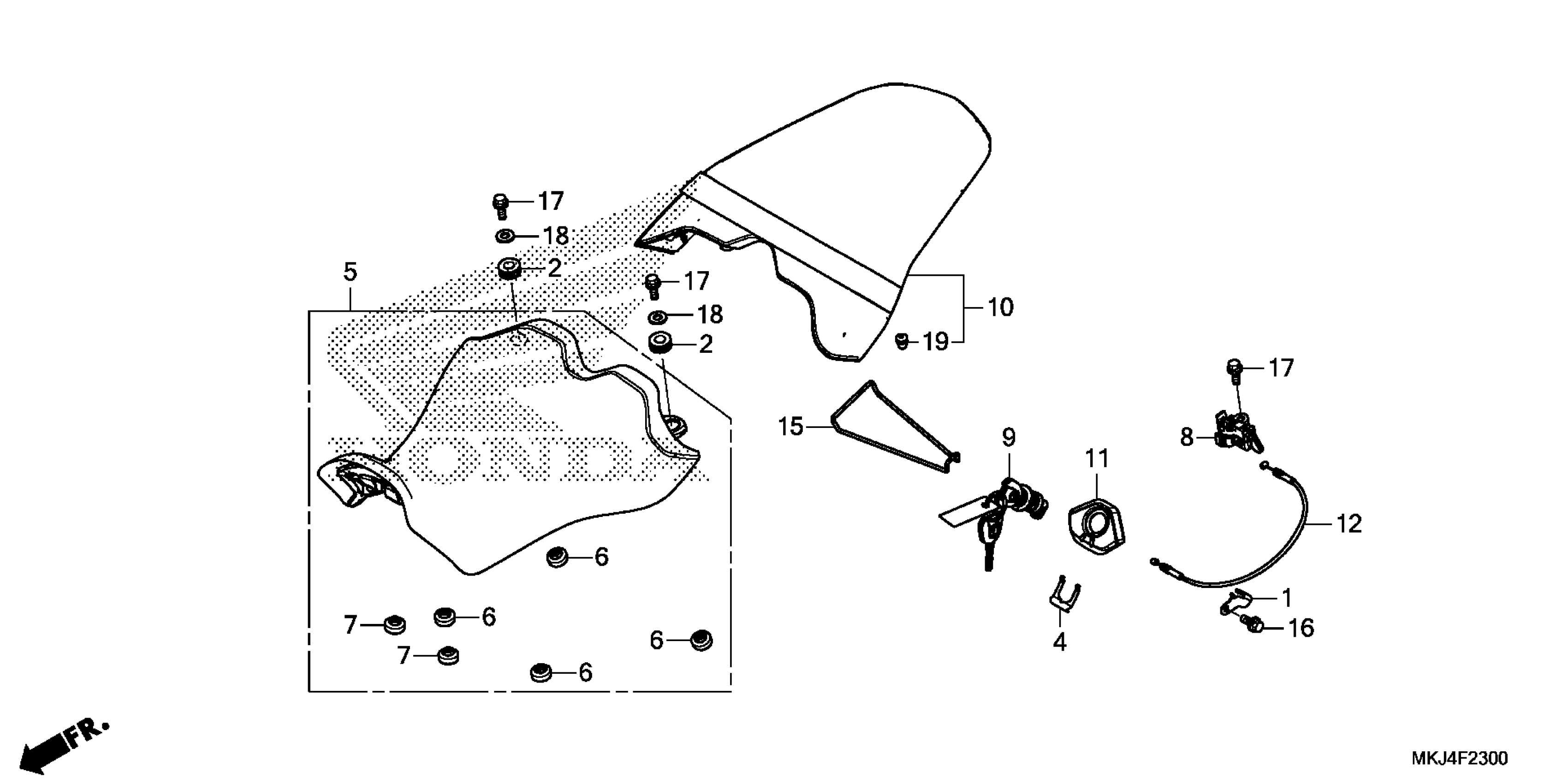

Honda CB1000RAAC (19) MOTORCYCLE, JPN, VIN# JH2SC801-KK100001 TO JH2SC801-KK199999 SEAT Diagram

PLATE, KEY SETTING

50215-MKJ-D00

$3.91

RUBBER, BATTERY BOX MOUNTING

50329-HA7-670

$2.80

PLATE, LOCK KEY SETTING

75581-MGP-D60

$3.75

SEAT ASSY., MAIN

77100-MKJ-D01

$172.51

RUBBER, SEAT CUSHION

77207-MEL-000

$3.16

RUBBER C, SEAT SETTING

77215-KW7-900

$5.04

HOOK, SEAT CATCH

77220-MJF-A01

$35.14

KEY, SEAT LOCK This part replaces 77239-MJE-D03.

77239-MJE-D04

$132.35

SEAT ASSY., PILLION

77300-MKJ-D01

$214.16

COVER, RR. SEAT

77305-MKJ-D00

$3.57

CABLE, SEAT LOCK

77306-MKJ-D01

$14.31

BAND, TOOL

80123-GN5-900

$2.47

BOLT, FLANGE (6X10)

90013-GHB-600

$4.13

BOLT, FLANGE (6X16)

90031-GHB-640

$2.09

WASHER, PLAIN (6MM)

90525-428-900

$1.87

PLUG, CONE TYPE

90899-422-610

$1.84
