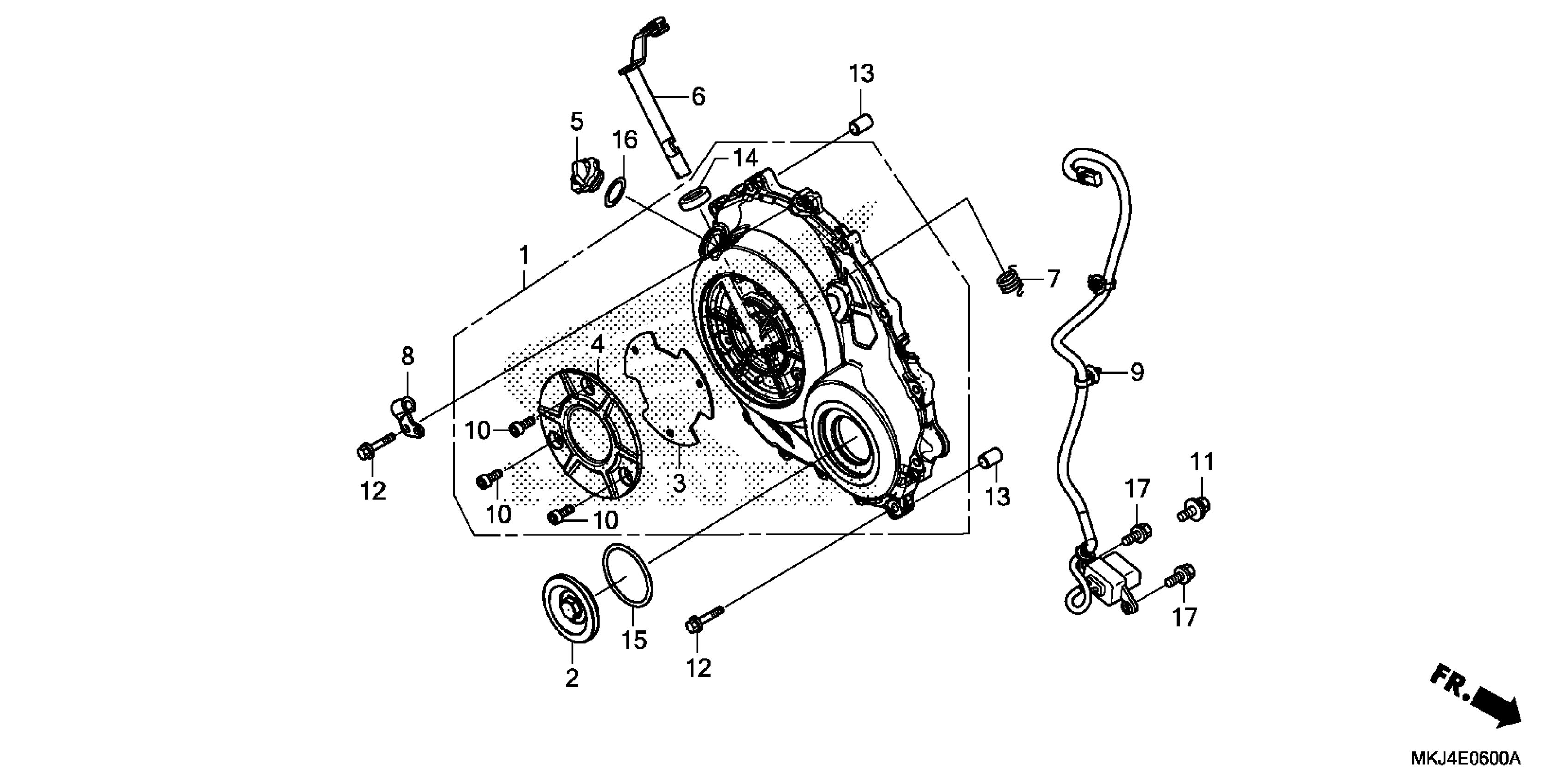

Honda CB1000RAAC (19) MOTORCYCLE, JPN, VIN# JH2SC801-KK100001 TO JH2SC801-KK199999 RIGHT CRANKCASE COVER Diagram

COVER, R.

11330-MKJ-D00

$322.92

CAP (45MM)

11332-MKJ-D00

$16.52

RUBBER, R. COVER

11334-MKJ-D00

$12.20

COVER, CLUTCH

11335-MKJ-D00

$78.16

CAP, OIL FILLER

15611-MKJ-D00

$9.70

LEVER, CLUTCH

22810-MKJ-D00

$58.66

SPRING, CLUTCH LEVER

22815-MFL-000

$2.92

RECEIVER, CLUTCH CABLE

22821-MKJ-D00

$5.36

GENERATOR ASSY., PULSE

30300-MKJ-D01

$68.87

BOLT, FLANGE SOCKET (6X16)

90001-MKJ-D00

$2.70

BOLT-WASHER (6X12) (Honda Code 2551760)

90021-MM5-000

$5.12

BOLT, FLANGE (6X28)

90027-GHB-690

$2.33

PIN, DOWEL (10X16) (Honda Code 3906971)

90701-MV9-670

$4.30

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.92

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55
