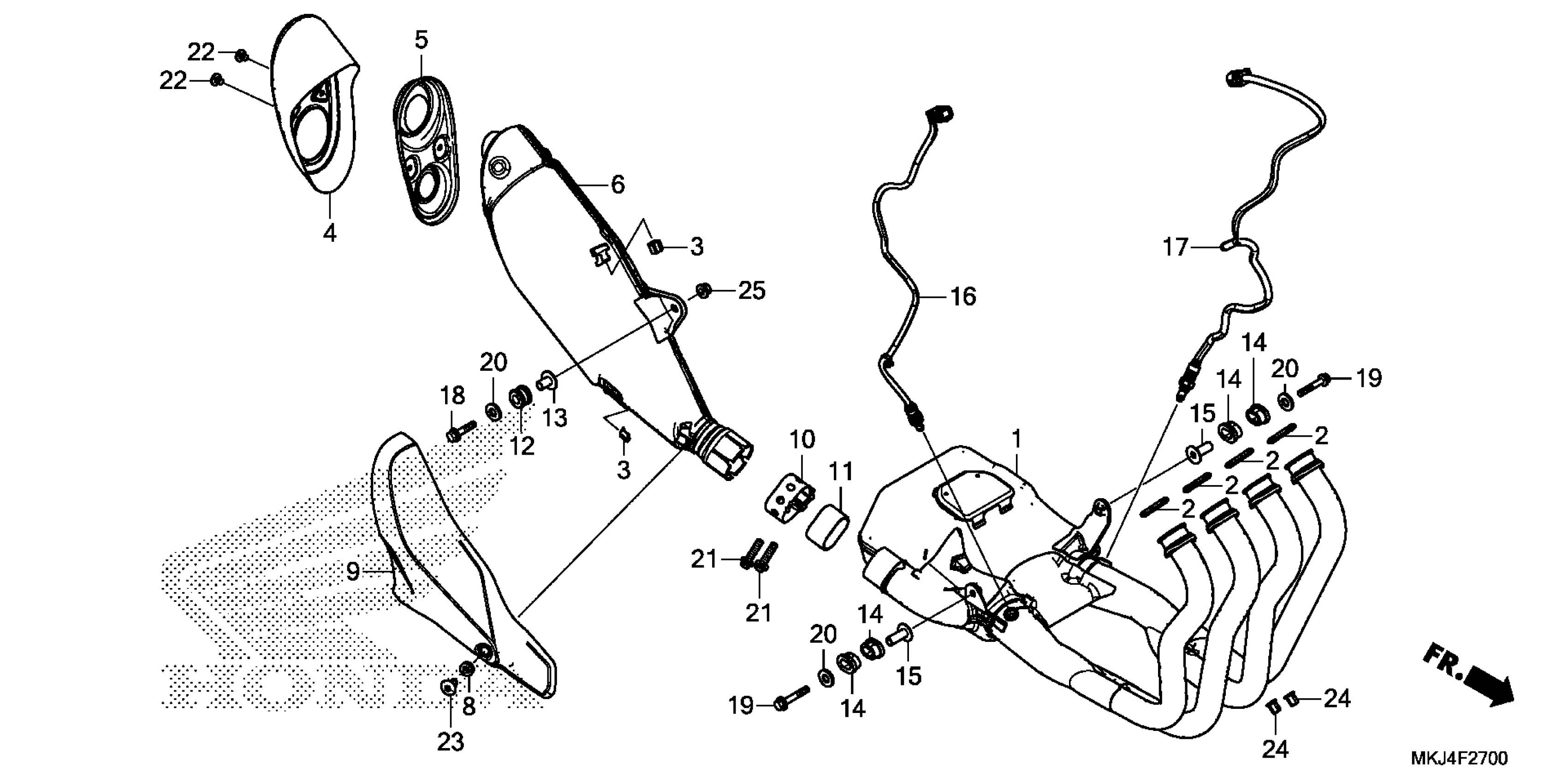

Honda CB1000RAAC (19) MOTORCYCLE, JPN, VIN# JH2SC801-KK100001 TO JH2SC801-KK199999 MUFFLER Diagram

PIPE, EX.

18150-MKJ-D01

$2,532.52

GASKET, EX. PIPE

18291-MN4-920

$5.31

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$2.05

CAP, TAIL

18306-MKJ-D01

$77.43

CAP, TAIL (INNER)

18307-MKJ-D01

$49.13

MUFFLER

18310-MKJ-A01

$1,207.31

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.18

COVER, MUFFLER

18350-MKJ-D01

$206.26

BAND, L. MUFFLER

18372-MM5-640

$33.43

GASKET, MUFFLER

18391-ML0-003

$29.28

RUBBER, MUFFLER MOUNTING

18421-MGC-JB0

$4.93

COLLAR, MUFFLER MOUNTING

18422-MGC-JB0

$5.71

RUBBER, EX. PIPE MOUNTING

18422-MGZ-J00

$9.09

COLLAR, EX. PIPE MOUNTING

18423-MGZ-J00

$5.10

SENSOR, R. OXYGEN

36531-MKJ-D01

$237.48

SENSOR, L. OXYGEN

36532-MKJ-D01

$237.48

BOLT, FLANGE (8X35)

90037-GHB-720

$2.48

BOLT, FLANGE (8X45)

90037-GHB-750

$2.93

WASHER, PLAIN (8MM) (Honda Code 2920007)

90101-ML0-720

$3.78

BOLT, FLANGE (8X35)

90103-KCM-620

$1.57

BOLT, SPECIAL (6X8)

90106-MKJ-D00

$2.92

SCREW, PAN (6X12)

90113-GFP-B00

$3.58

NUT, FLANGE (7MM)

90304-MM5-000

$4.94

NUT, FLANGE (8MM)

94050-08040

$1.49
