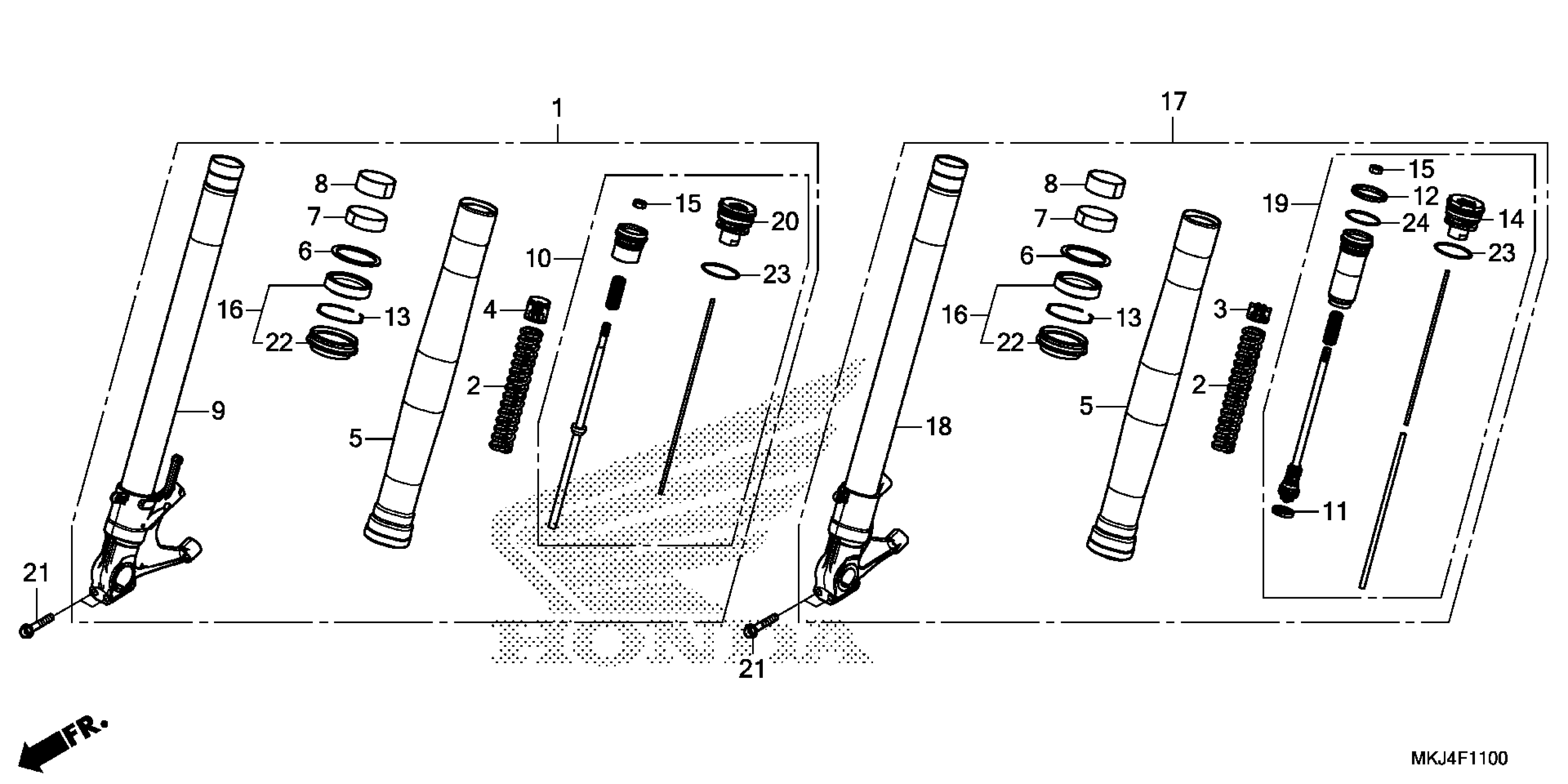

Honda CB1000RAAC (19) MOTORCYCLE, JPN, VIN# JH2SC801-KK100001 TO JH2SC801-KK199999 FRONT FORK Diagram

Description

Price

FORK ASSY., R. FR. (SHOWA)

51400-MKJ-D01

$984.60

SPRING, FR. FORK

51401-MKJ-D01

$71.35

COLLAR B, SPRING

51404-MGP-D01

$8.49

COLLAR, SPRING

51404-MKJ-D01

$17.21

TUBE (OUTER)

51410-MKJ-D01

$451.75

RING, BACK-UP

51412-MEL-003

$5.34

BUSH, GUIDE

51414-MFN-D01

$6.75

BUSH, SLIDER

51415-MGP-D01

$13.62

PIPE, R. SLIDE

51425-MKJ-D01

$349.43

ROD, JOINT

51430-MKJ-D01

$241.90

RING, PISTON

51437-MGP-D01

$7.12

RING B, PISTON

51438-MGP-D01

$5.83

CIRCLIP (INNER)

51447-MB4-003

$4.45

BOLT, FR. FORK

51450-MGP-D61

$91.22

NUT, HEX.

51451-MGP-D01

$1.76

SEAL SET, FR. FORK

51490-MFL-003

$18.22

FORK ASSY., L. FR. (SHOWA)

51500-MKJ-D01

$1,109.31

PIPE, L. SLIDE

51525-MKJ-D01

$334.32

ROD, PISTON

51530-MKJ-D01

$566.01

BOLT, FR. FORK

51550-MKJ-D01

$85.75

BOLT (8X45)

90134-MEL-000

$2.80

DUST SEAL

91254-MEJ-013

$11.51

O-RING (42.2X2.4)

91258-GF4-003

$5.64

O-RING (39.5X1.8)

91258-MGP-D01

$3.83
