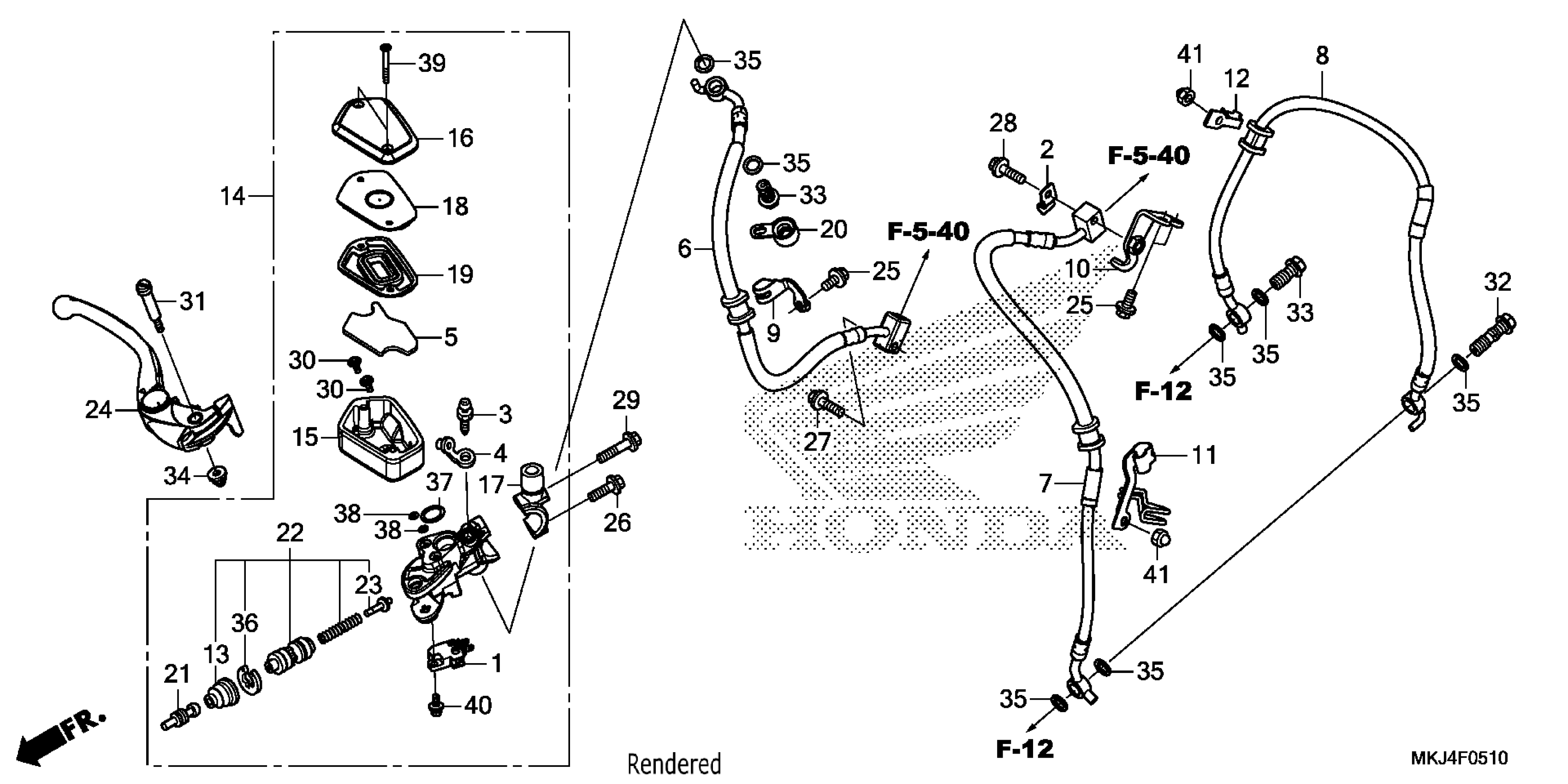

Honda CB1000RAAC (19) MOTORCYCLE, JPN, VIN# JH2SC801-KK100001 TO JH2SC801-KK199999 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.99

2

CLAMP B, SENSOR WIRE

38514-MEJ-J00

$2.09

3

SCREW, BLEEDER (NISSIN)

43352-568-003

$9.83

4

CAP, BLEEDER

43353-461-771

$4.83

5

FLOAT

43523-MKJ-D01

$3.10

6

HOSE A, FR. BRAKE

45125-MKJ-D01

$52.69

7

HOSE D, FR. BRAKE

45128-MKJ-D01

$52.66

8

HOSE E, FR. BRAKE

45129-MKJ-D01

$42.00

9

CLAMP A, FR. BRAKE HOSE

45155-MKJ-D00

$5.37

10

STAY B, FR. BRAKE HOSE

45156-MKJ-D00

$8.69

11

CLAMP, L. FR. BRAKE HOSE

45157-MKJ-D00

$7.54

12

CLAMP A, FR. BRAKE HOSE

45158-MFL-D00

$3.37

13

BOOT

45504-MCF-006

$10.97

14

MASTER CYLINDER SUB-ASSY., FR.

45510-MKJ-D01

$290.99

15

TANK, OIL

45511-MKJ-D01

$17.25

16

CAP

45513-MKJ-D01

$30.19

17

HOLDER, MASTER CYLINDER

45518-MFN-D01

$11.39

18

PLATE, DIAPHRAGM

45518-MGE-006

$7.44

19

DIAPHRAGM

45520-MGE-006

$14.00

20

BOOT, MASTER CYLINDER

45522-MFN-D00

$4.25

21

ROD, PUSH

45525-MEL-016

$13.09

22

MASTER CYLINDER SET

45530-MFN-D01

$48.25

23

GUIDE, SPRING

46140-MEL-006

$4.10

24

LEVER ASSY., R. HANDLE

53170-MFL-006

$49.54

25

BOLT, FLANGE (6X12)

90021-GHB-620

$2.06

26

BOLT, FLANGE (6X22)

90021-GHB-670

$2.01

27

BOLT, FLANGE (6X25)

90021-GHB-680

$2.09

28

BOLT, FLANGE (6X28)

90021-GHB-690

$2.06

29

BOLT, FLANGE (6X32)

90021-GHB-710

$2.29

30

SCREW, TRIPLE (4X11)

90101-MR7-006

$2.87

31

BOLT, HANDLE LEVER

90114-MCF-006

$5.56

32

BOLT, OIL (10X34)

90145-MR8-014

$6.72

33

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

34

NUT, CAP (6MM)

90202-ZV0-000

$2.69

35

WASHER, OIL BOLT

90545-300-000

$6.56

36

CIRCLIP

90651-MCF-006

$2.09

37

O-RING (14.8X2.4)

91212-422-006

$2.37

38

O-RING (5.8X1.9) (NISSIN)

91355-MG9-006

$3.00

39

SCREW, FLAT (4X35)

93600-04035-1G

$0.44

40

SCREW-WASHER (4X12)

93893-04012-07

$1.24

40

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.24

41

NUT, CAP (6MM)

94021-06070-0S

$1.50
