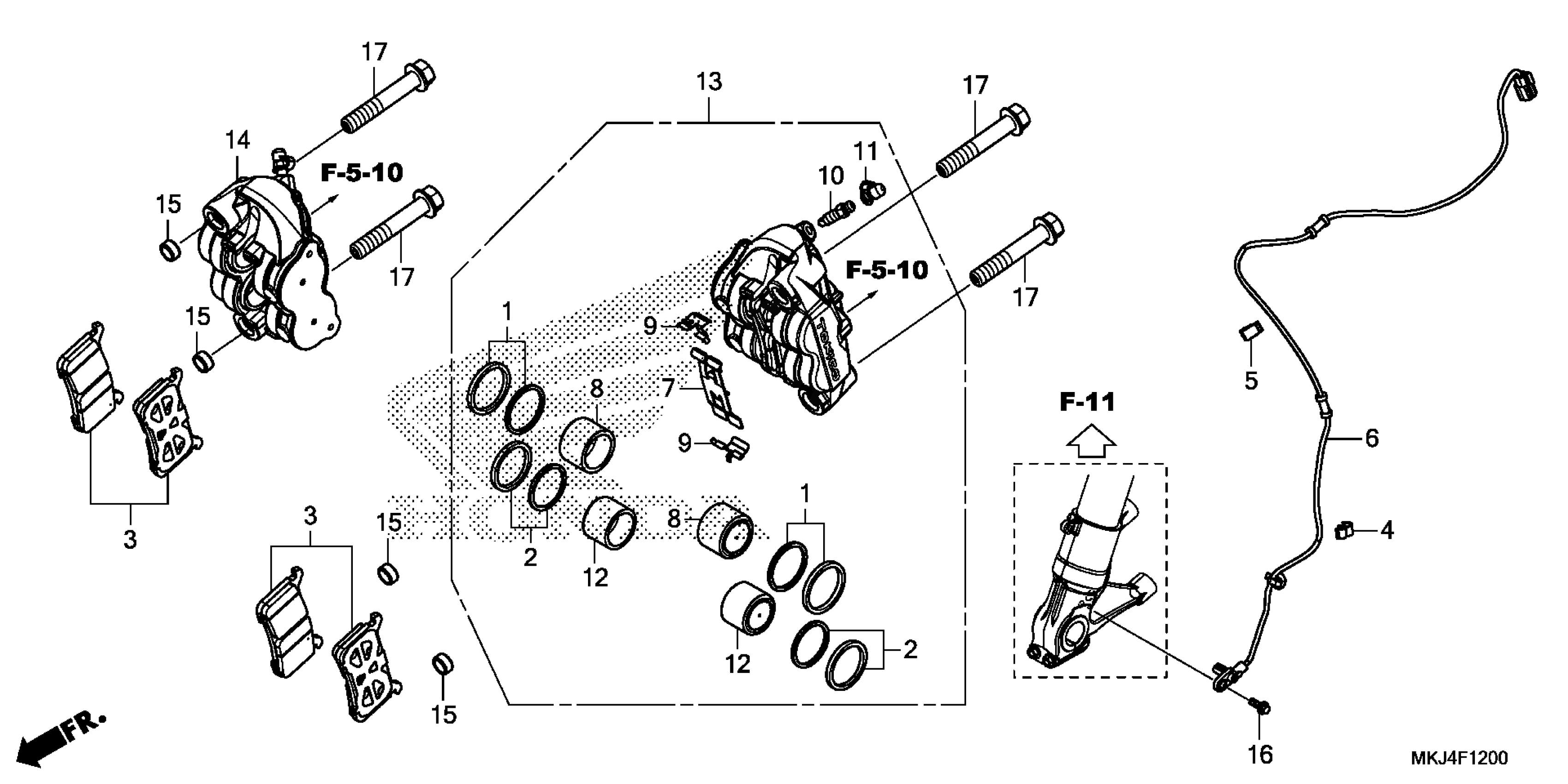

Honda CB1000RAAC (19) MOTORCYCLE, JPN, VIN# JH2SC801-KK100001 TO JH2SC801-KK199999 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON (32)

06451-MEL-003

$4.80

SEAL SET, PISTON (30)

06452-MEL-003

$4.80

PAD SET, FR.

06455-MJM-D41

$56.32

CLAMP, ABS WIRE (D8.5)

38516-MGE-003

$3.10

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.72

SENSOR, FR. WHEEL SPEED

38520-MKJ-D01

$192.08

SPRING, PAD

45106-MJM-D31

$9.51

PISTON (32)

45107-MFL-013

$40.91

RETAINER, PAD

45108-MJM-D31

$5.56

SCREW, BLEEDER

45111-MEL-013

$2.11

CAP, BLEEDER

45112-MEL-003

$1.49

PISTON (30)

45117-MFL-013

$39.45

CALIPER SUB-ASSY., L. FR. (TOKIKO)

45150-MJM-D31

$390.11

CALIPER SUB-ASSY., R. FR. (TOKIKO)

45250-MJM-D31

$407.64

SPACER, FR. FORK

51497-MEL-000

$5.12

BOLT, FLANGE (6X14)

90117-MJP-G60

$2.21

BOLT, FLANGE (10X57)

90131-MEL-000

$17.49
