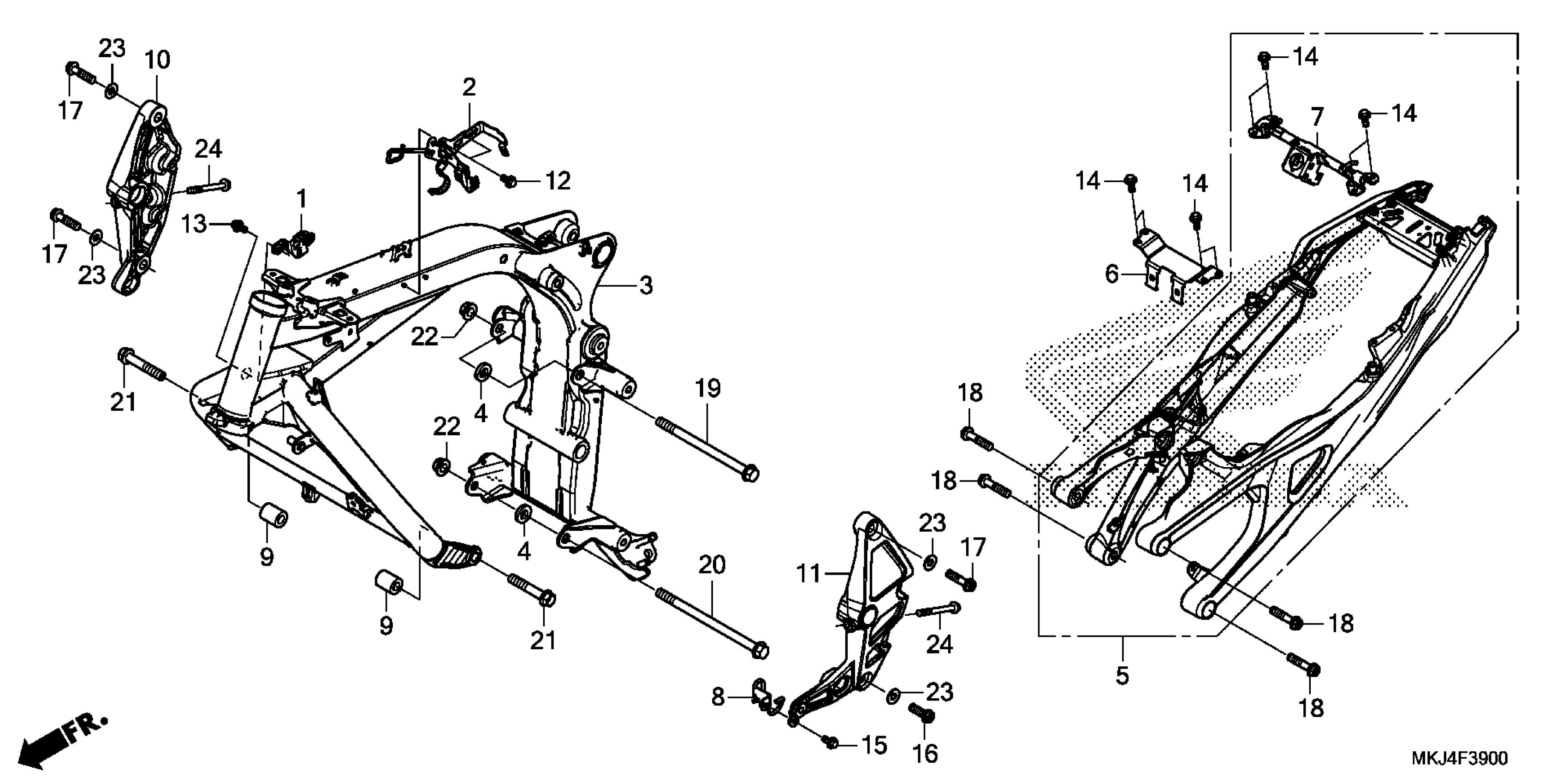

Honda CB1000RAAC (19) MOTORCYCLE, JPN, VIN# JH2SC801-KK100001 TO JH2SC801-KK199999 FRAME Diagram

#

Description
Price

1

STAY, R. CONNECTOR

32125-MKJ-D00

$6.96

2

STAY, CONNECTOR

32206-MKJ-D00

$19.47

3

FRAME *NHA86M* (MAT BALLISTIC BLACK)

50100-MKJ-D00ZA

$1,532.81

4

COLLAR, ENGINE HANGER

50192-MFN-D00

$5.91

5

RAIL ASSY., SEAT *NHA86M* (MAT BALLISTIC BLACK)

50200-MKJ-D01ZA

$815.53

6

PLATE, FR. CROSS

50204-MKJ-D00

$9.49

7

PIPE, CENTER CROSS

50206-MKJ-D00

$258.81

8

CLAMP, DRAIN TUBE

50217-MKJ-D00

$7.16

9

COLLAR, FR. ENGINE HANGER

50350-MKJ-D00

$15.99

10

BRACKET, R. PIVOT *NHB38M* (MAT ALTAIR SILVER METALLIC)

50600-MKJ-D00ZB

$113.79

11

BRACKET, L. PIVOT *NHB38M* (MAT ALTAIR SILVER METALLIC)

50700-MKJ-D00ZB

$113.79

12

BOLT, FLANGE (6X10)

90020-GHB-610

$1.96

13

BOLT, FLANGE (6X10)

90030-GHB-610

$1.96

14

BOLT, FLANGE (6X12)

90031-GHB-620

$2.09

15

BOLT, FLANGE (6X12)

90032-GHB-620

$2.15

16

BOLT, FLANGE (10X30)

90042-GHB-700

$2.82

17

BOLT, FLANGE (10X40)

90042-GHB-740

$3.10

18

BOLT, FLANGE (10X45)

90042-GHB-750

$3.35

19

BOLT, FLANGE (12X182)

90103-MKJ-D00

$15.47

20

BOLT, FLANGE (12X203)

90104-MKJ-D00

$16.49

21

BOLT, FLANGE (12X70)

90162-MKJ-D00

$11.82

22

NUT, FLANGE (12MM)

94050-12070

$1.25

23

WASHER, PLAIN (10.5X22X1.6)

94101-10800

$1.74

24

BOLT, FLANGE (8X75)

90035-GHB-810

$3.41
