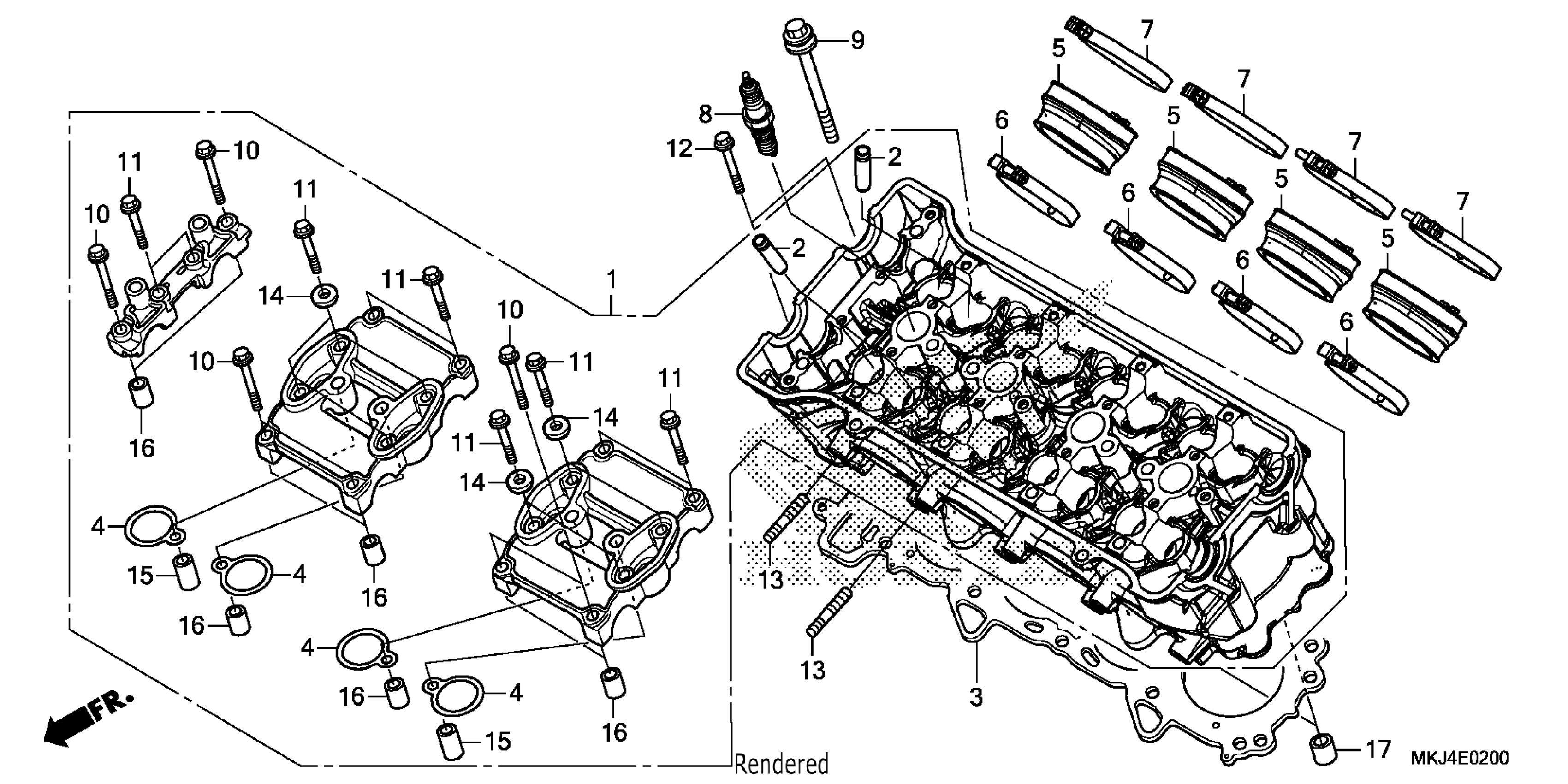

Honda CB1000RAAC (19) MOTORCYCLE, JPN, VIN# JH2SC801-KK100001 TO JH2SC801-KK199999 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY.

12010-MKJ-D00

$1,594.54

GUIDE, VALVE (OVER SIZE)

12204-MEL-305

$14.88

GASKET, CYLINDER HEAD

12251-MEL-D21

$74.04

GASKET, PLUG HOLE

12395-MCJ-000

$4.73

INSULATOR, THROTTLE BODY

16211-MKJ-D00

$19.59

BAND, INSULATOR

16217-MKJ-D00

$5.25

BAND, INSULATOR

16218-MKJ-D00

$7.71

SPARK PLUG (IMR9E-9HES) (NGK)

31912-MFL-003

$16.38

SPARK PLUG (VUH27ES) (DENSO)

31922-MEL-003

$29.27

BOLT-WASHER (9X105)

90007-MEL-003

$4.53

BOLT, FLANGE (6X45.5)

90017-MA6-000

$3.19

BOLT, FLANGE (6X39.5)

90019-MA6-000

$2.80

BOLT, FLANGE (6X45)

90027-GHB-750

$2.62

BOLT, STUD (8X24)

90035-MM5-000

$4.88

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

PIN, DOWEL (8X24)

90701-MG3-000

$3.51

PIN, DOWEL (8X20) (Honda Code 1417369)

94301-08200

$2.62

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.80
